Process Kitchen, Jacketed, Vacuum, Multi Motion Mixing Kettles, Pumps and Mezzanine- BULK LOT

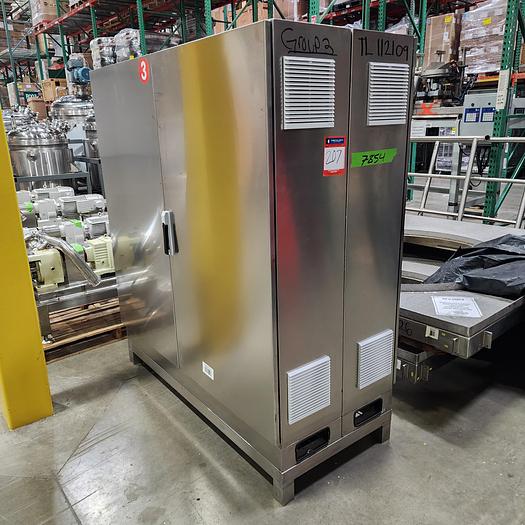

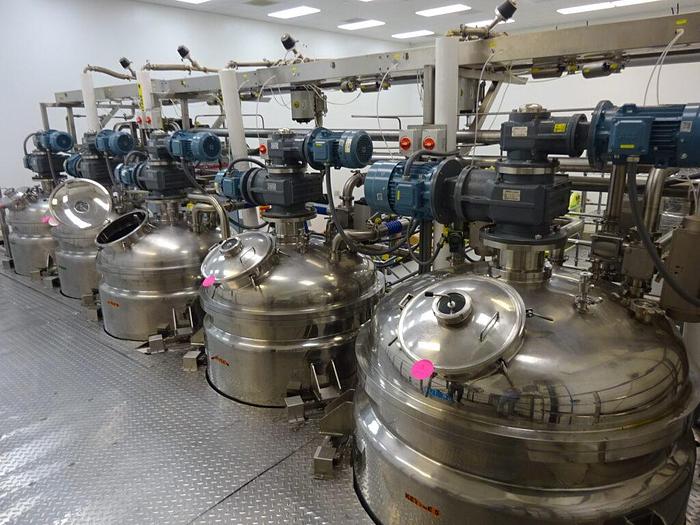

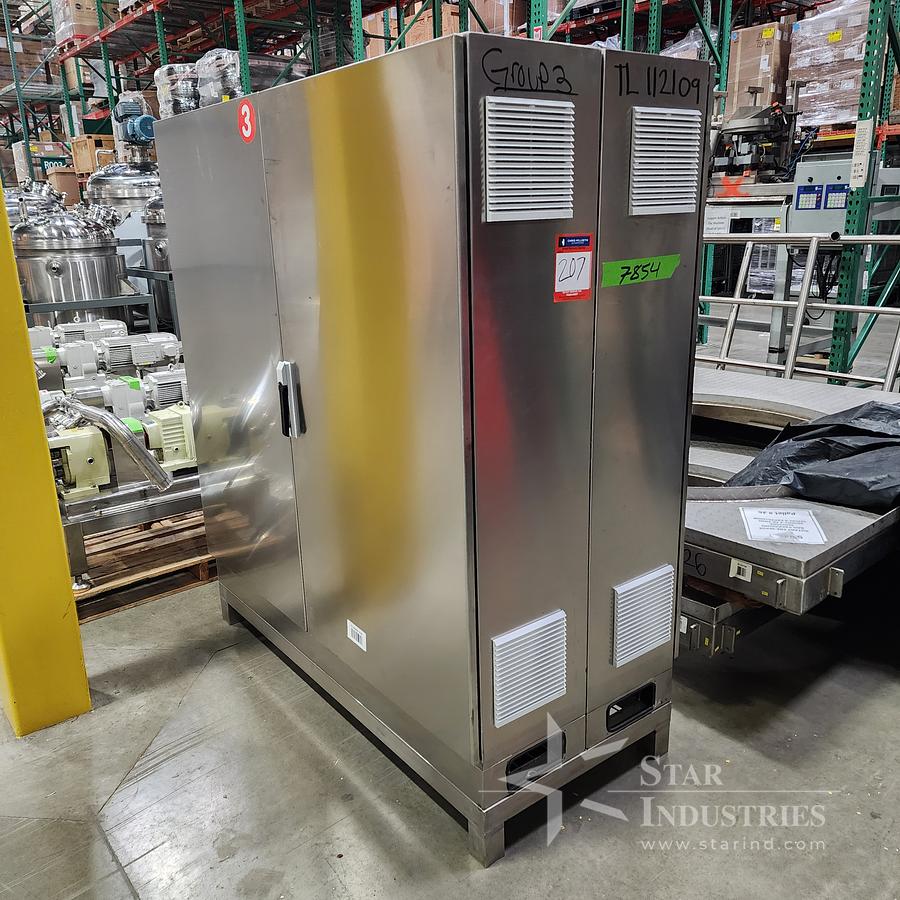

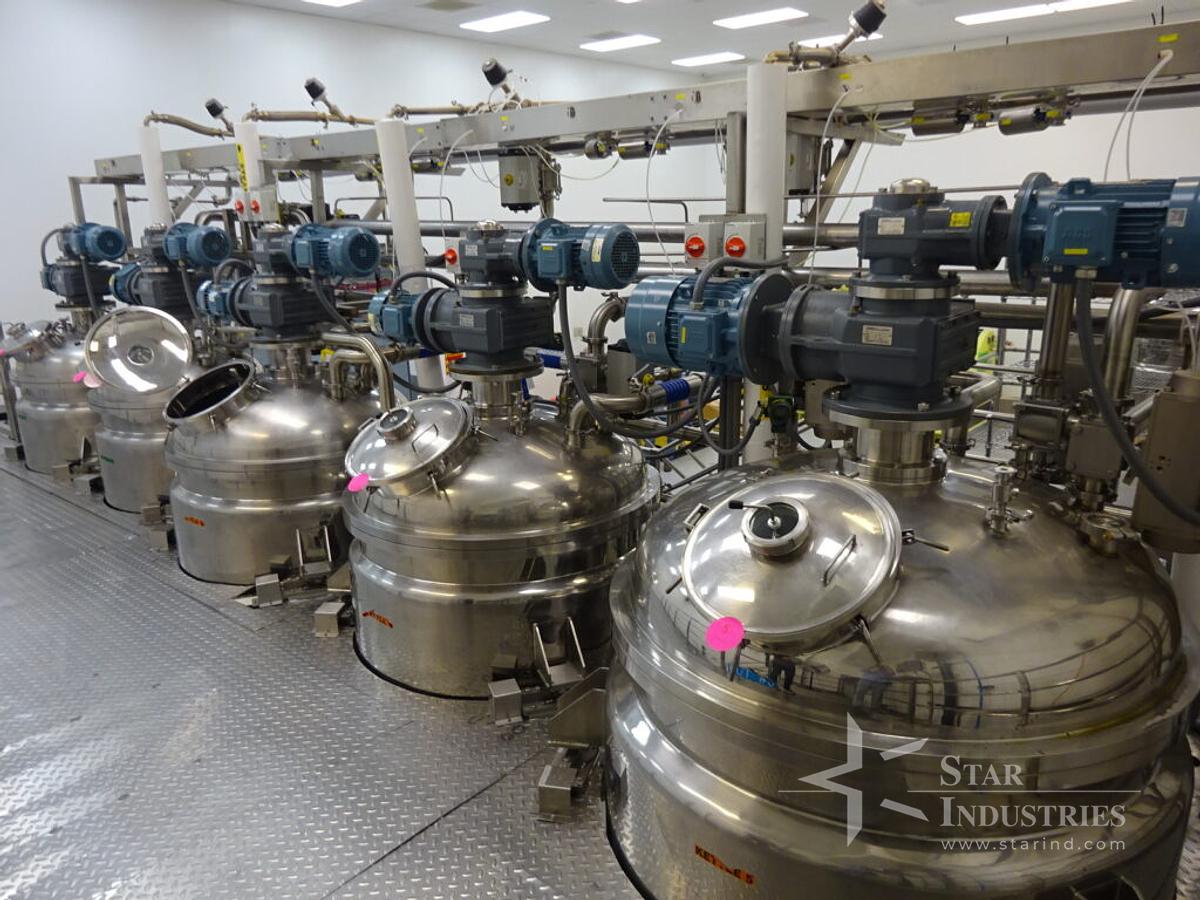

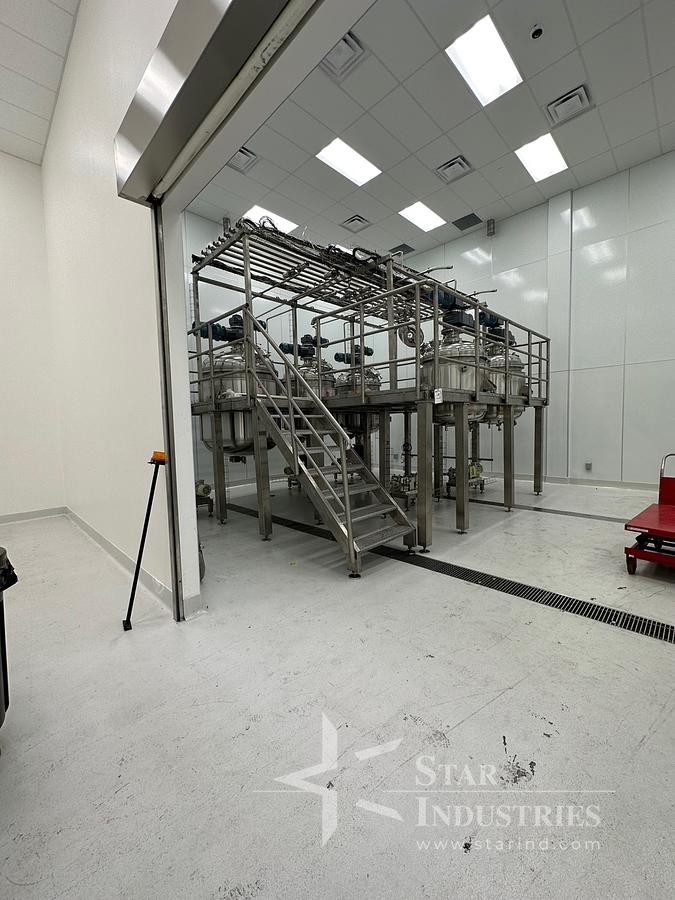

NEW - BULK LOT - Group 3 Process Kitchen, with Mezzanine for 5 SS, Vacuum, Jacketed Multi Motion Mixing kettle, positive displacement pumps, control panel and sanitary pipping system This suite includes five mixing tanks, a mezzanine, two pump systems, Hand rails for mezzanine and homogenizer mixing drives for kettles.

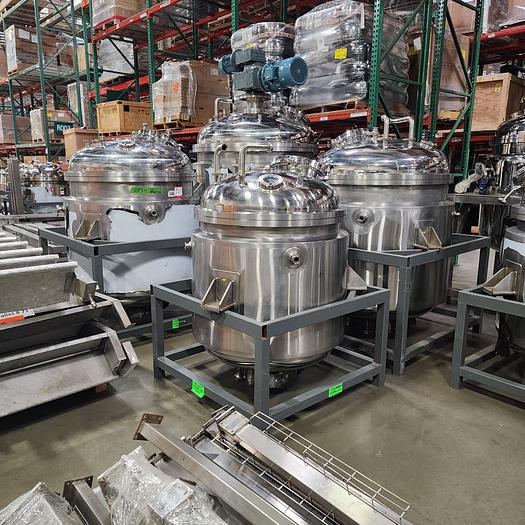

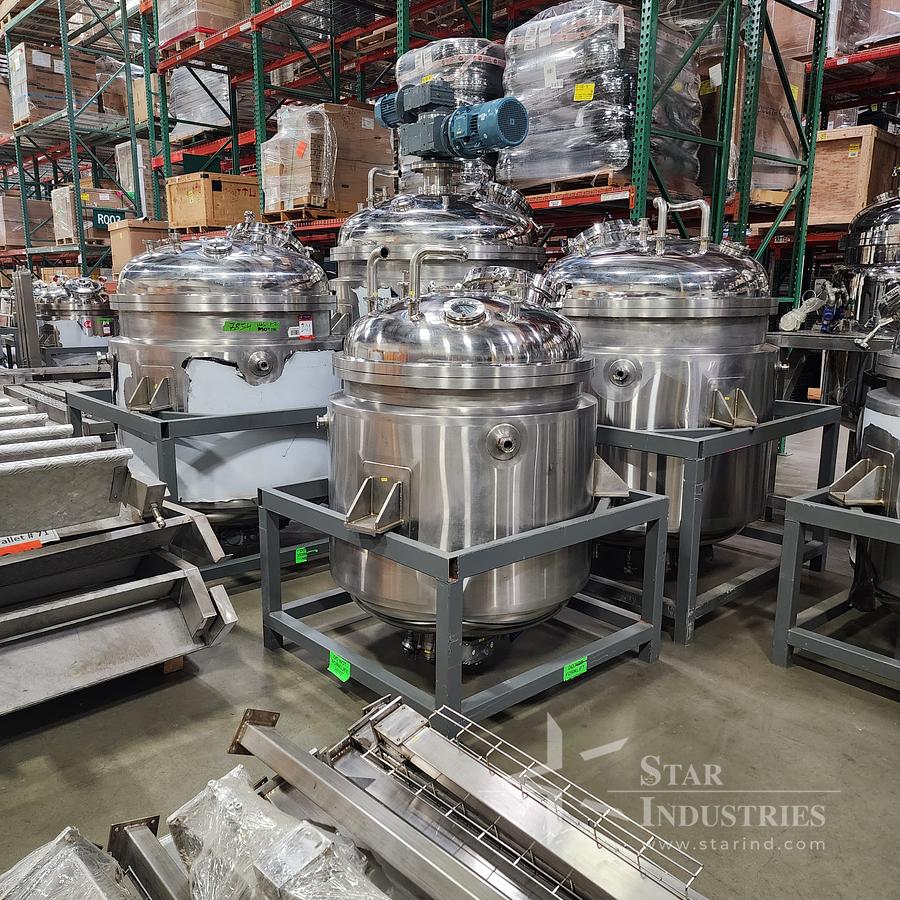

One Large kettle: 1500 Liter, SS, Fully Jacketed, Vacuum, Dual Motion Mixing Kettle

Features: 3” jacket 2” bottom valve port with Flow meter

Dimensions

Outer sleeve Diameter 56 inches

Manhole 15” diameter

Kettle inside depth 60”

Kettle inside diameter 51”

Two Medium Kettles: 1000 Liter SS Fully Jacketed Vacuum Triple Motion Mixing Kettle Full sweep, dual motion, blade

**No motors or Drives on top** Bottom Port for Homogenizing Motor

Bottom outlet port: 2 inches wide Manhole port, 15 inches in diameter

Diameter of tank: 42 inches

Depth of tank: 50 inches Dish bottom

Homogenizer 1000 SS Fully Jacketed Vacuum Triple Motion Mixing Kettle Full sweep, dual motion, blade **No motors or Drives on top** Bottom Port for Homogenizing Motor

Bottom outlet port: 2 inches wide

Manhole port, 15 inches in diameter

Diameter of tank: 42 inches

Depth of tank: 50 inches Dish bottom

Two Small Tanks: 500 Liter SS Fully Jacketed Vacuum Triple Motion Mixing Kettle **No motors or Drives on top**

With a homogenizer port on the bottom Mixing motor port on top Full sweep blade dual motion

Dimensions of kettle

Diameter of tank: 34 inches

Depth of tank: 40 inches with a dish bottom

500 Liter SS Fully Jacketed Vacuum Triple Motion Mixing Kettle **No motors or Drives on top** With homogenizer port on the bottom Mixing motor port on top Full sweep blade dual motion

Dimensions of kettle

Diameter of tank: 34 inches

Depth of tank: 40 inches with a dish bottom

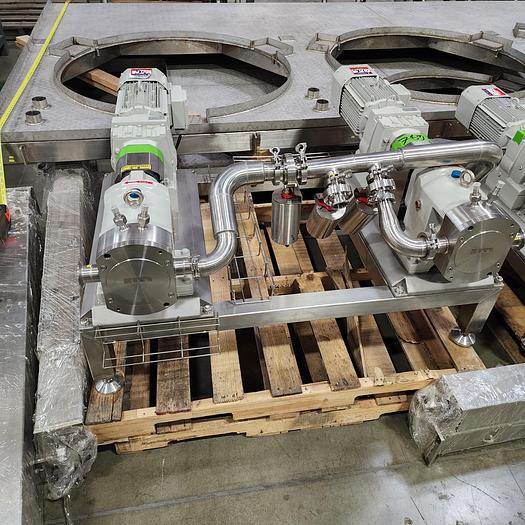

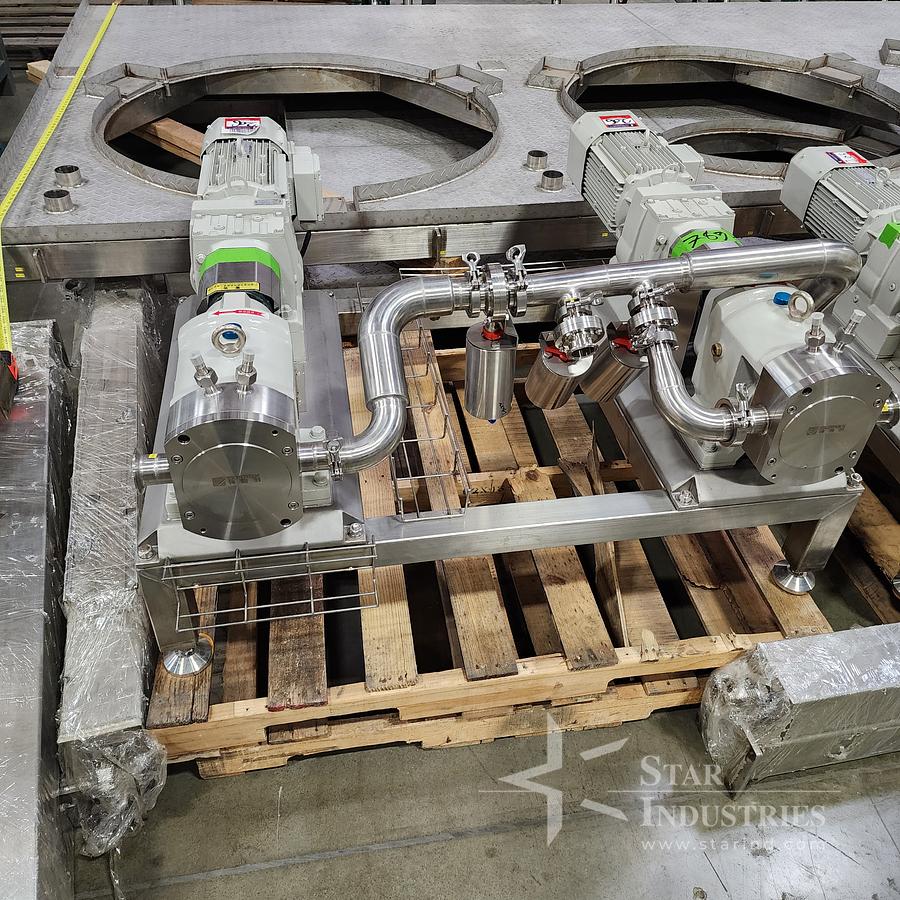

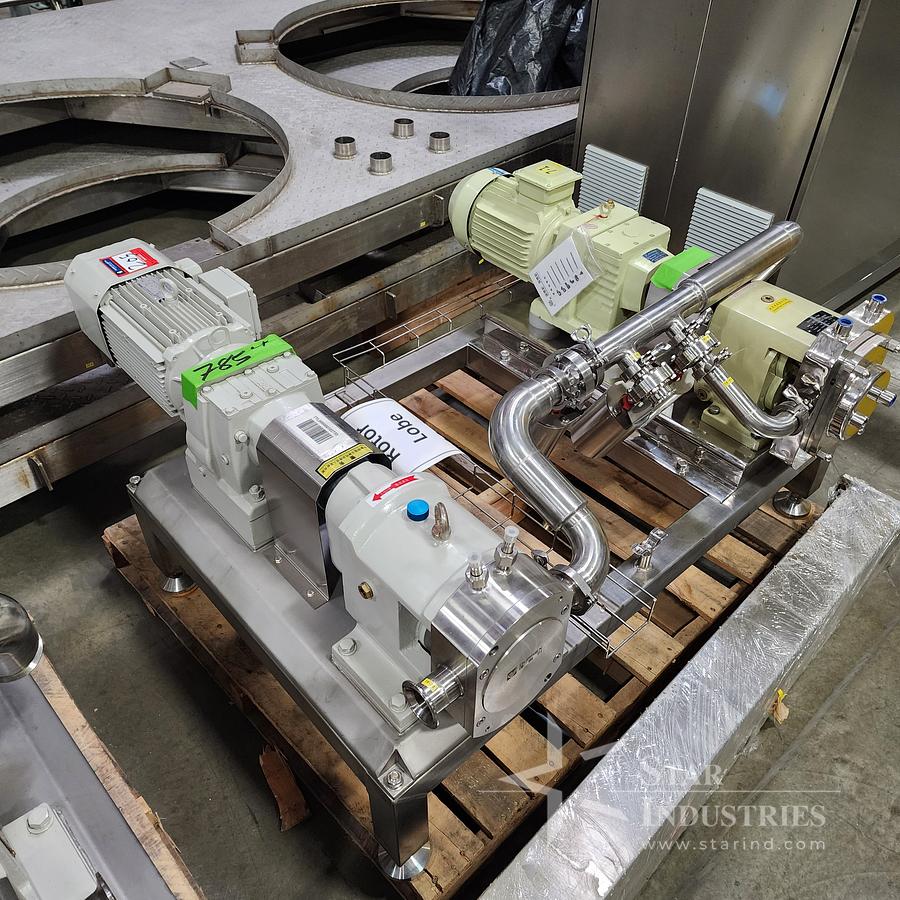

Two Tri- Lobe Pump Systems: Durrex Positive Displacement Pump System Durrex Tri- Lobe

Pump Type: 40TLS4-5C

RPM: 324

Manufacture Date: 2021

Tri-Lobe Pump Yangzhou Lianhe Chemical Machinery Co

Model: ZB3A-20

Speed: 400.5 RPM

Flow: 20L/100R

Durrex Positive Displacement Pump System Durrex Tri- Lobe Pump

Type: 40TLS4-5C

RPM: 324

Manufacture Date: 2021

Tri-Lobe Pump Yangzhou Lianhe Chemical Machinery Co

Model: ZB3A-20

Speed: 400.5

RPM Flow: 20L/100R

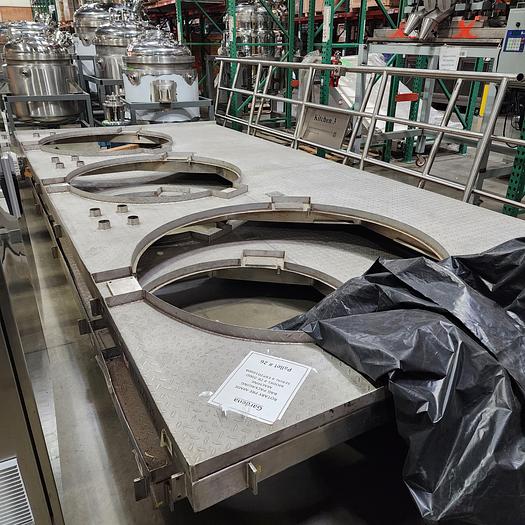

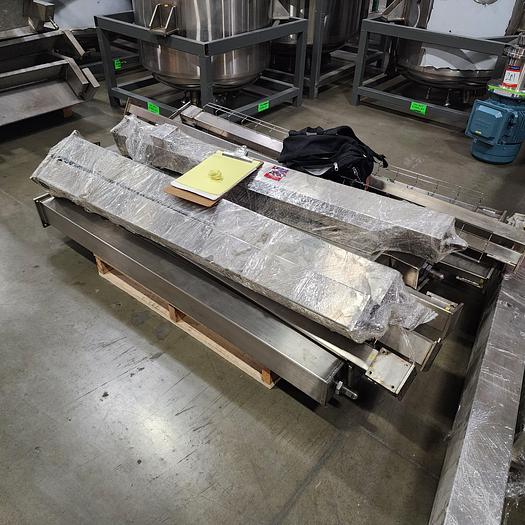

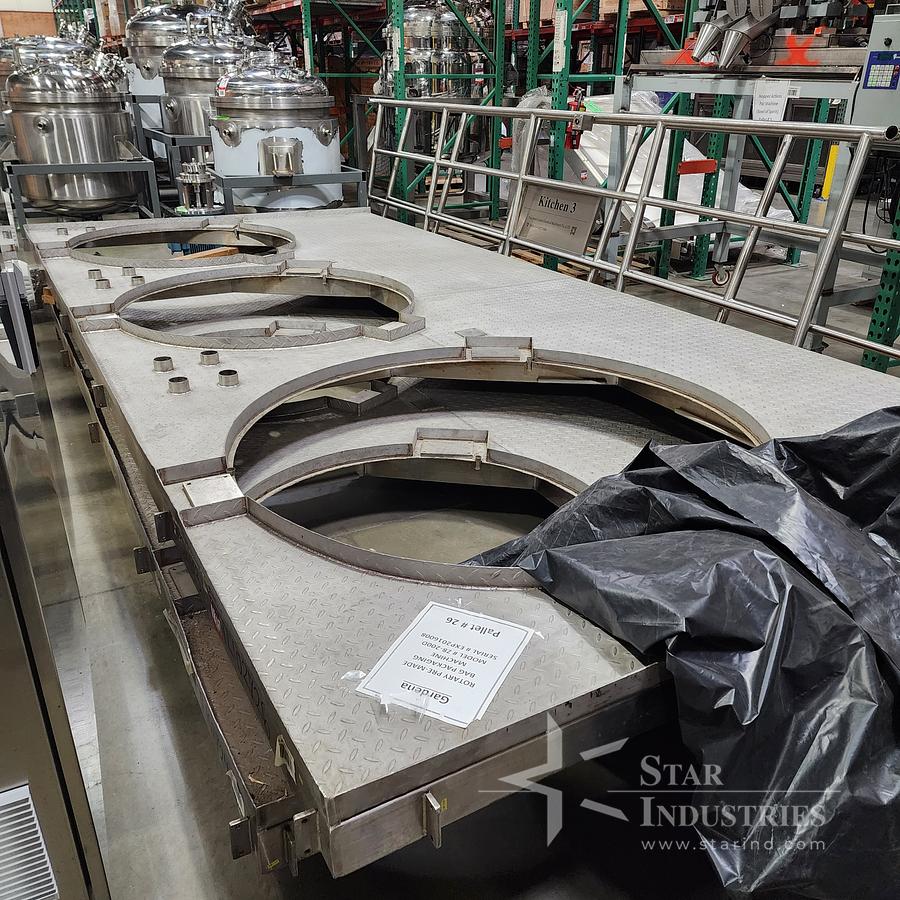

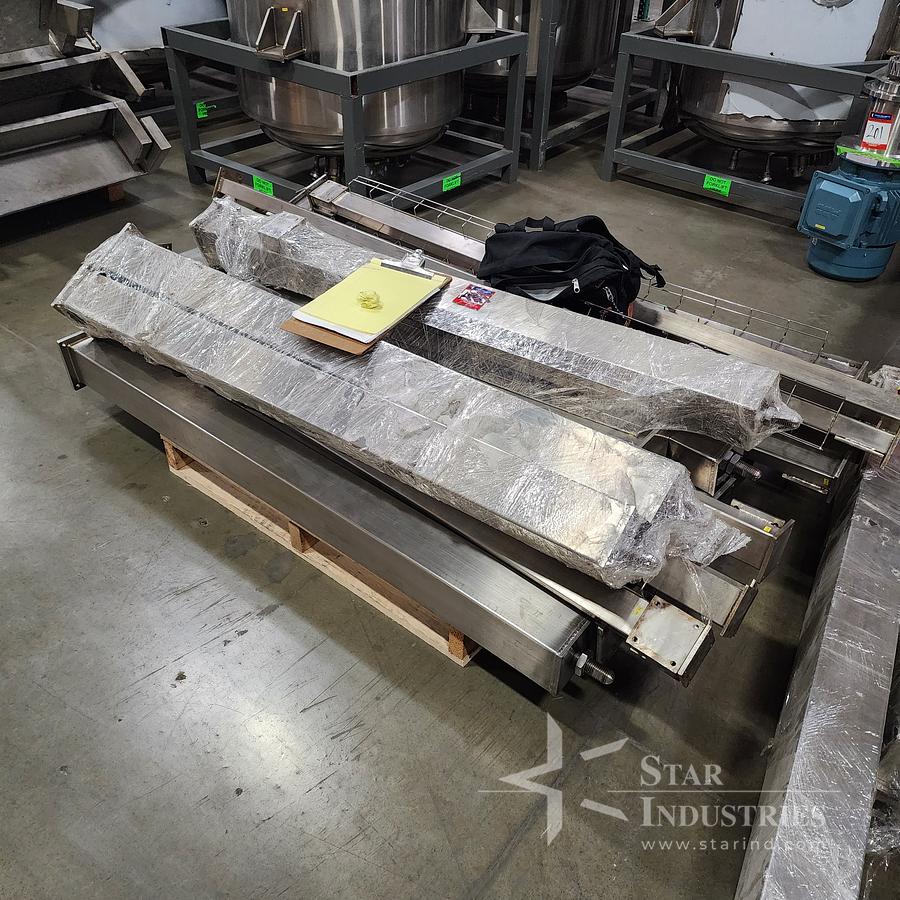

Mezzanine Dimensions: 17' x 22' Sanitary Rack with Tube Connections Features: Air actuators Butterfly valves 25 feet in length Conduit for cabling

Skidding and Load out charges: There will be loading and skidding charges added to your purchase at market rates for your convenience. Location: Los Angeles, CA
