Tank, 1,000-Gallon, Stainless Steel, Jacketed, Walker

Tank, 1,000-Gallon, Stainless Steel, Jacketed, Walker
or
Call 323.588.4141
Description

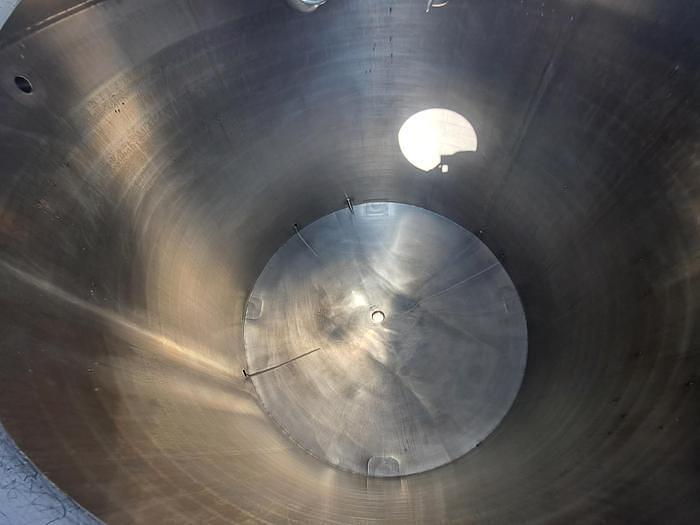

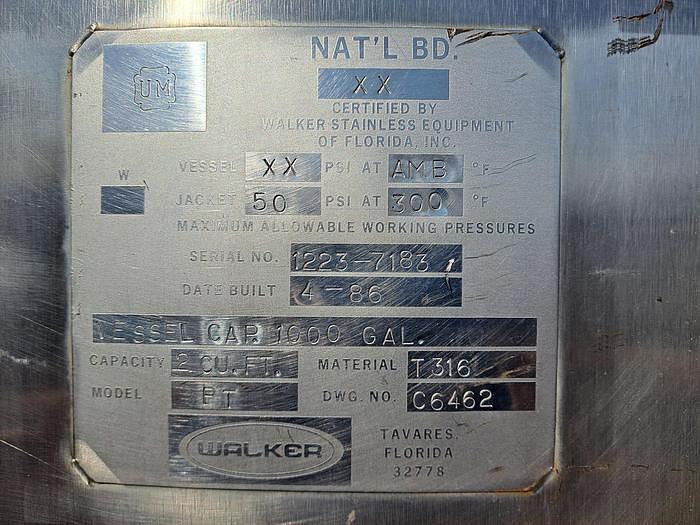

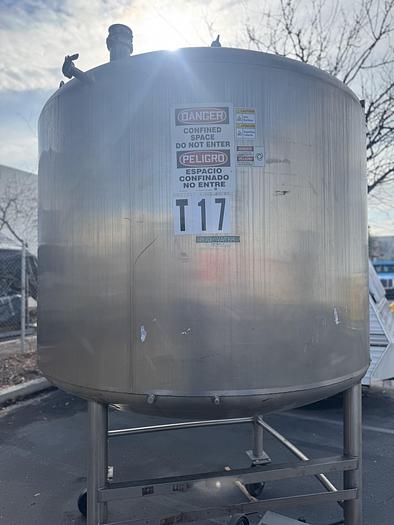

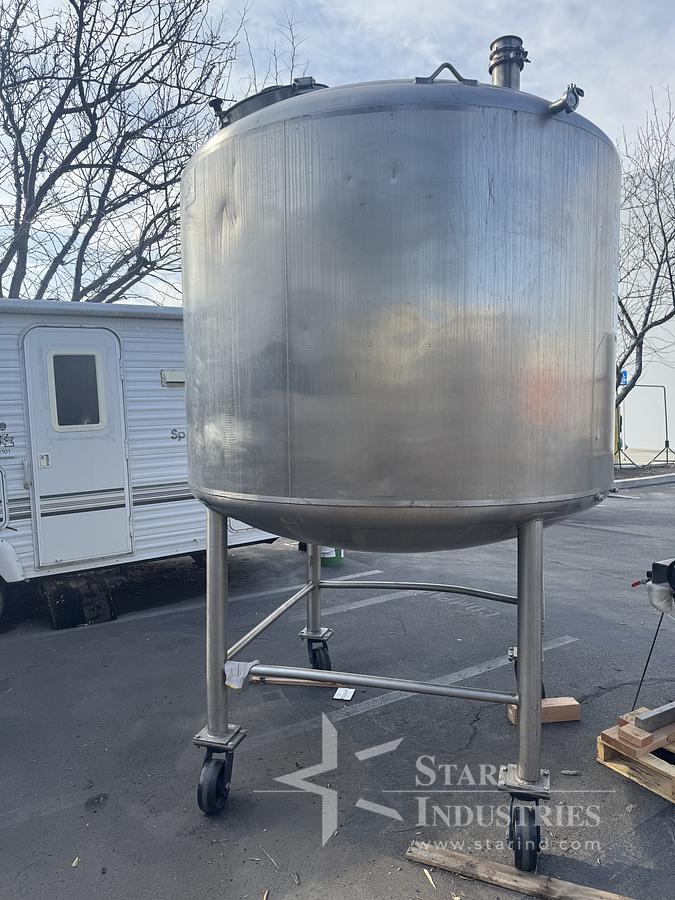

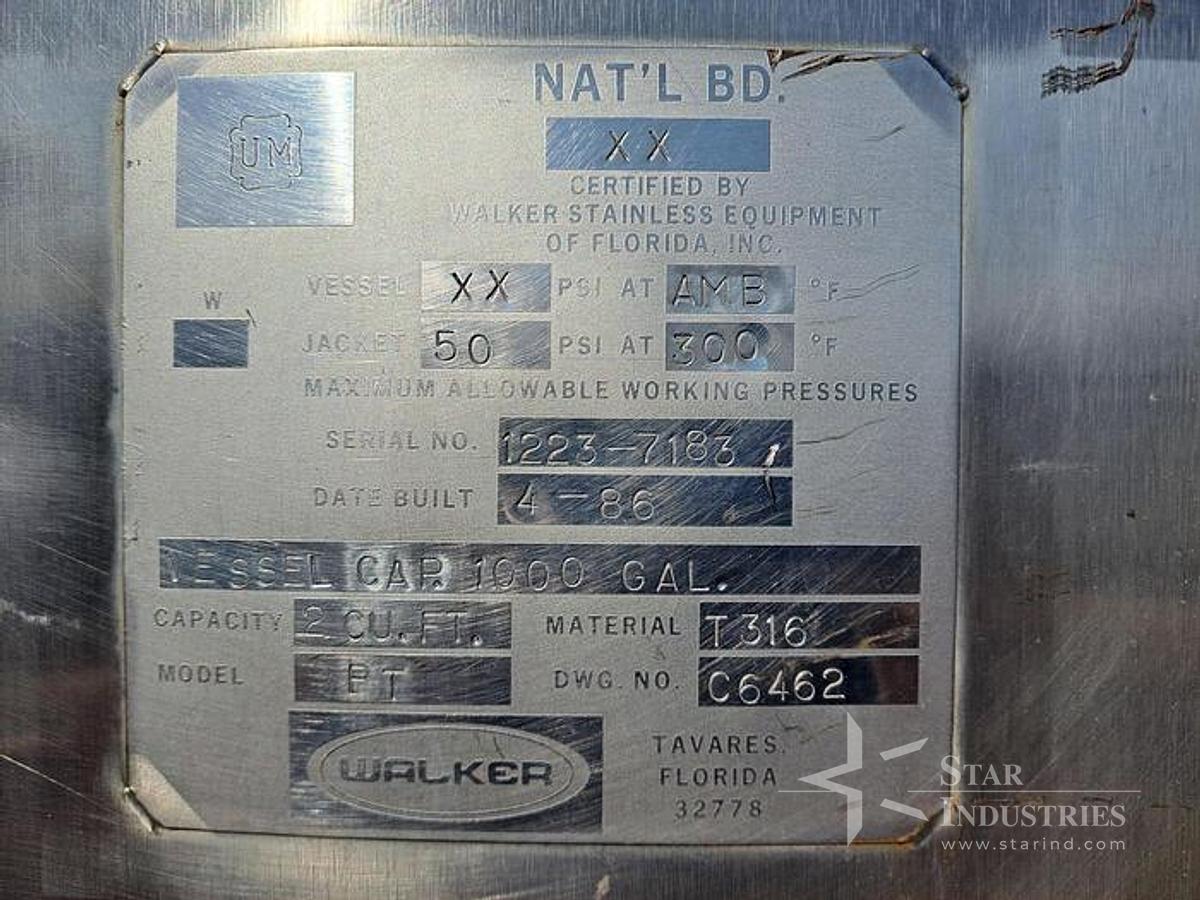

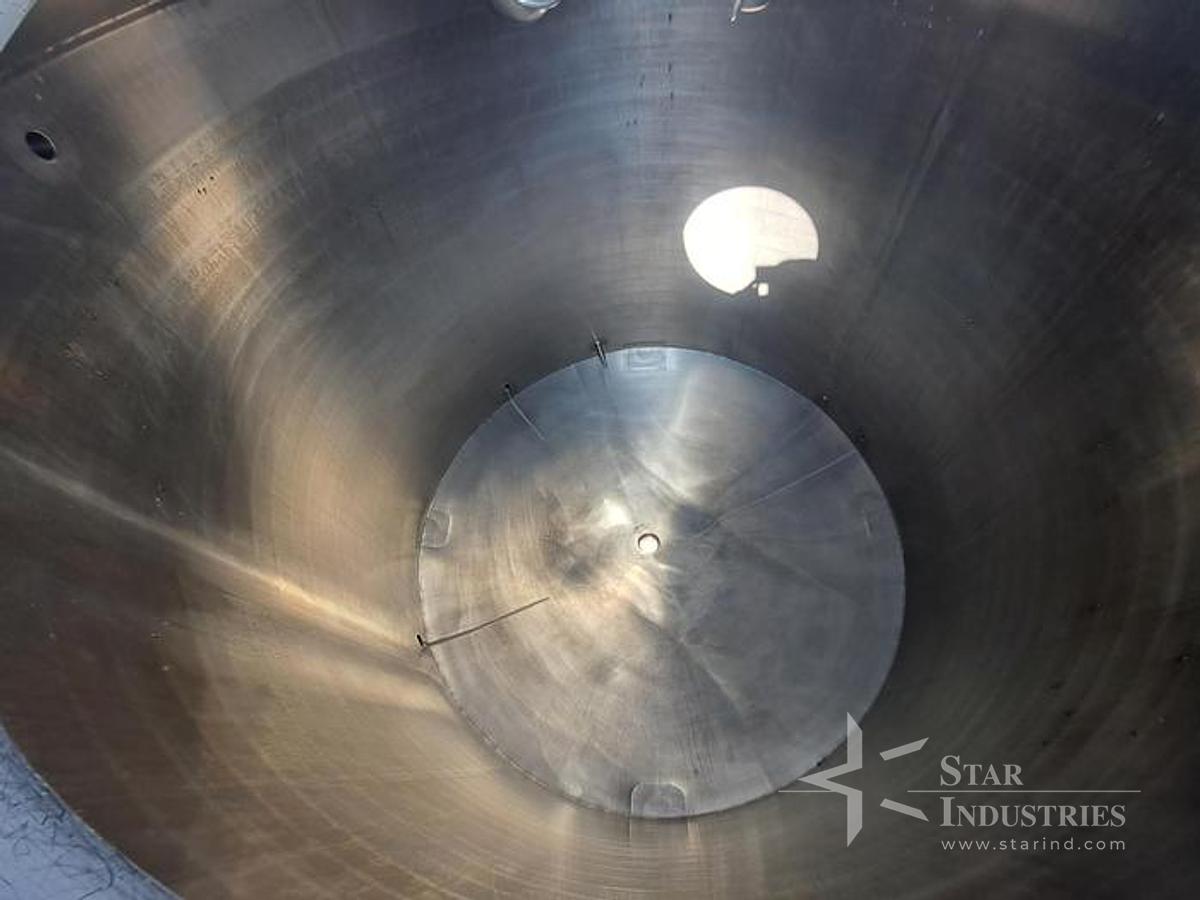

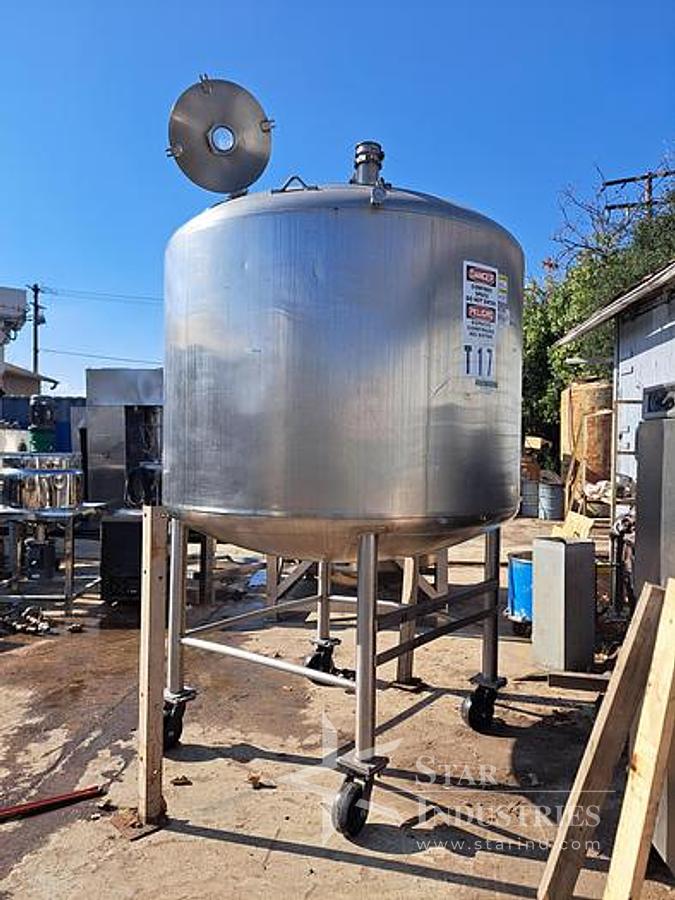

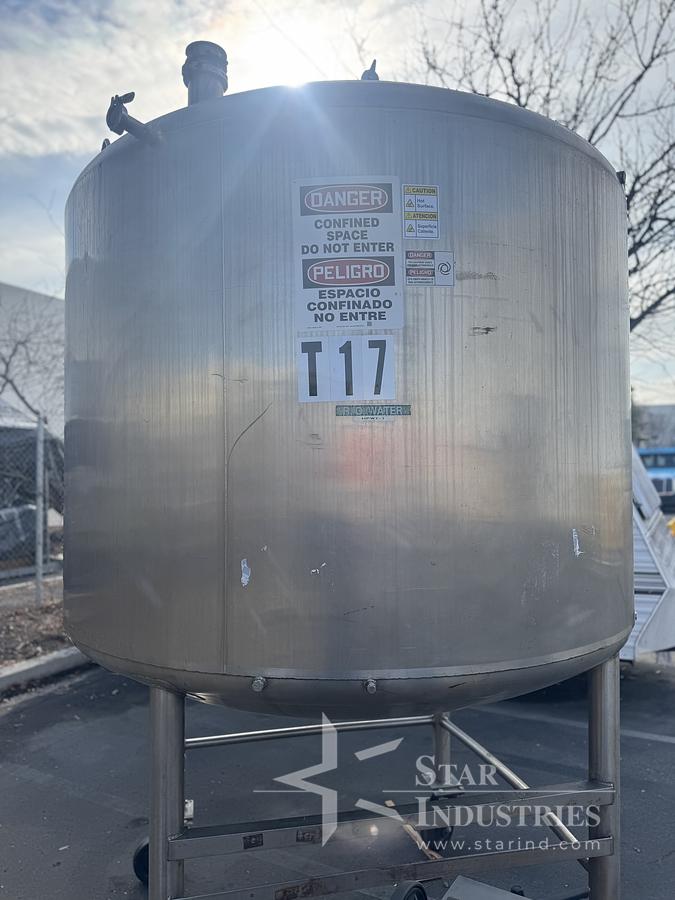

Walker 1,000-gallon vertical 316 stainless steel tank, fully jacketed with dish top and dish bottom. Tank is 72" diameter X 60" straight side. Top features an 18-1/2" manway with top ports (2) 1-1/2", (2) 2", and (2) 4". Jacket rated for 50 PSI @ 300°F. Built in 4-86, model PT. Includes spray balls and a 3" diameter bottom center discharge. Thickness: 1.5mm/0.059 inches. Portable on casters. Last used in cosmetics industry.
Specifications
| Condition | Used |
| Inventory # | 12814 |
| Manufacturer | Walker |
| Gallons | 1,000 |
| Dimensions | 72'' diameter x 60'' straight side |
| Material of Construction | 316 Stainless Steel |
| Motor | 3 HP, 230/460V, 1760RPM, 3PH, 60Hz |
| Discharge | 3'' diameter bottom center discharge |
| Jacket Rating | 50 PSI @ 300 F |
