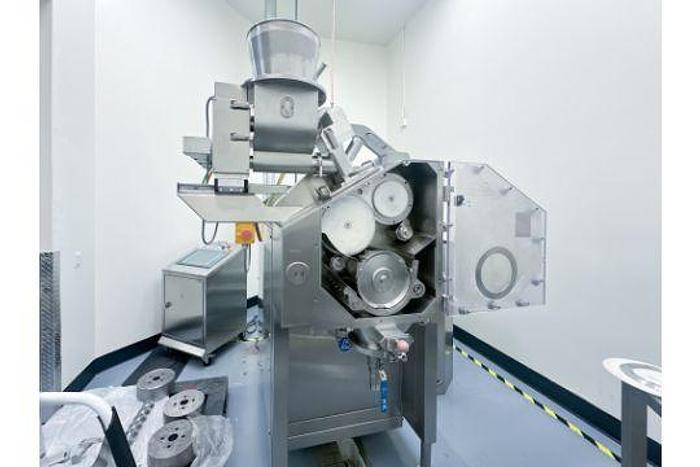

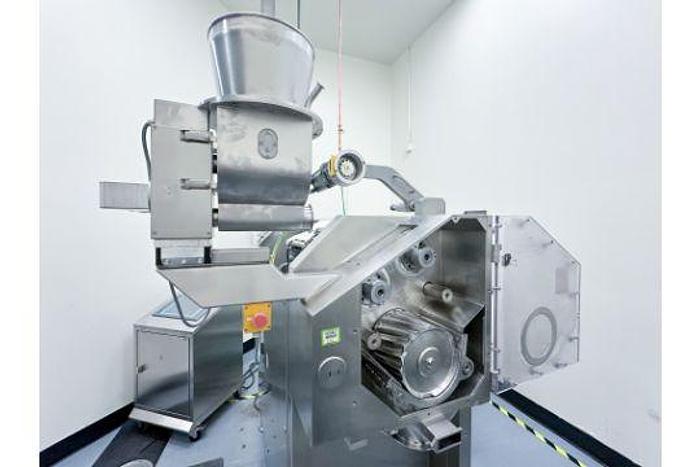

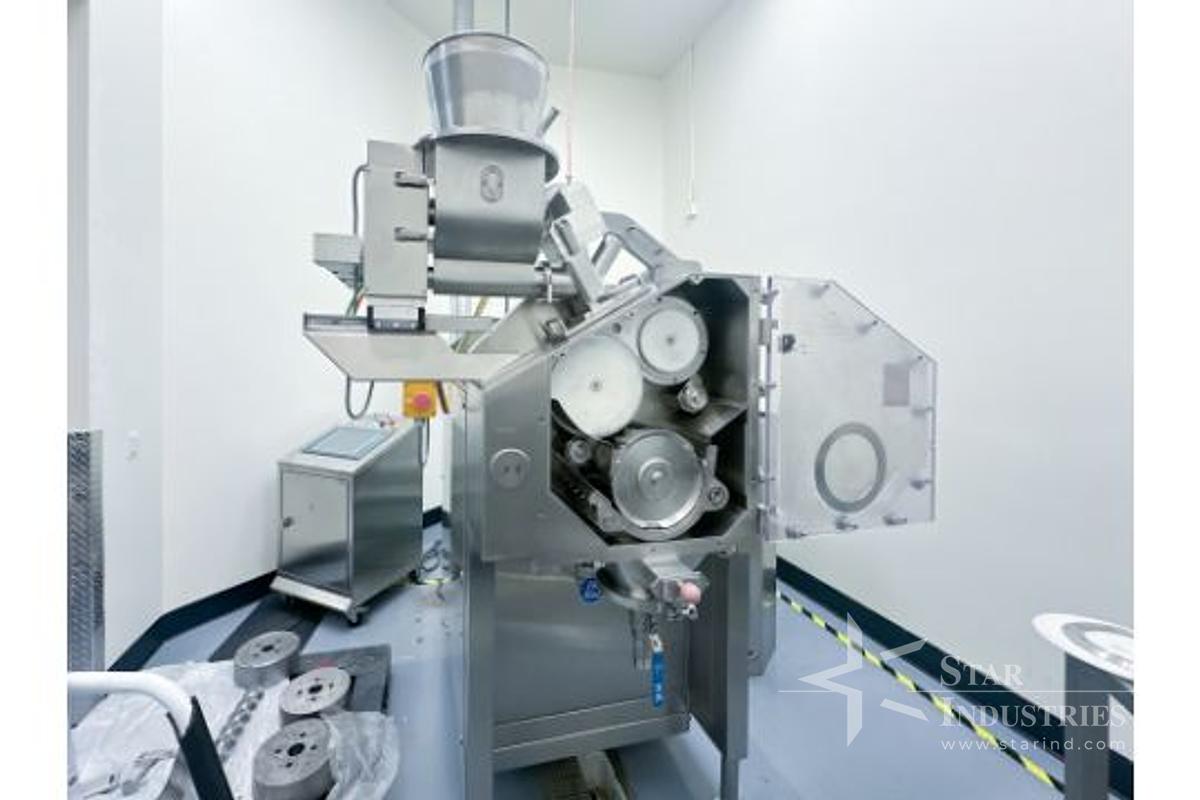

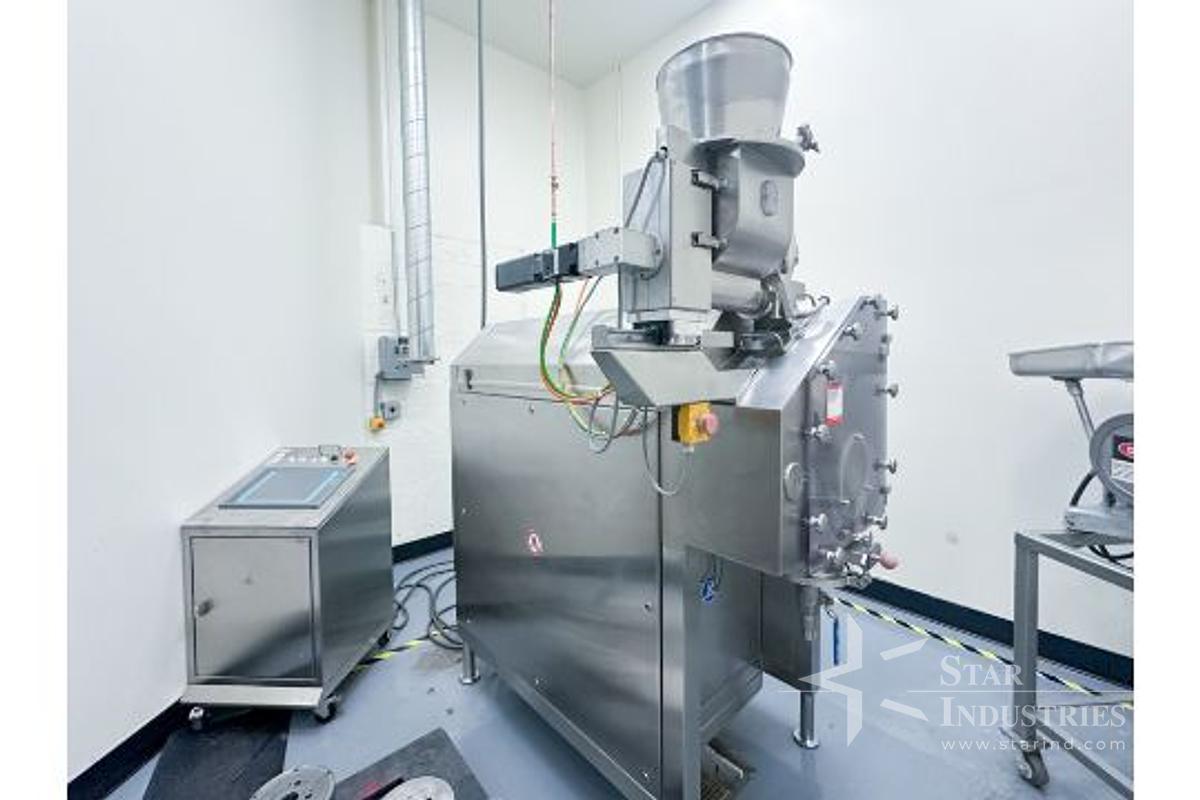

Gerteis Roller Compactor, 480/60/3

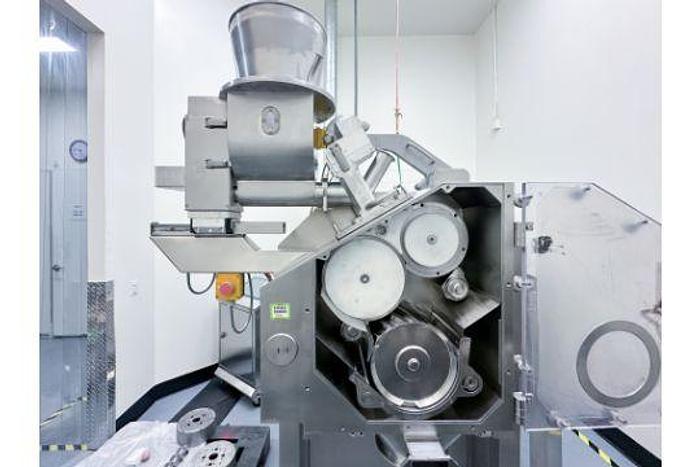

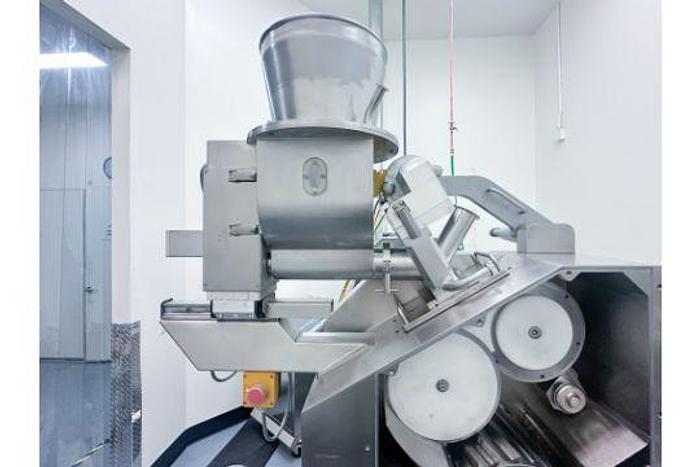

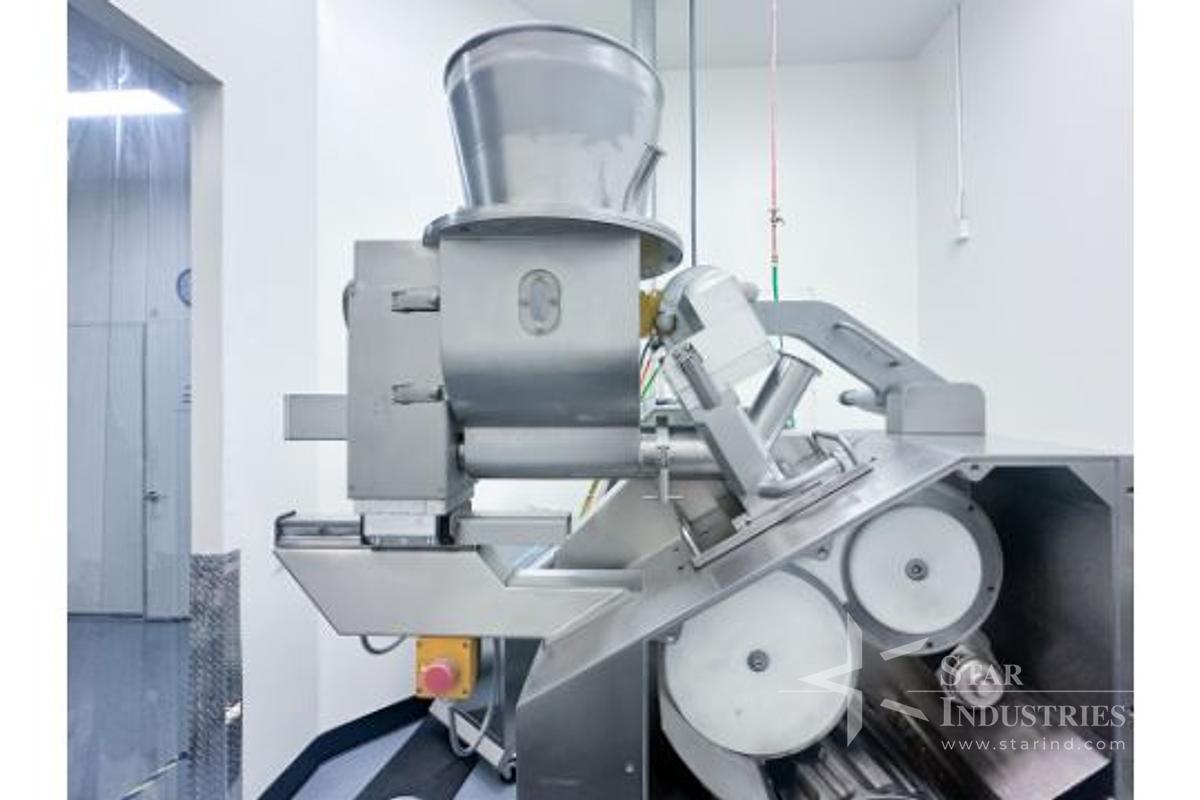

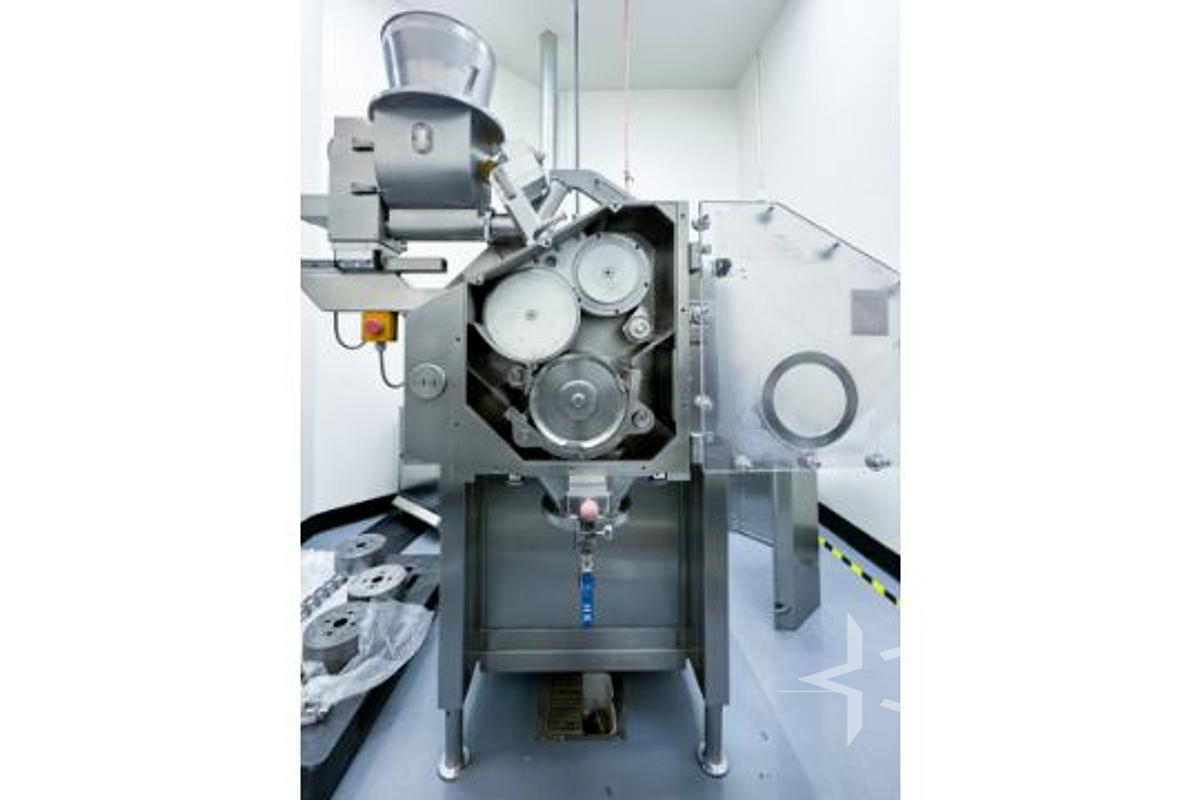

1- GERTEIS POLYGRAN 250/100/3 Roller Compactor

Gerteis Model: Roller Compactor

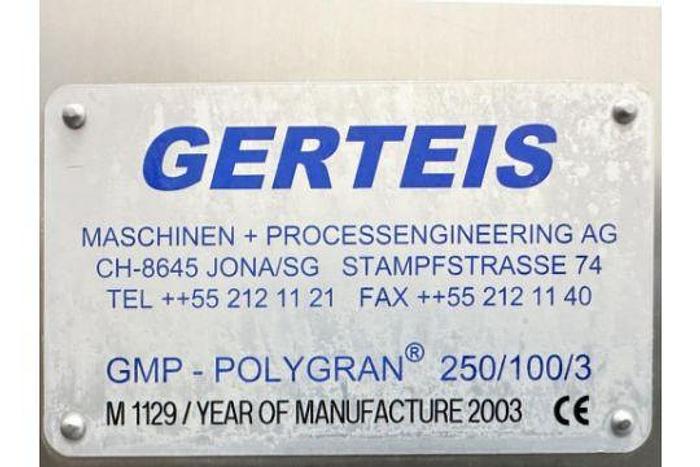

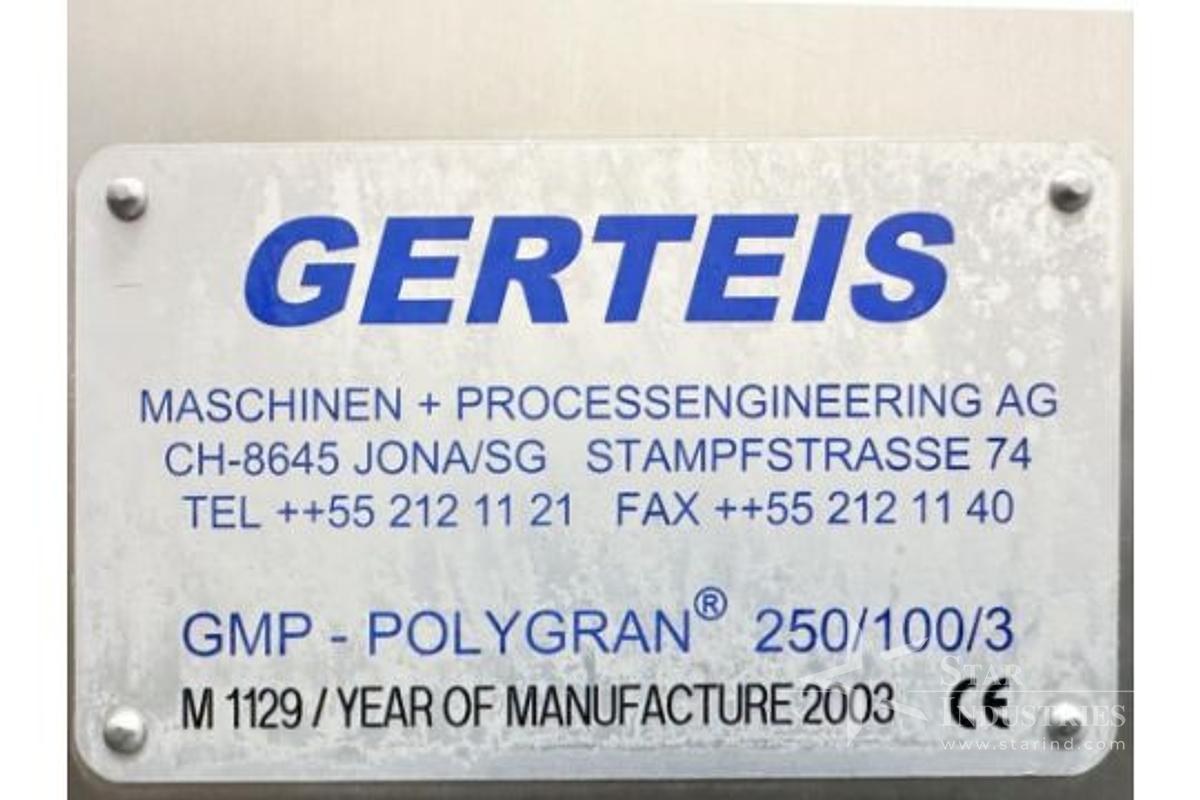

Model: POLYGRAN 250/100/3

Voltage: 3x400v-480v

Current: 25A

Phase: 3

Date of manufacture: 2003

M1129

Direction: Clockwise

Throughputmax. 300 kg/h

Press Force1 - 15 kN/cm

Roller Speed2 - 20 rpm

Gap2 - 5 mm

Weight1200 kg

Operating Hours: 00000

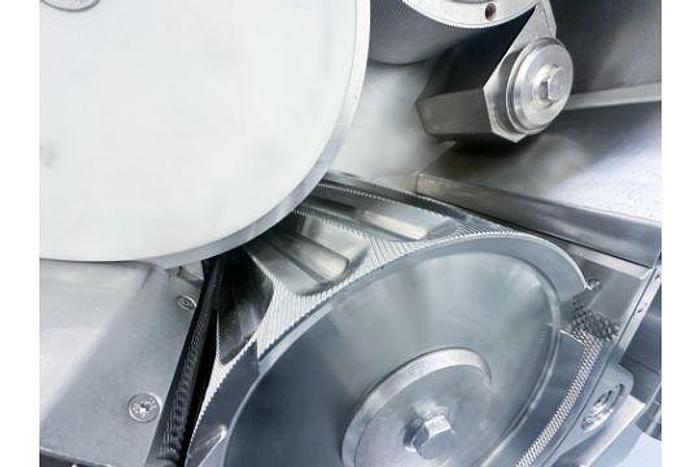

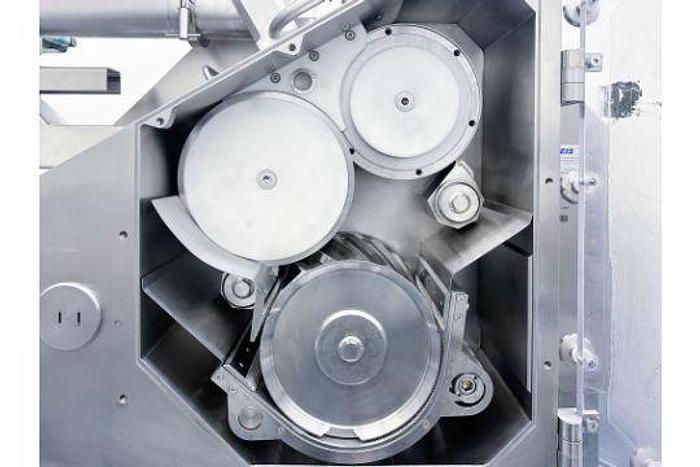

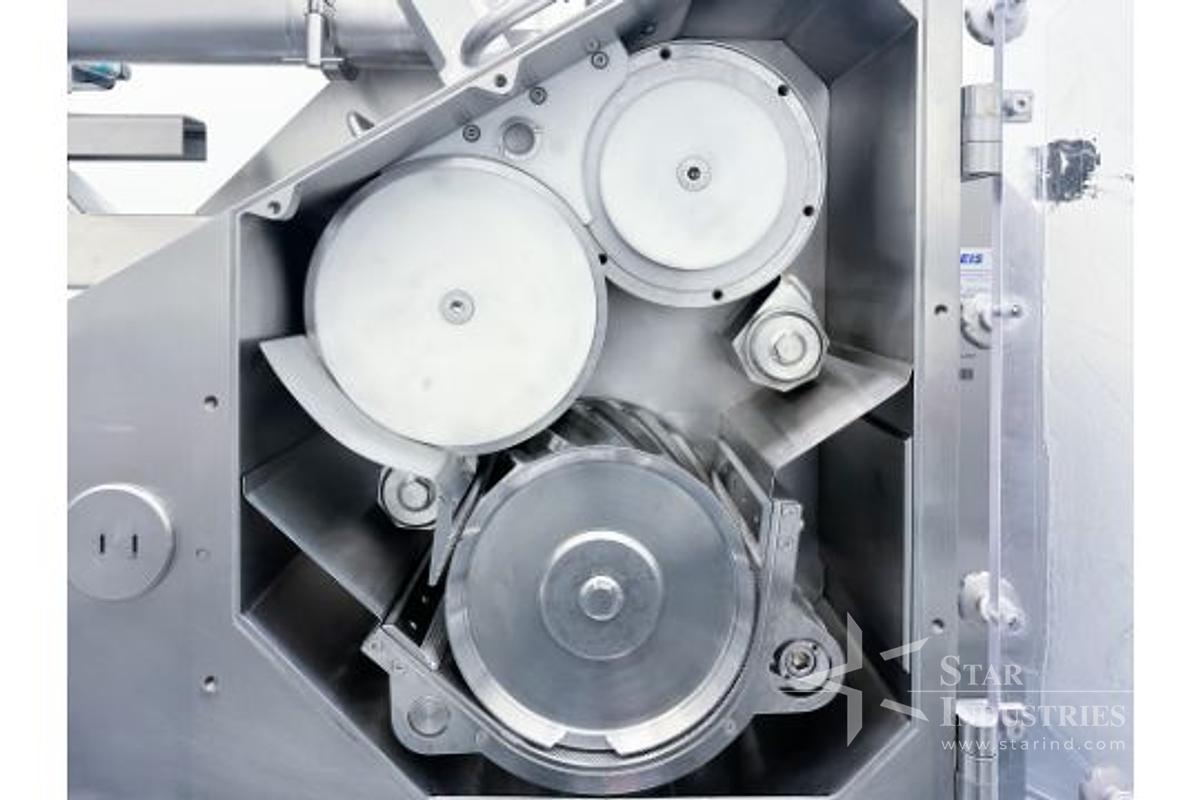

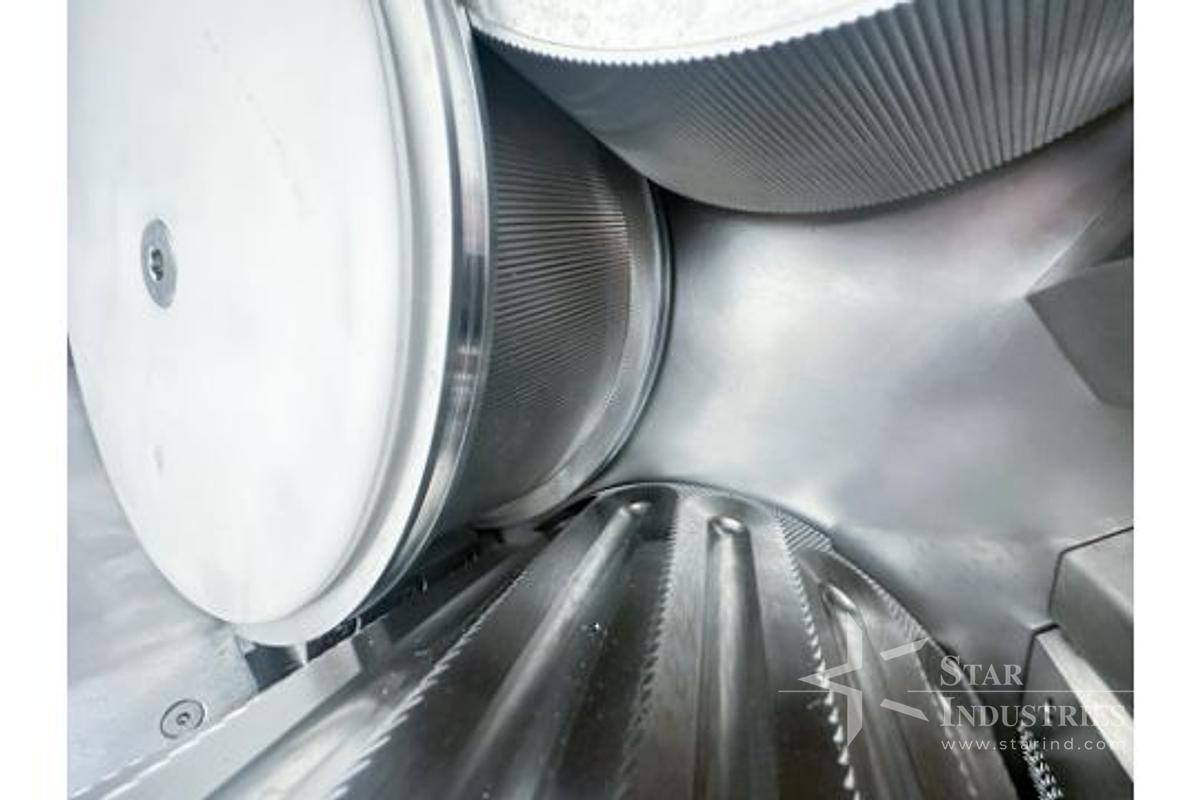

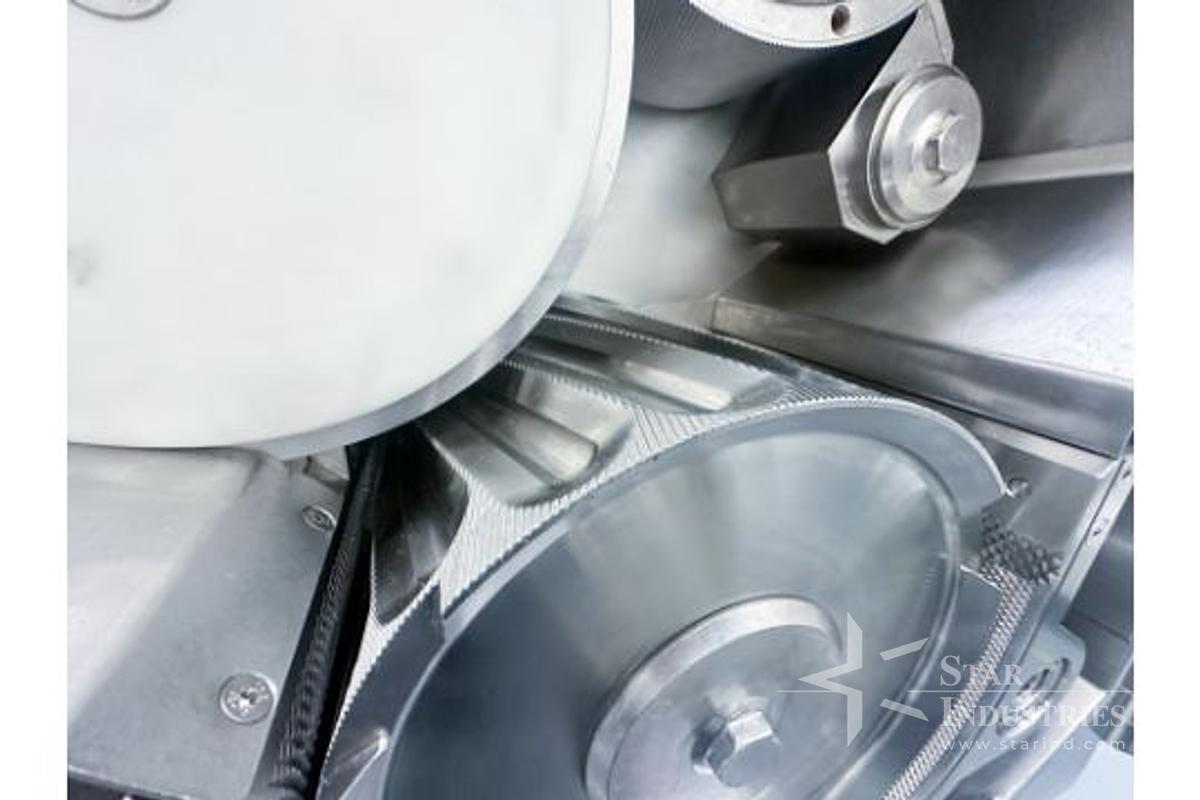

Roller Width: 100mm

Roller Diameter: 250mm

Granualtor: yes

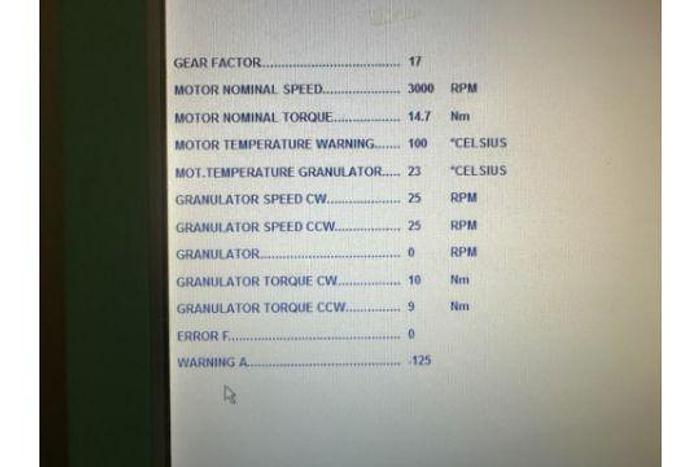

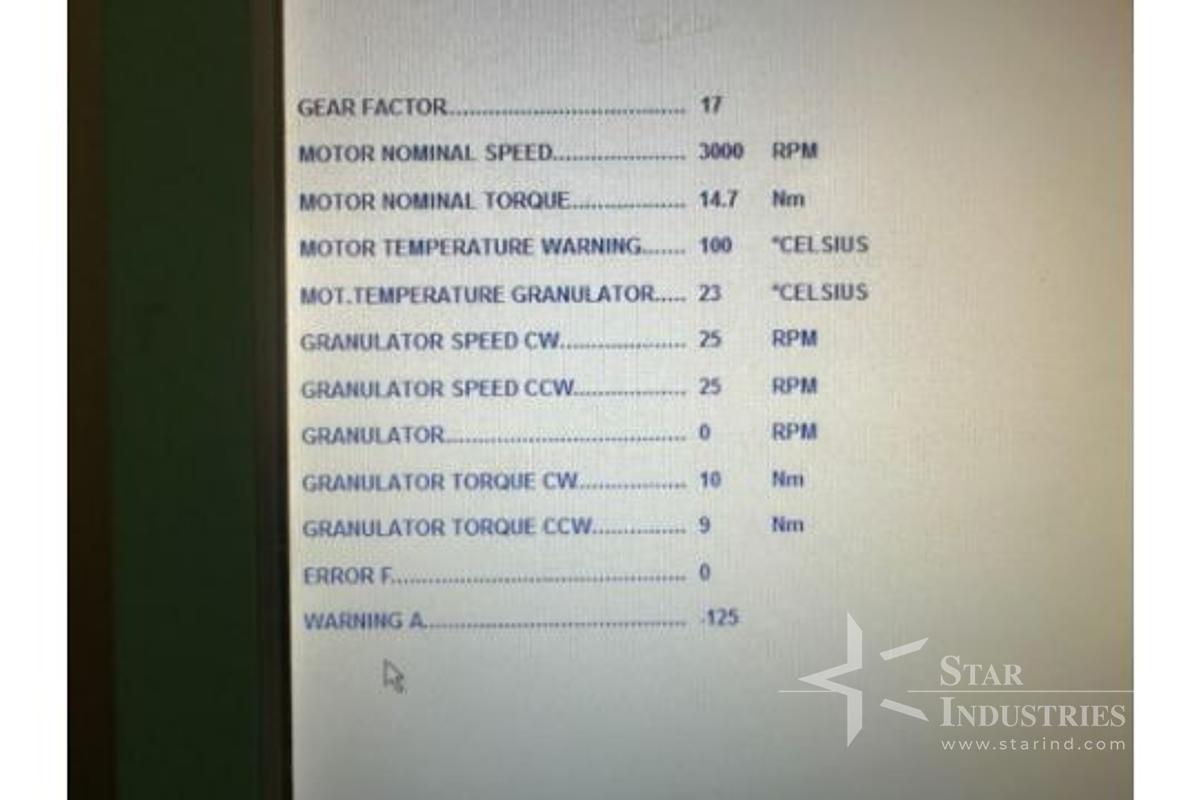

Factory Setting Hydraulic Drive:

Hydraulic Motor Nominal Speed: 3000 RPM

Motor Temperature Warning: 100 Celsius

Tempurature Hydraulic Motor: 35 Celsius

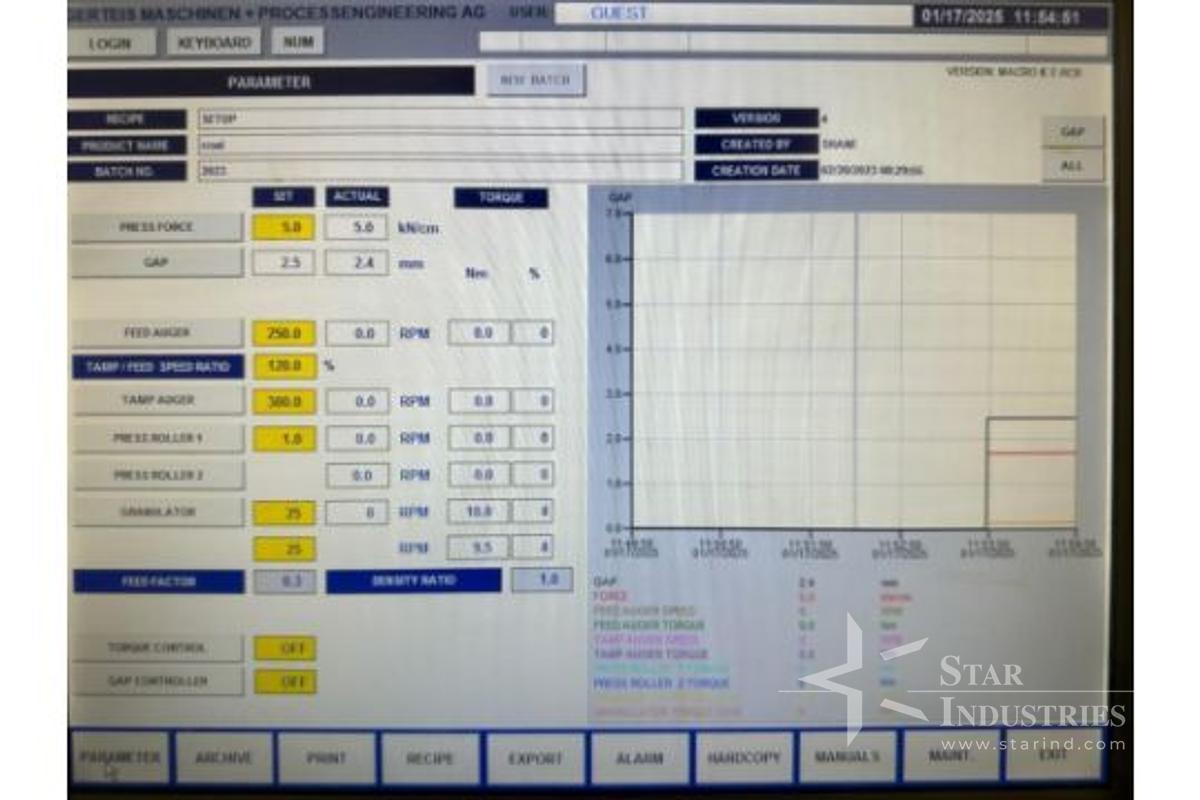

Press Force: 5.0 Kn/CM

Actual Value Press Force 5.0 Kn/cm

Hydraulic Pressure: 83.5 bar

Valve test set value: 6000

Valve test position: 1537

Speed set value: 1000 RPM

Speed Actual Value: 997 RPM

Torque Actual Value: 1 NM
