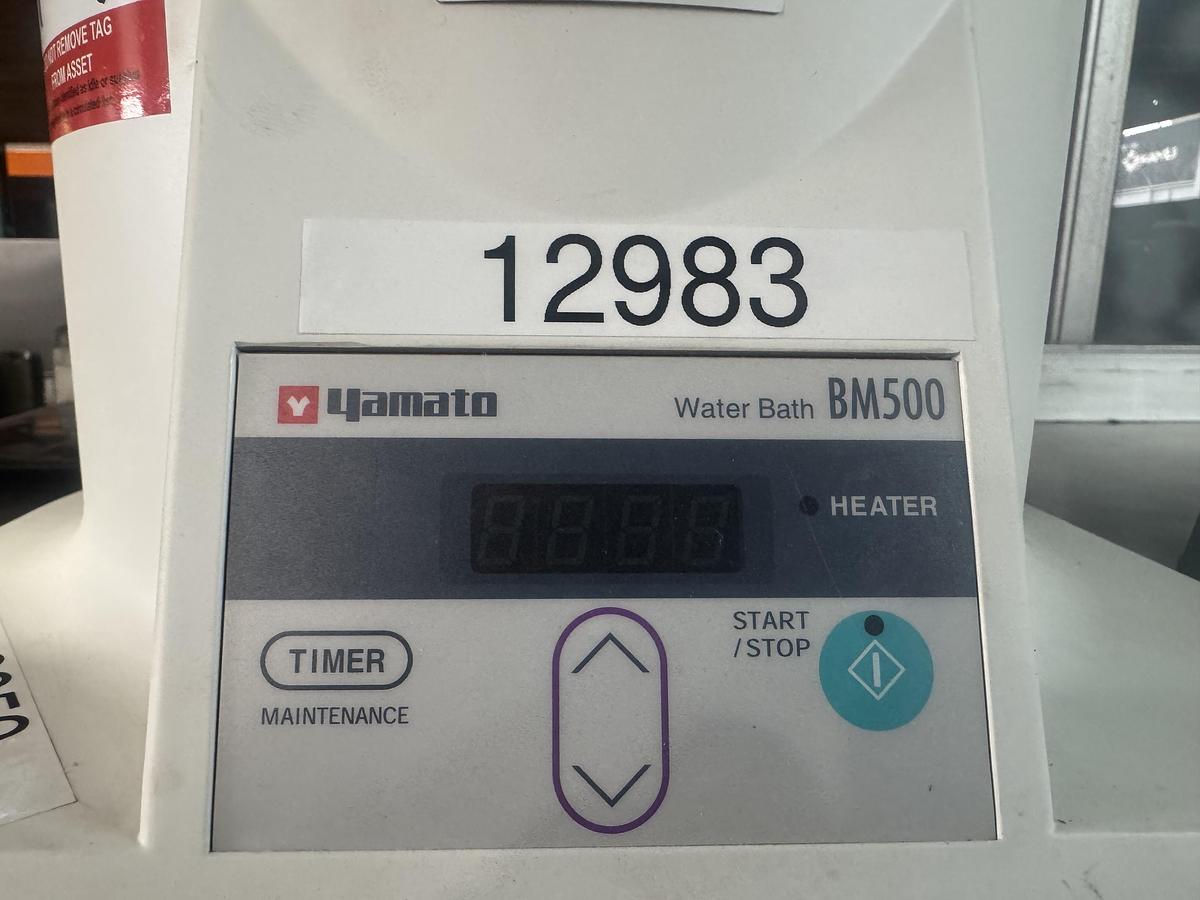

Yamato BM500 Water Bath

Used Yamato Water Bath, Model BM500,

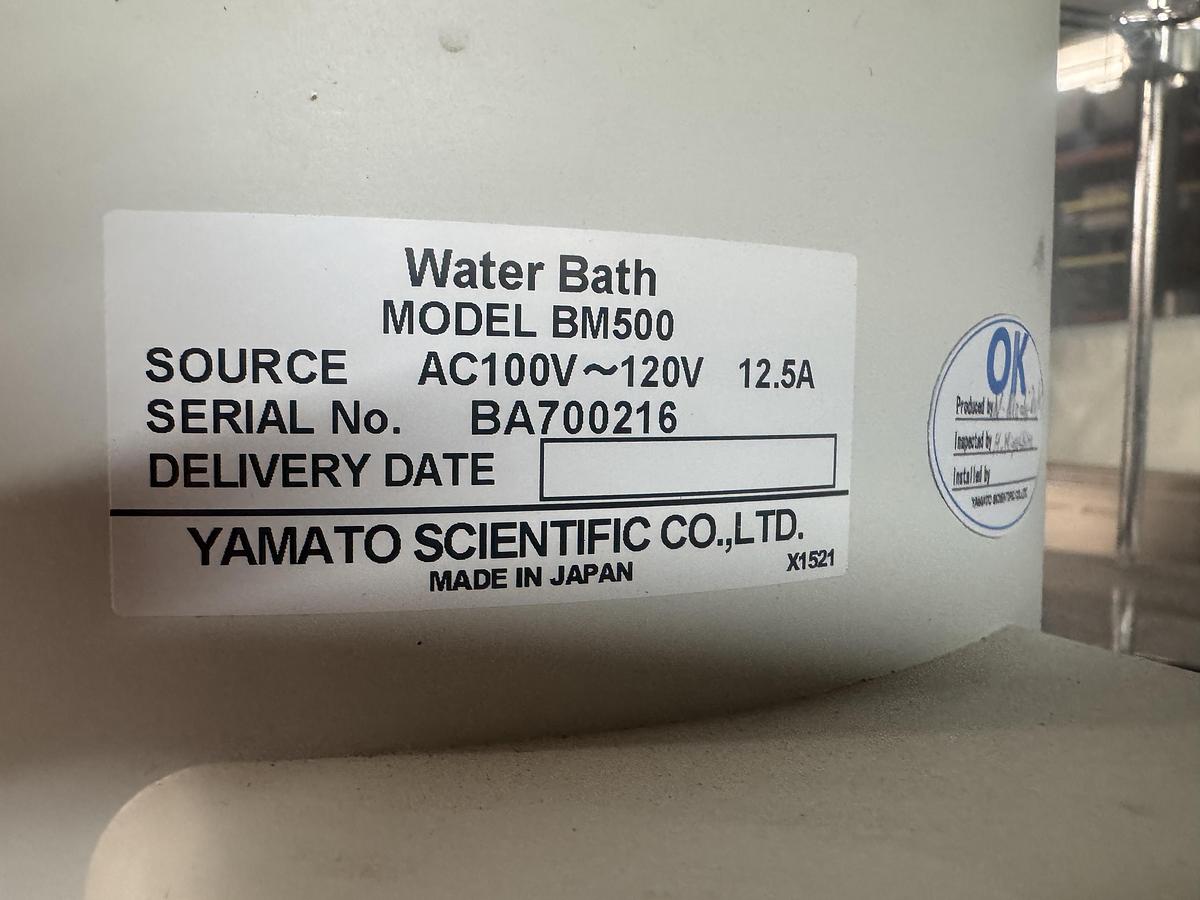

Model: BM500

Serial: BA700216

Power: 120V, 12.5 A

Specifications:

• Operating Temp. Range: Room temp. +5°C to 90 °C
• Temp adjustment accuracy: ±1.5°C (When stirring)
• Control system: PID control by microprocessor
• Set-up system: Digital setting by key
• Extra function: Key log function, SE signal transmission and reception, power failure guarantee operation, calibration offset
• Sensor: K-thermocouple
• Heater: 1kW (at 100V) 1.44kW (at 120V)
• Safety countermeasures: Protection cover for bath. Self-diagnostic functions (Automatic overheat prevention, Sensor trouble, Triac short circuit, heater burn out, main relay failure), socket breaker, thermal fuse
• Interlock control function: Automatic control signal receive by RE600/800 controller, Error report to RE600/800
• Bath Capacity/Material: 4 L
• Water Tank: Ø 240 x bottom 165 X depth 122mm
• External dimensions(WxDxH mm): 340 x 349 x 231
• Power source: AC100V-120V 10.5 - 12.5A (15A)
• Weight: Approx. 5.5kg
• Accessories: Bar thermometer (10 to 110deg.C) with immersion line
