Tank, 1,500 Gallon, Stainless Steel, Vertical, Cherry-Burrell

Tank, 1,500 Gallon, Stainless Steel, Vertical, Cherry-Burrell

Description

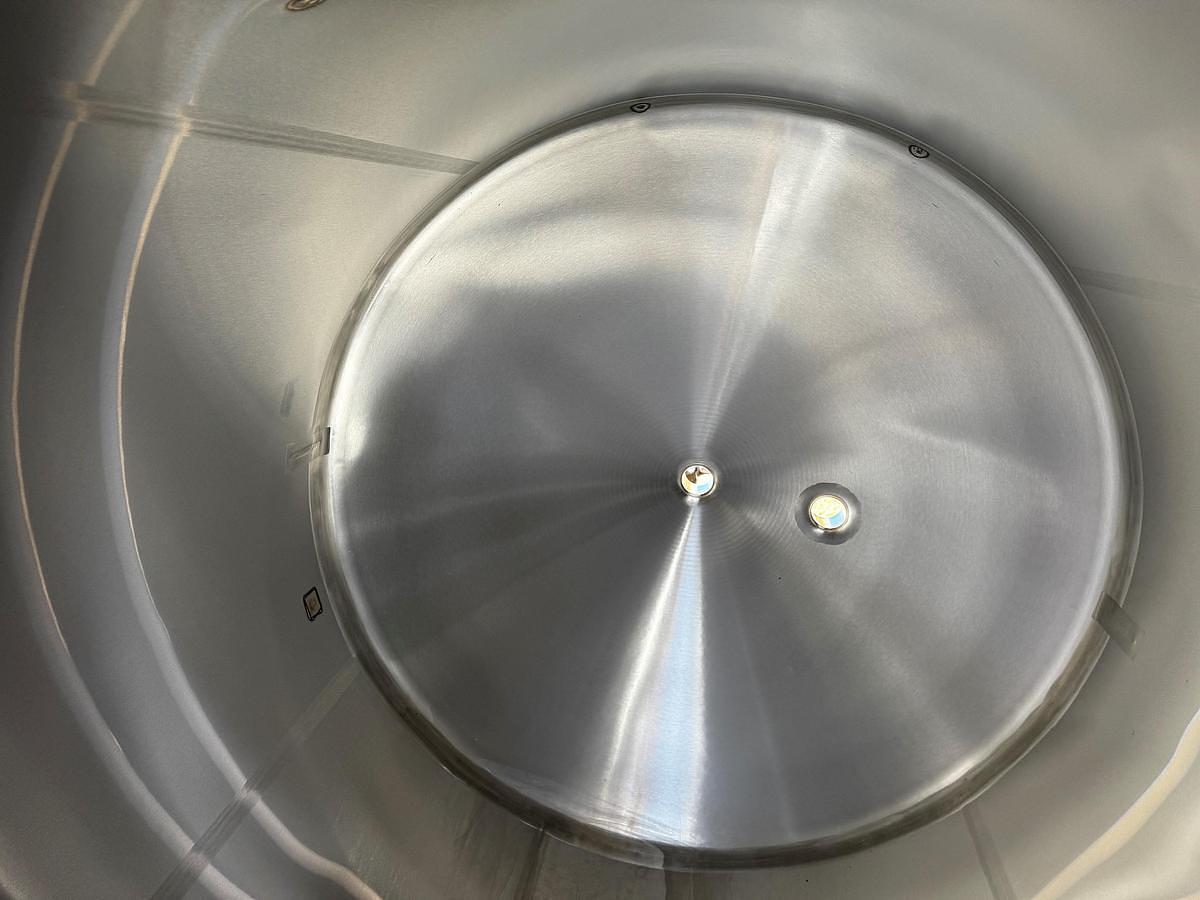

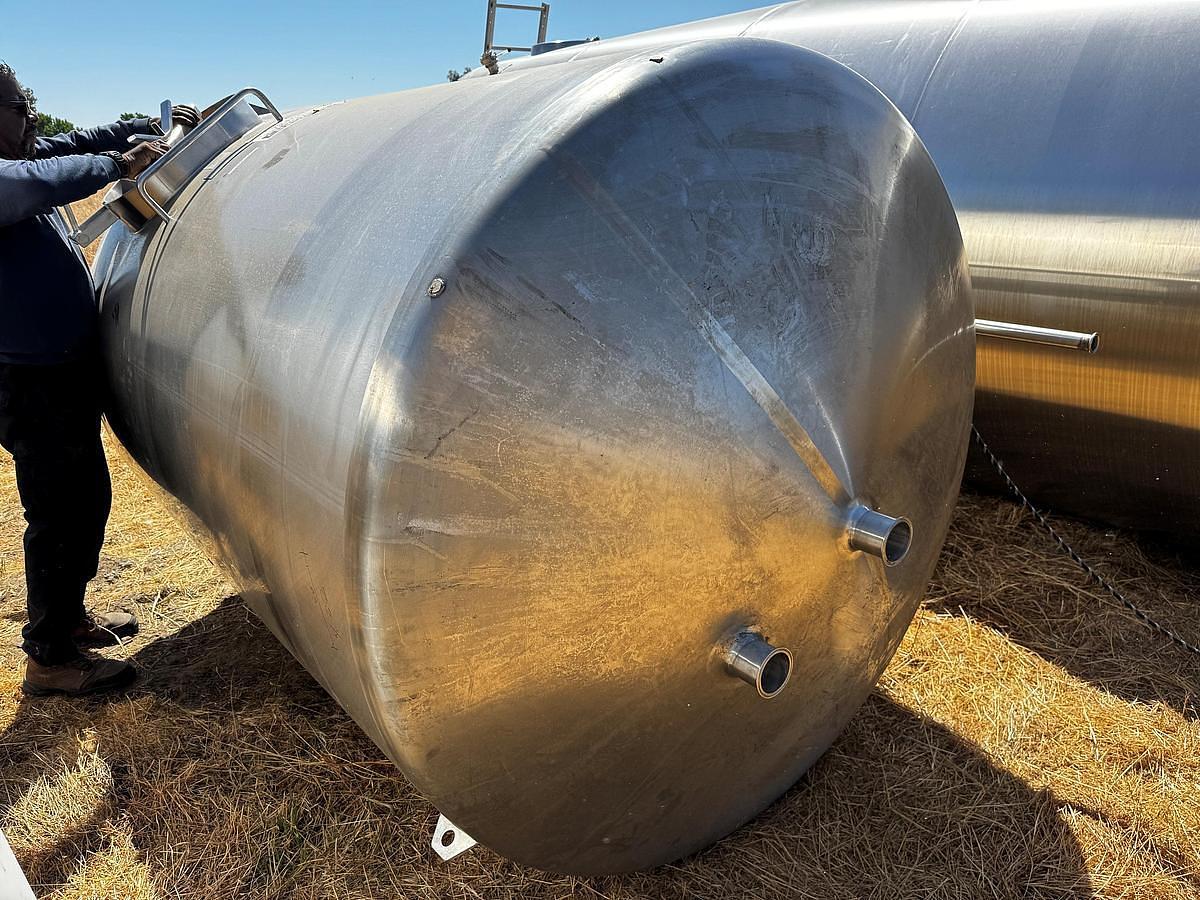

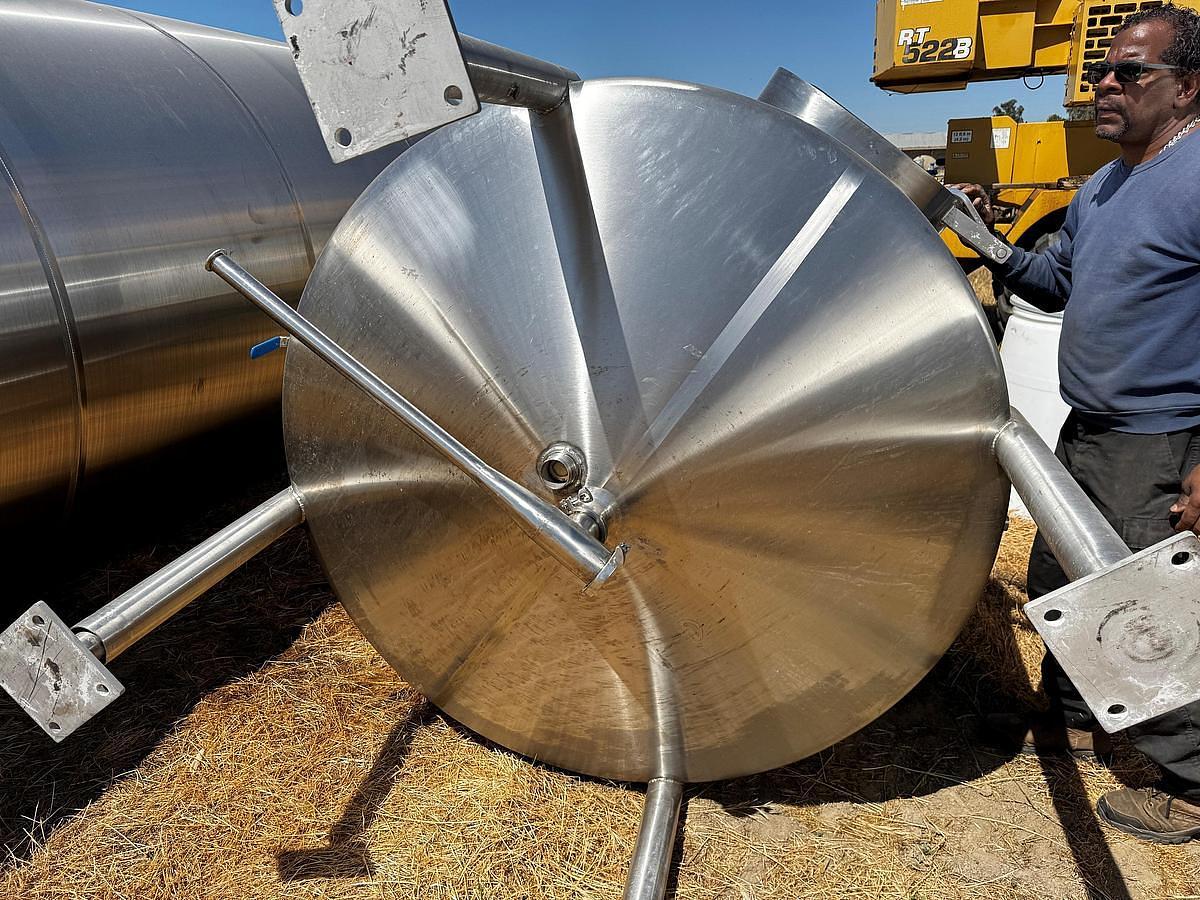

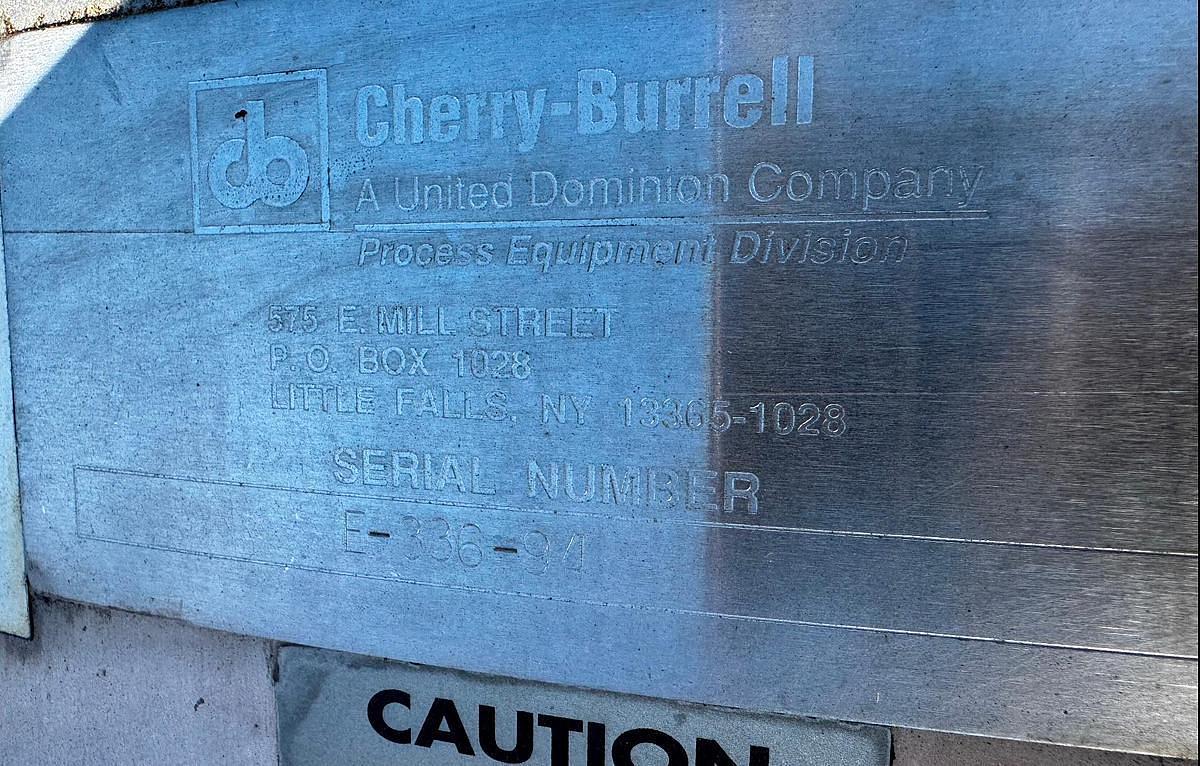

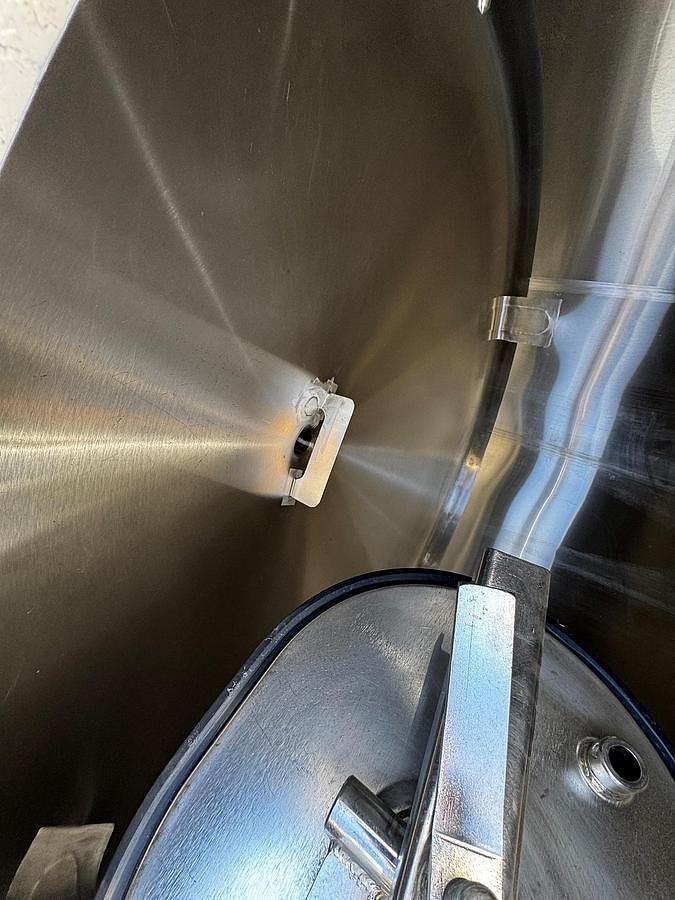

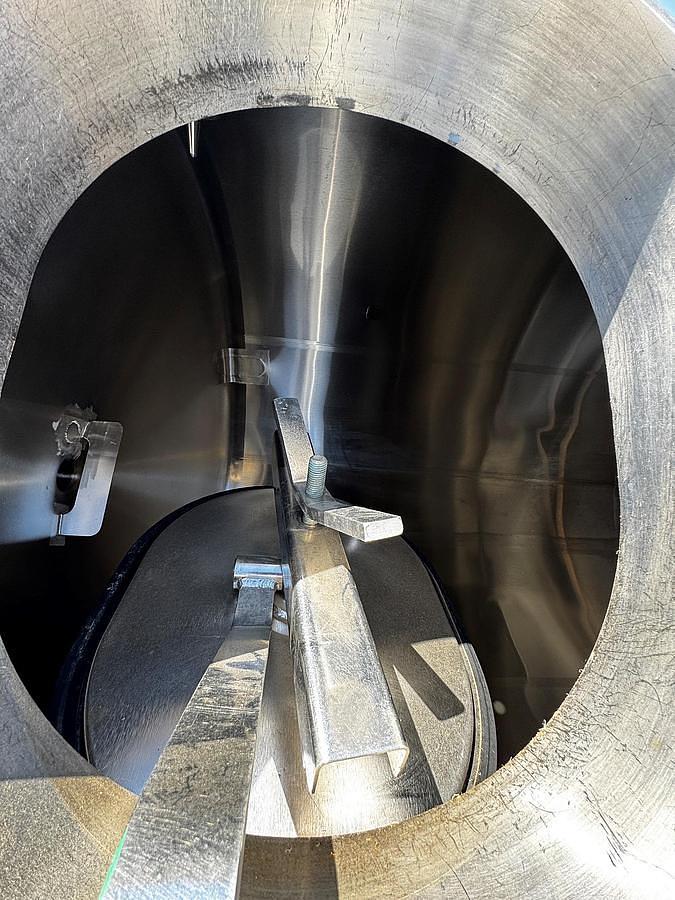

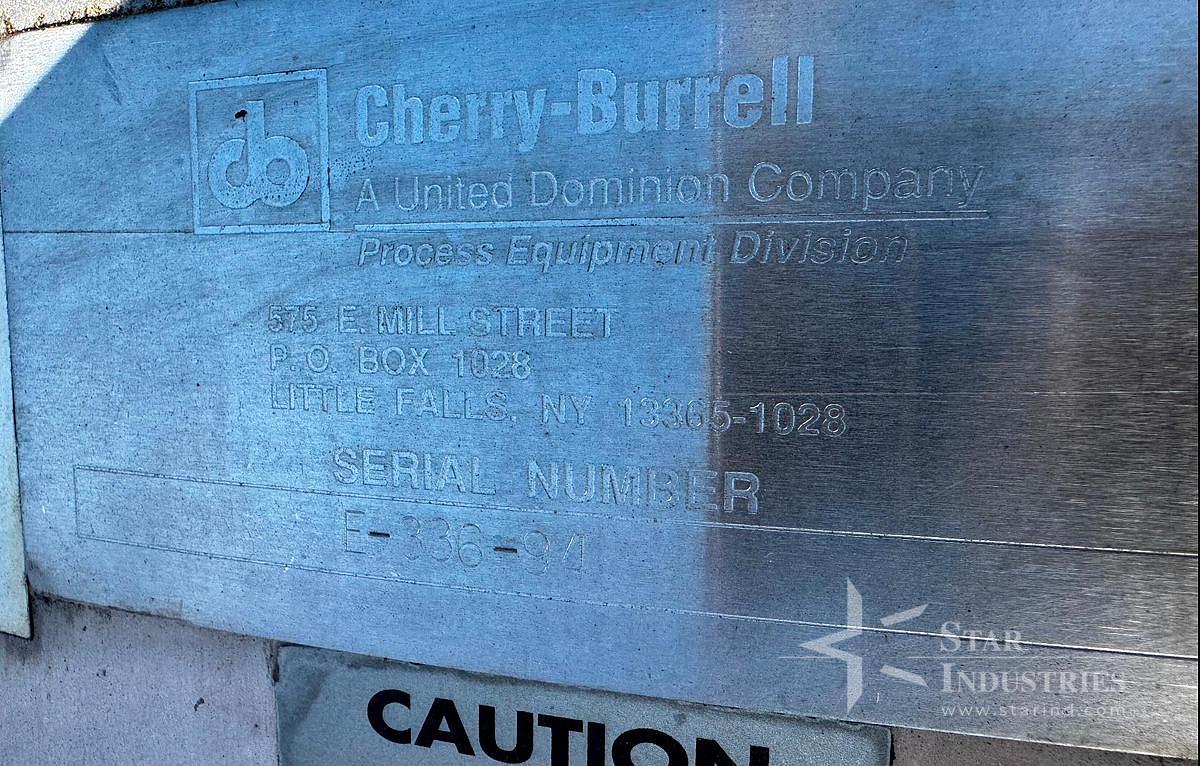

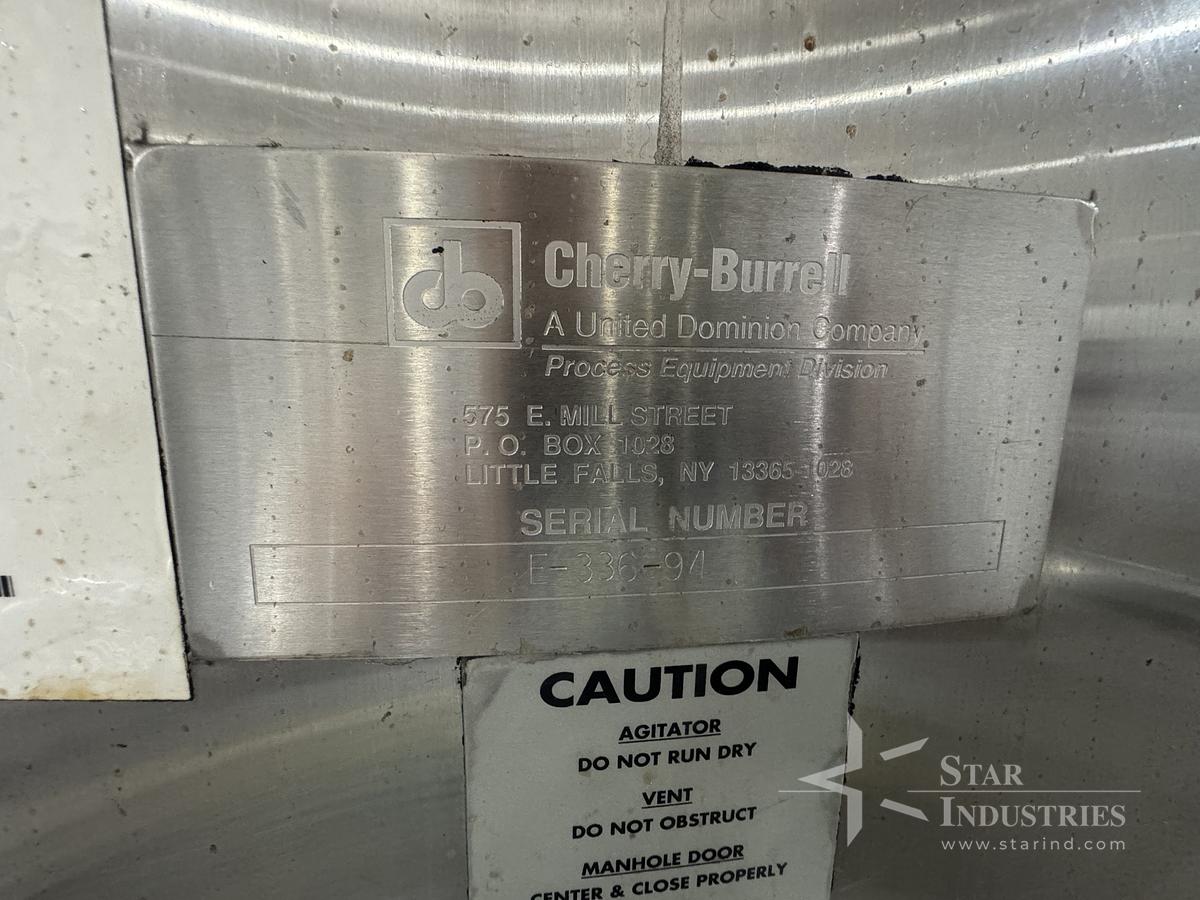

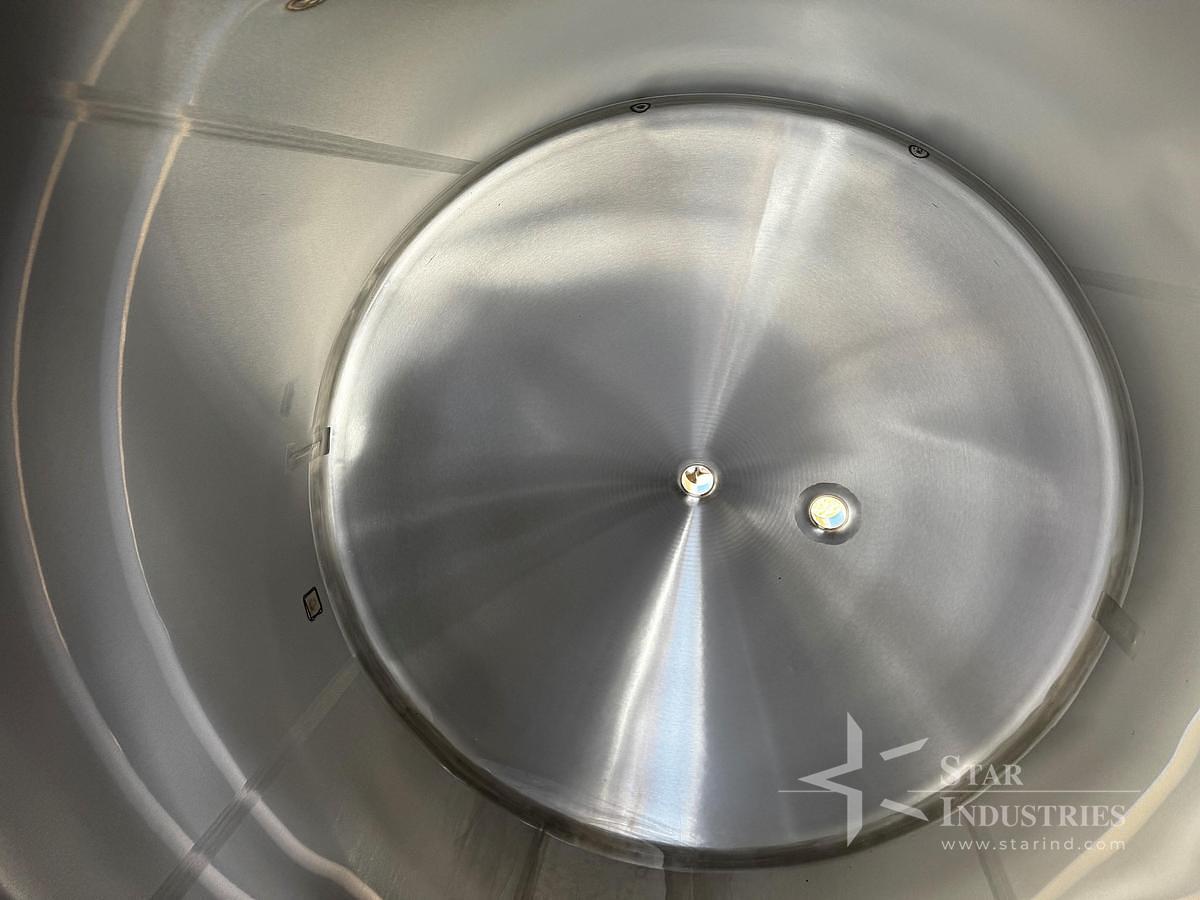

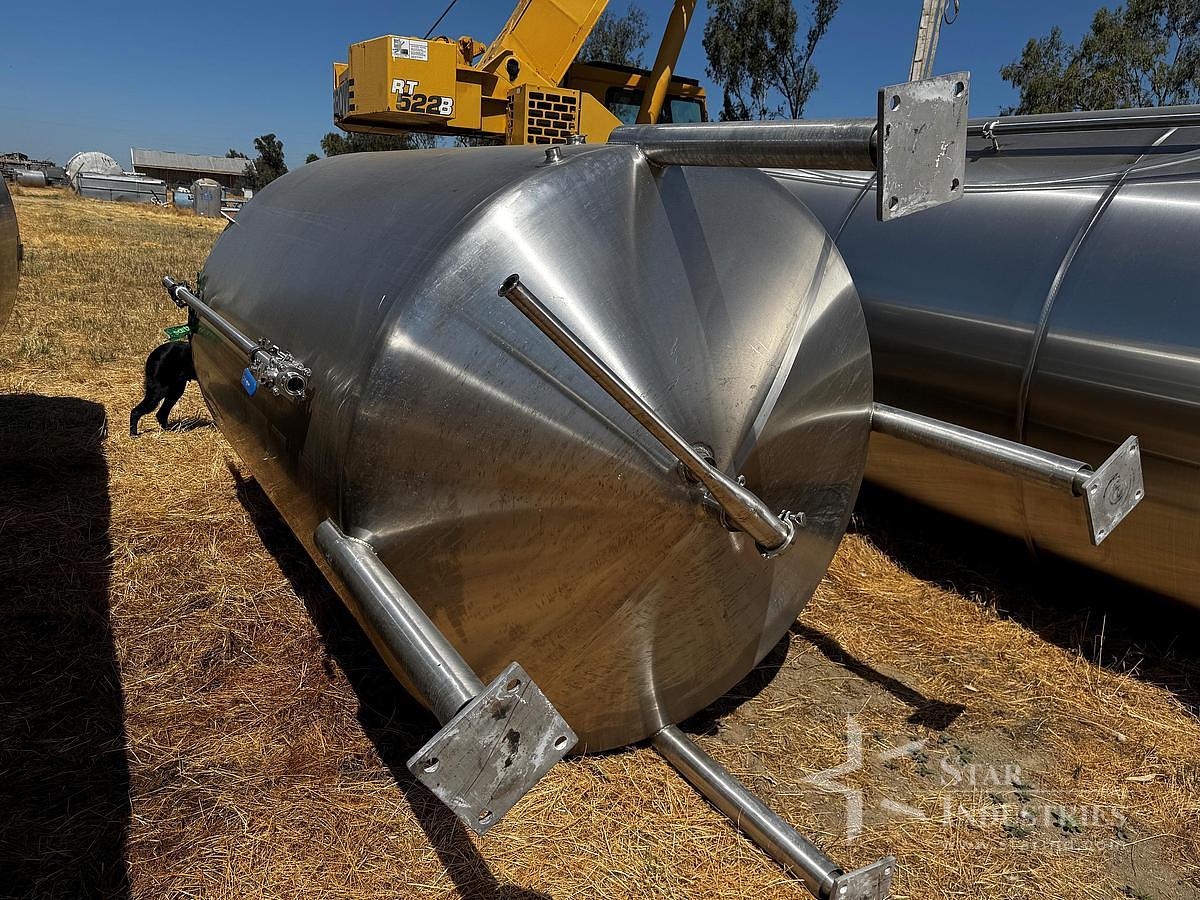

Cherry-Burrell 1,500-gallon vertical stainless steel tank, Serial No. E-336-94. Tank measures 5'4" diameter x 7' straight side with dished top and bottom heads. Features a 3" diameter center top opening reduced to 1.5", one additional 3" side top nozzle, and a 3" center bottom outlet with a secondary 2" side bottom nozzle. Includes a 20" x 16" oval side manway with an inward-swinging cover secured by a swing latch. Interior finish is polished stainless steel with clean seams and integral support welds. The tank is mounted on four stainless steel legs with adjustable footpads and includes a welded agitator mount (no agitation installed). External piping includes a mounted spray bar along one side.

Specifications

ManufacturerCherry Burrel
ConditionUsed
Inventory #12994
