ACG PAM Pharma Technologies - AF-90T (Encapsulation Machine)

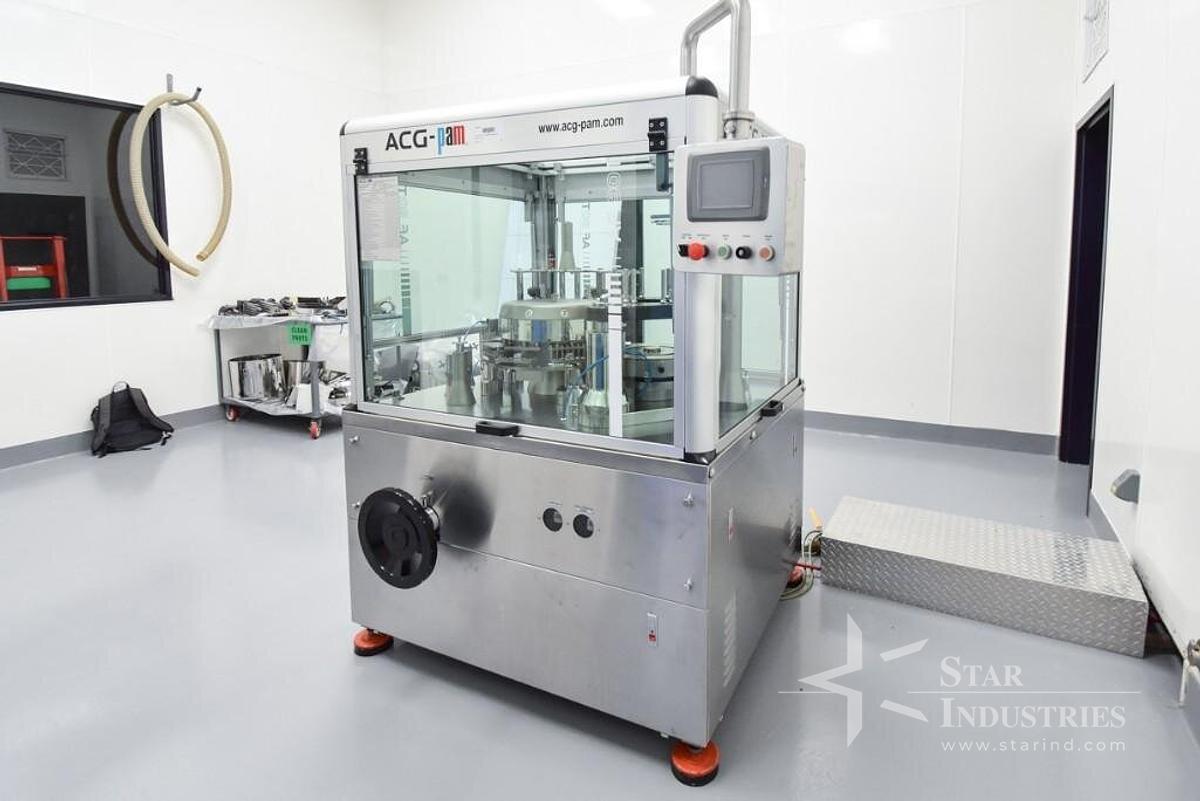

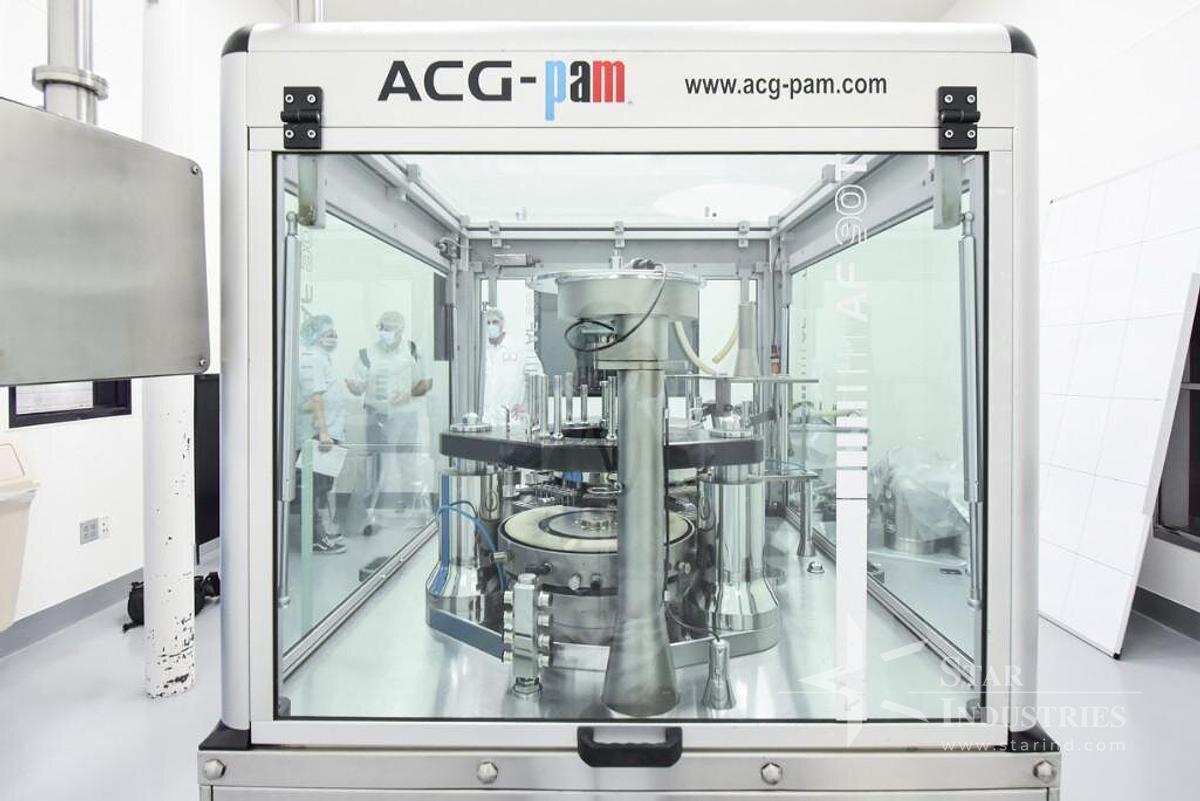

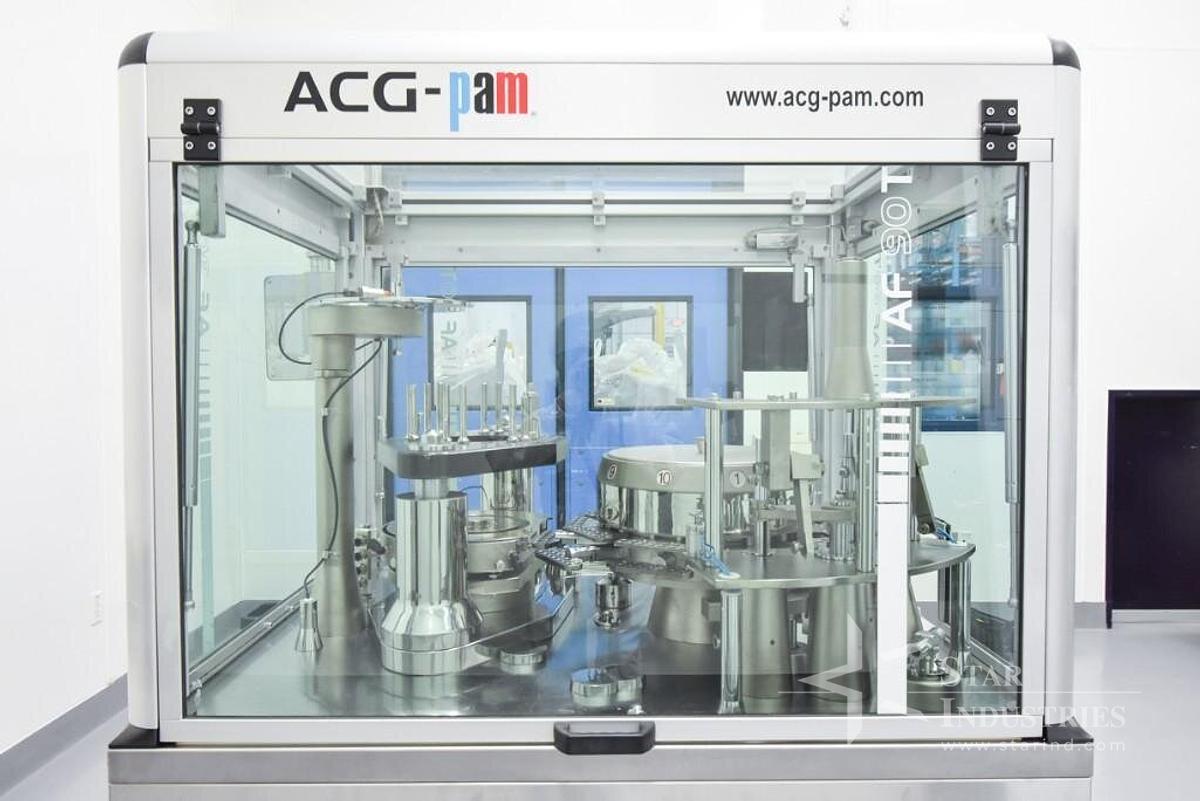

1 - Used ACG PAM Pharma Technologies - AF-90T (Encapsulation Machine)

Model: AF-90T

Volts: 415

Hertz: 50

Phase: 3

Overall Dimensions: 1650mm x 1290mm x 2050mm

Weight: 2350 kgs

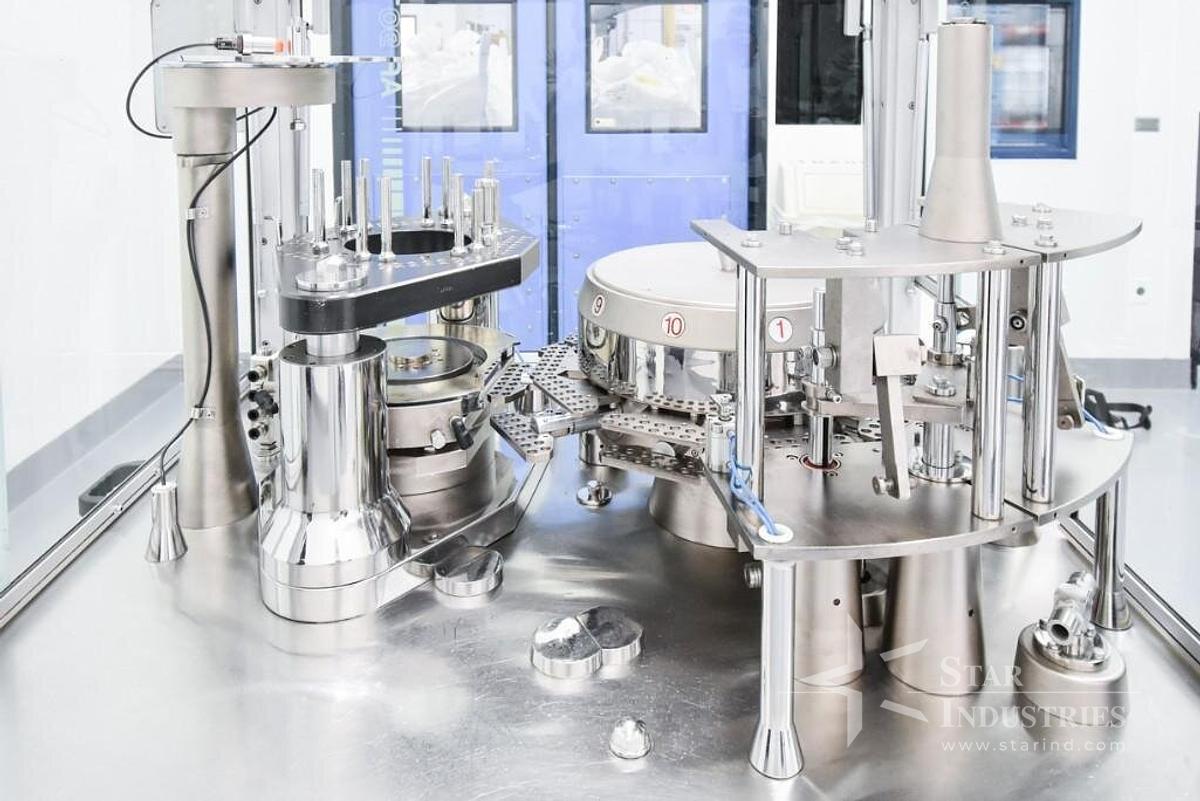

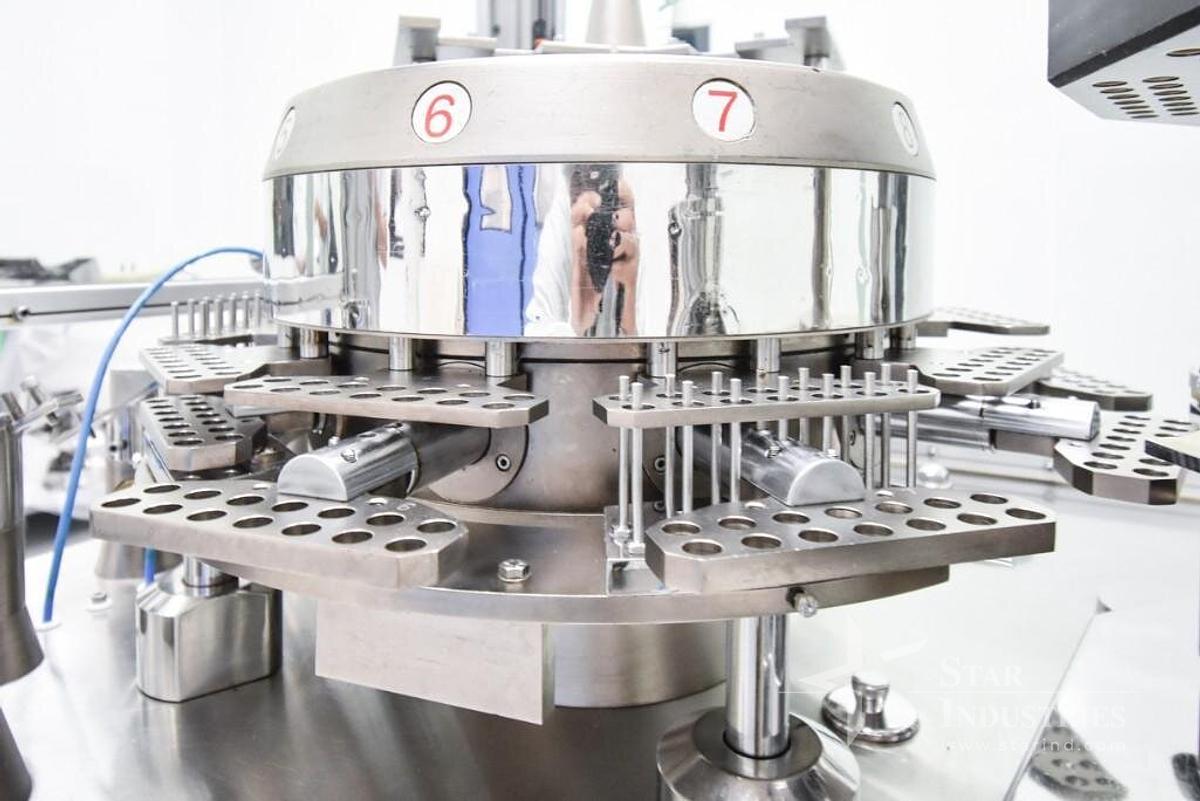

Product Description: The AF-90T is a fully automatic capsule-filling machine that can fill a large variety of powder formulations into hard gelatin capsules.

Product Specifications:

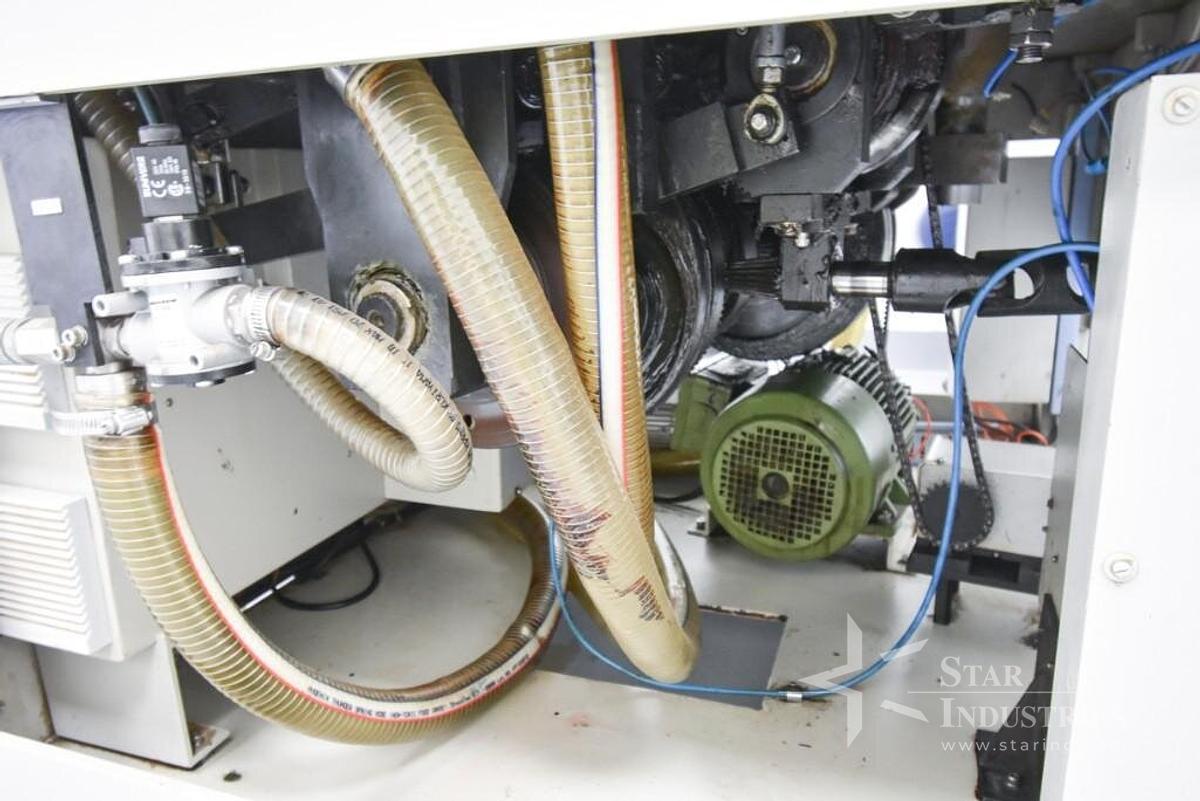

Main Motor: 1.5 kW ( 2 HP) at 1440 rpm.

Vacuum Required (Capsule separation): 1100 LPM at 26° of mercury.

Vacuum Required (Cleaning): 2800 LPM at 4° of mercury

Compressed Air: 300 LPM at 6kg/cm2

Output:

• Up to 90,000 capsules/ hour for power filling
• Up to 80,000 capsules/ hour for pellet filling
• Up to 50,000 capsules for Tablet filling (Single tablet)

Products:

• Powders
• Pellets
• Micro Tablets

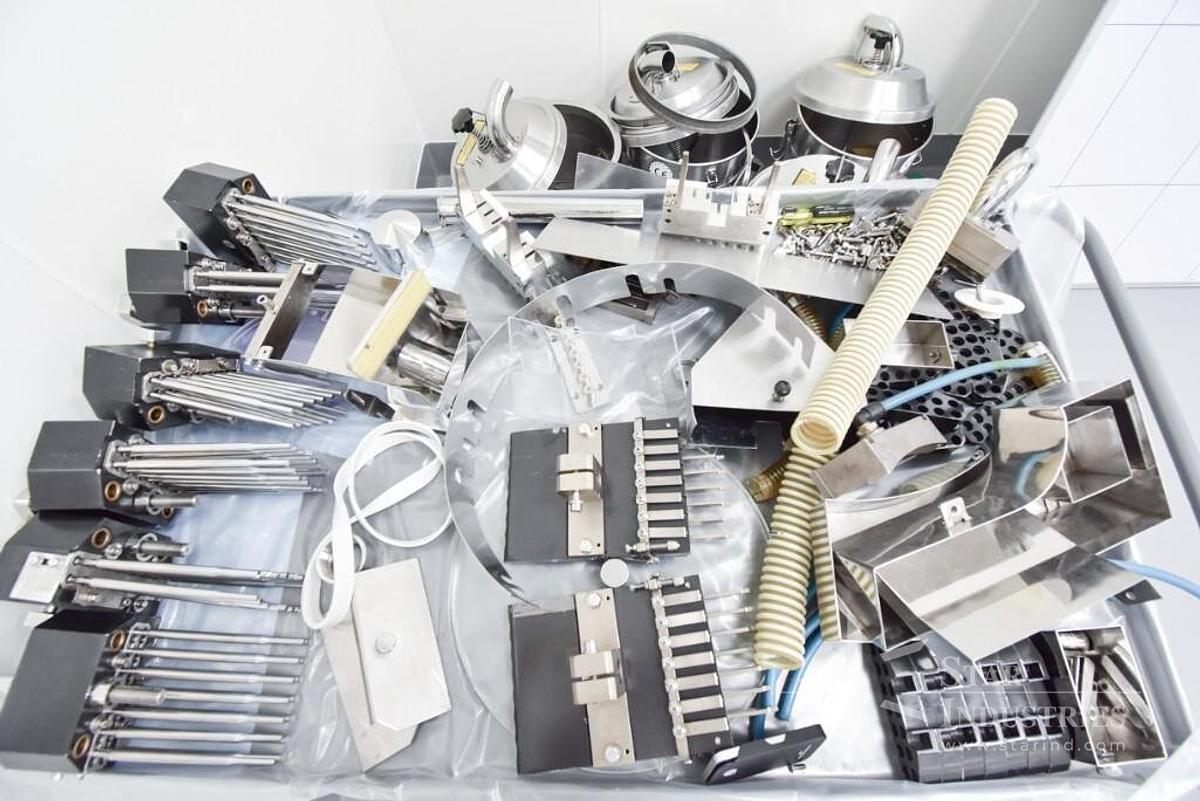

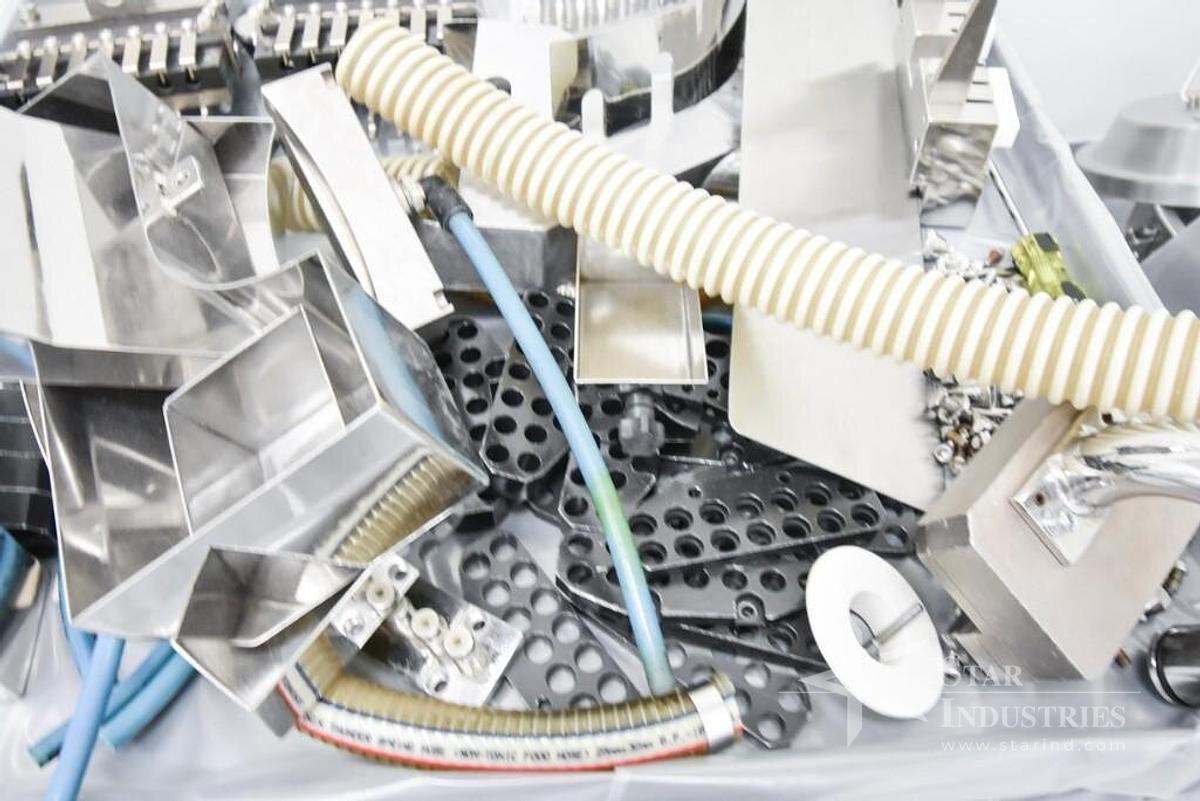

Combination Filings Tooling sizes “0”, “0L”, “00”, “1” come with machine No polisher or metal detector
