Kettle, Groen 80 Gallon Twin Agitated, Jacketed

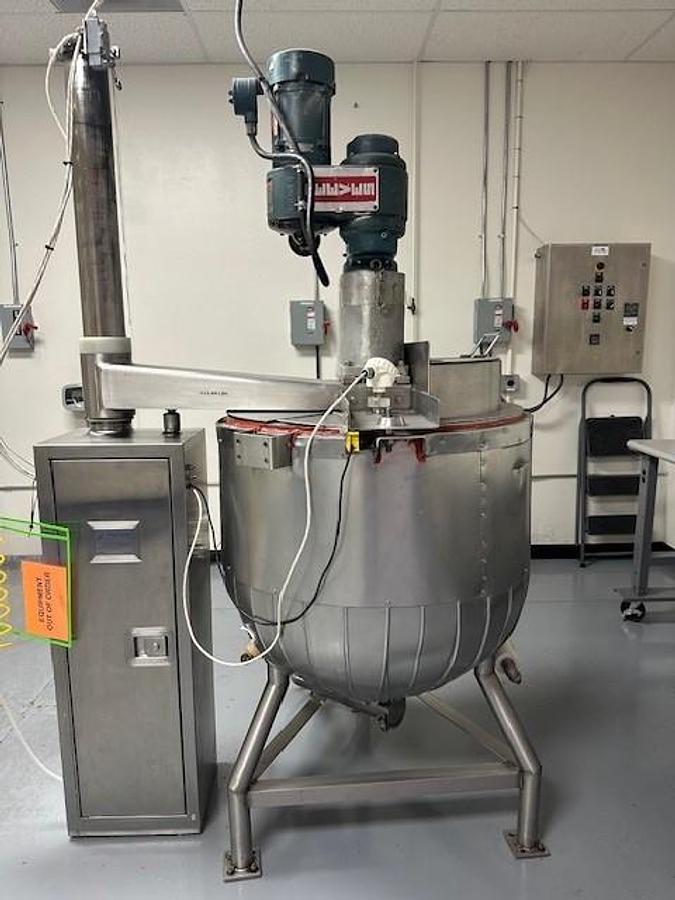

80 Gallon "Twin Agitated" Jacketed Kettle By Groen Manufacturing (Elk Grove,

Il) Model Gt/Ta-80-Sp, Serial # 53273. Features "Ta" (Twin Agitated) Mixing

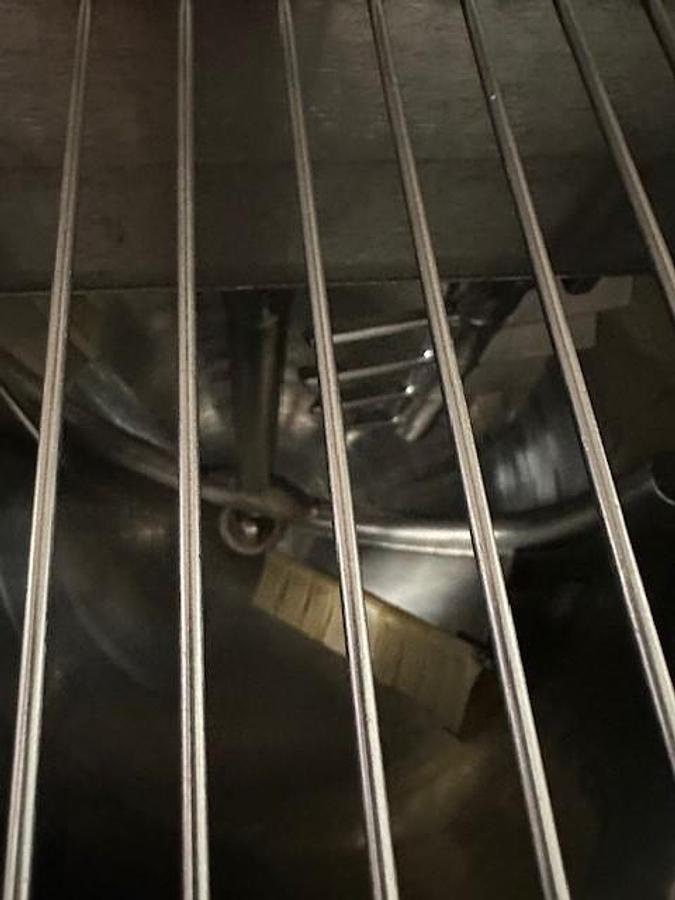

System Including Anchor Style Scraper Agitator With New Nylon Finger Scraper

Blades @ Apx 36 Rpm And Secondary Multi Paddle Agitator @ 90 Rpm,

Agitators. Feature Quick Realse Couplings From Bridge Mounted Groen Twin

Shaft Gear Box, New Westinghouse 1.5 Horsepower Motor, 230/460 3 Phase

Voltage, Variable Speed Ac Frequency Controller By Teco Is Post Mounted From

Bridge, Fully Jacketed Kettle Is National Board Rated (# 53273) For 45 Psi @

300 F, Center Bottom 3" Discharge With Manually Operated Ball Valve And 21"

Floor Clearance And Tri Clamp Connections, Central Agitator Bridge With Two

Hinged Covers, Mounted On Three Interconnected Ss Legs With Floor Pads Pre

Drilled For Mounting Bolts (Two Per Pad), Vessel Formerly Had Tangential Front

Discharge Which Has Been Welded Closed. Formerly Used In Food

Manufacturing.

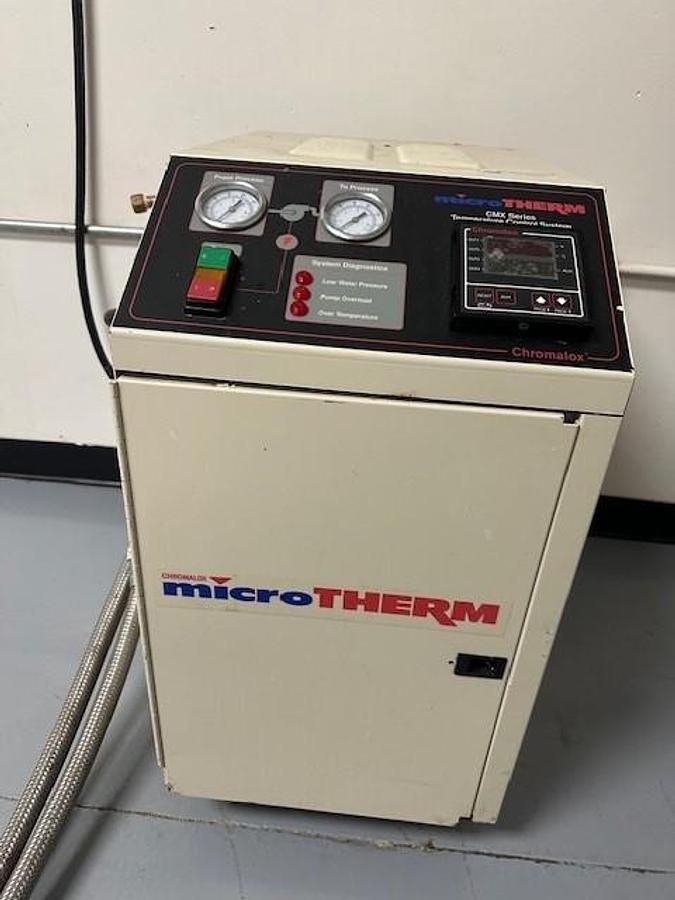

Recirculating Process Heater By Chromalox, Model Cmx-250-18 C, Part Number

141-123621-509, Serial # Cm00122. Features 18 Kw Rating, Manufacturer Rates

To 250 F, On Board Electric Heater And 3/4 Horsepower Circulation Pump

Operating Through Digital Temperature Controller, 480 Volts/3 Phase/60 Hz

Electrical Service Required, Controls Include From And To Process Pressure

Gauges, Low Water/Pump Overload/Over Temperature Warning Lights, Stop/

Start And Digital Set Point Temperature Controller, Cabinet Enclosed With

Removable Service Doors, 29" High X 15" Wide X 25" Deep, 120 Control

Voltage. Formerly Used In Pharmaceutical Serivce.
