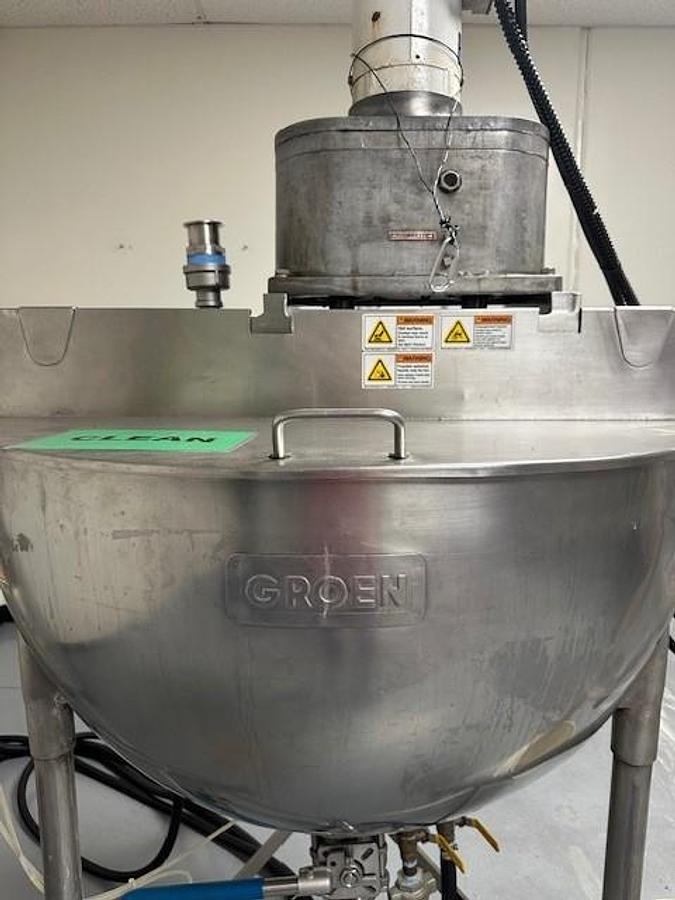

Kettle, Groen 80 Gallon Twin Agitated, Jacketed, 316 Stainless Steel

Twin Agitated 80 Gallon Mixing Kettle By Groen, Model Ra-80, Serial #

01310-1. Features T-316 Stainless Steel Vessel, Jacketed And Fully Insulated

Body Is National Board Rated (# 139124) For 25 Psi @ 300 Degrees F, Body

Has Polished Aluminum Shroud With Sealed Joints, 3" Center Bottom Outlet

With Lee "Fluids Flow" Flush Seating Ball Valve Into "T" Discharge With 3"

Cleanout And 1.5" Discharge All With Tri Clamp ConnectIons @ 10" Floor

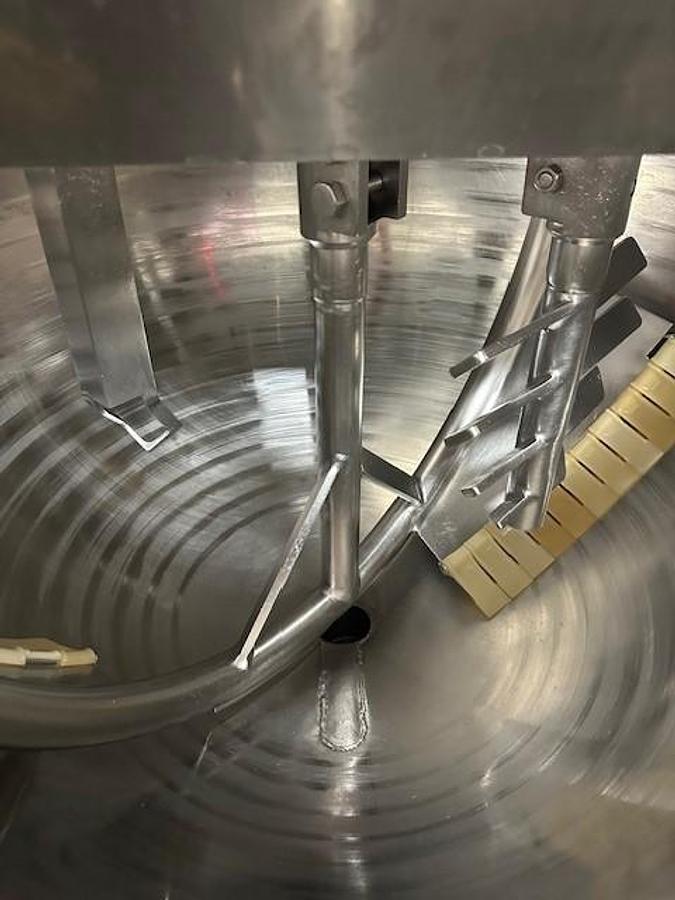

Clearance, Groen “Twin Agitation" System With Full Scraper Agitator And

Secondary Paddle Agitator (Four Twin Arm Design), Single Factory Gear Box

Operates Both Agitators With Secondary Agitator At Apx 3 X Speed Of Scraper,

(36 Max Scraper/100 Paddle Rpm), Mounted On 8" Wide Ss Central Bridge With

Full Attached Cover Including Front Loading Station With Hinged Cover And

Dump Grate (25" Wide X 8.5" Deep), Fixed Rear Cover With Portable Mixer Slot

At Mounting Station, Complete Agitator Is Mounted From Single Post

Pneumatically Operated Lift Rated For 550 Lbs. By Highland Equipment, Serial #

60818, Mechanical Manually Operated Variable Speed Drive By Reeves, 1

Horsepower With Gear Reducer, Motor Is Ul Rated For Use In Hazardous

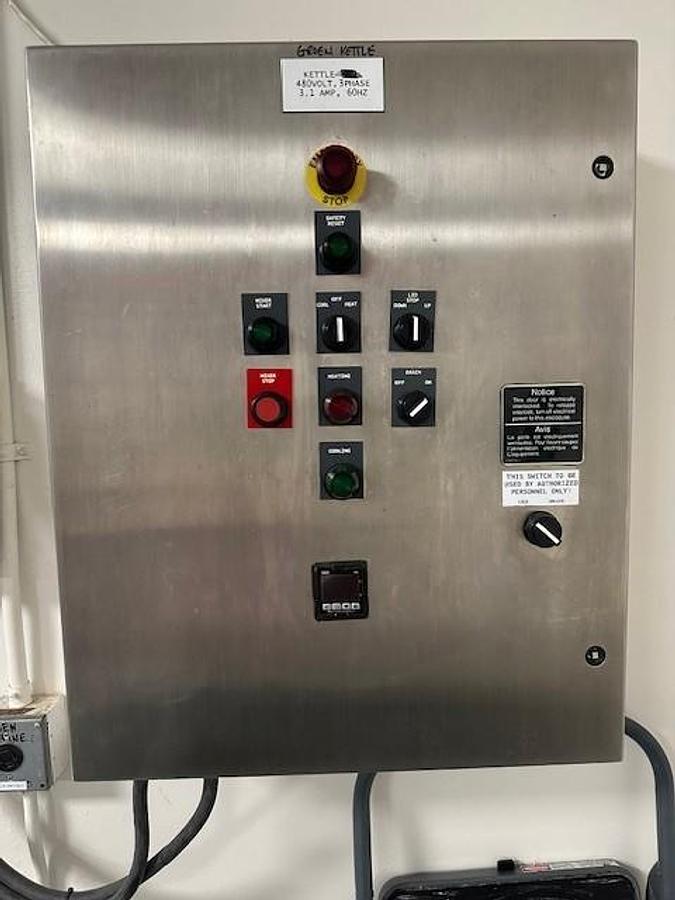

Locations Under Class I/Group D, Class Ii/Groups E,F & G Provisions, Factory

Control Panel In Ss Enclosure Honeywell Dl 4500 Chart Recorder In Ss

Enclosure, Wired For 480 Volt/3 Phase Service/ 3.1 Amps. Formerly Used In

Branded Personal Care Pilot Lab.

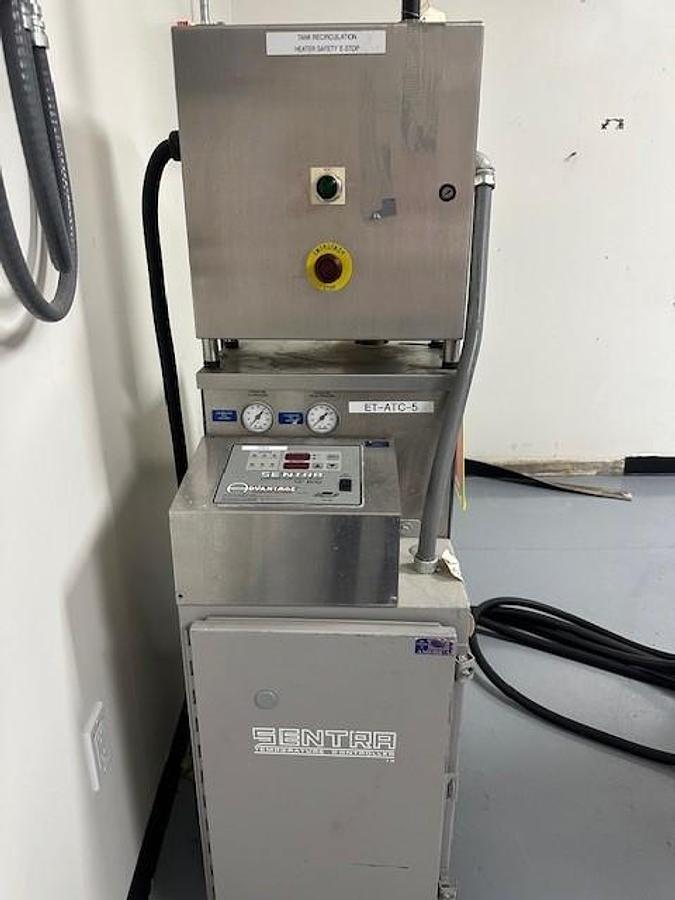

Recirculation Heater By Advantage, Model Ske-1635 Le-Nf, Serial # 89791.

Features All Stainless Steel Construction And Designed For Water Circulation

And Tested To 95C, Operates On 230 Volt/3 Phase/60 Hz/40.9 Amps, Two And

From Process Connections Are 1.250" Npt Female, Water Supply/Drain/ Air

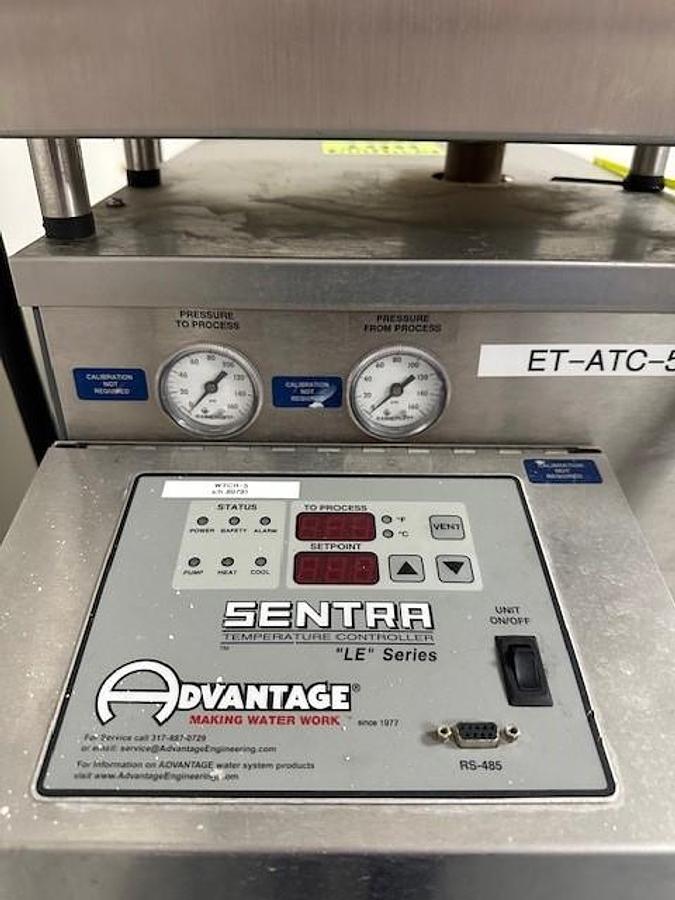

Purge Connections, On Board Tank With Sight Glass, Sentra Le Series

Temperature Controller WIth Touch Sensitive Pads And Rs-486 Communications

Connector. Formerly Used In Pharmceutical Service.
