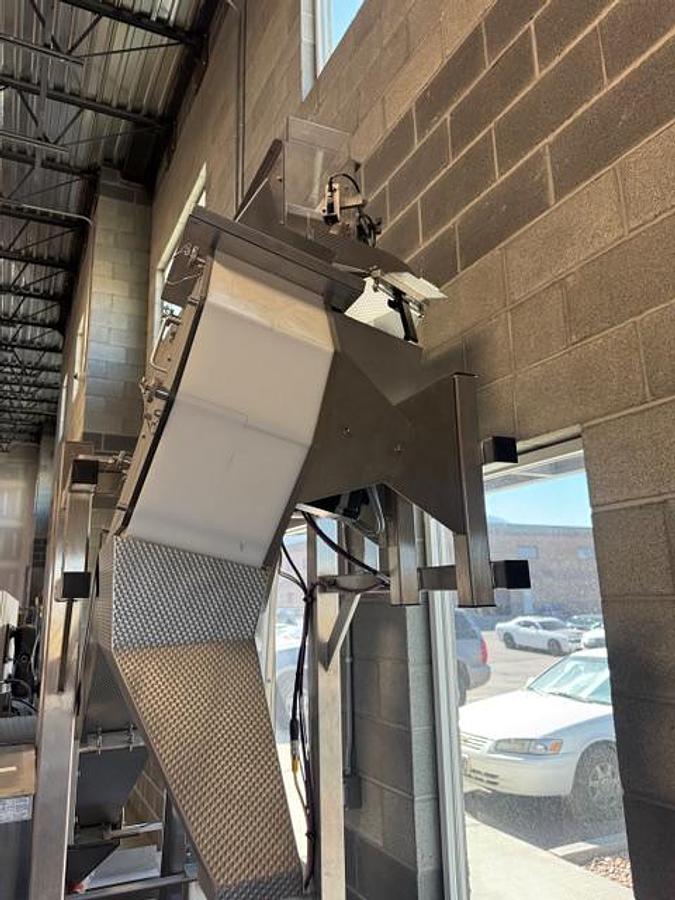

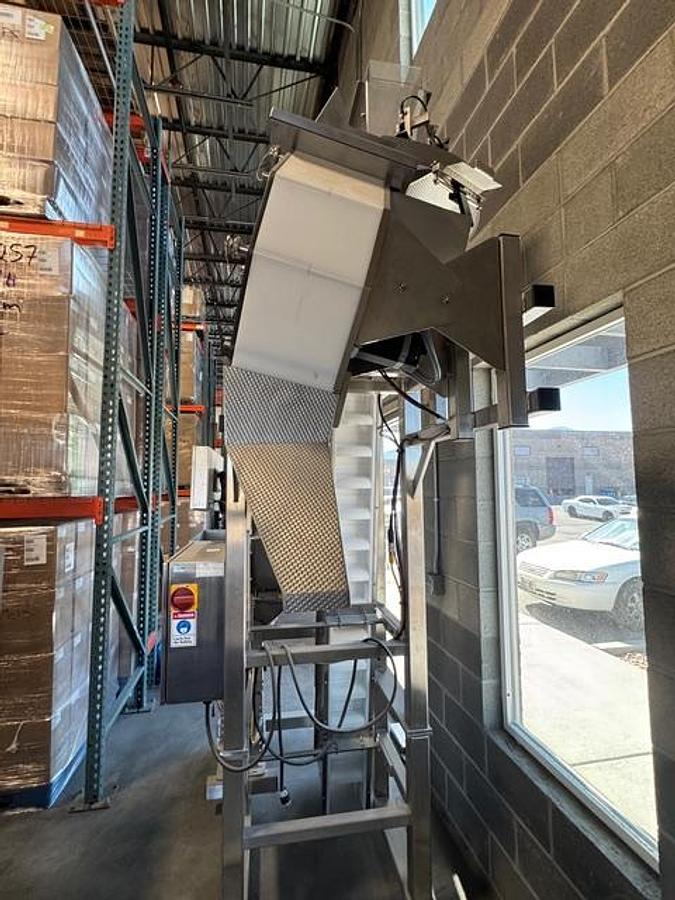

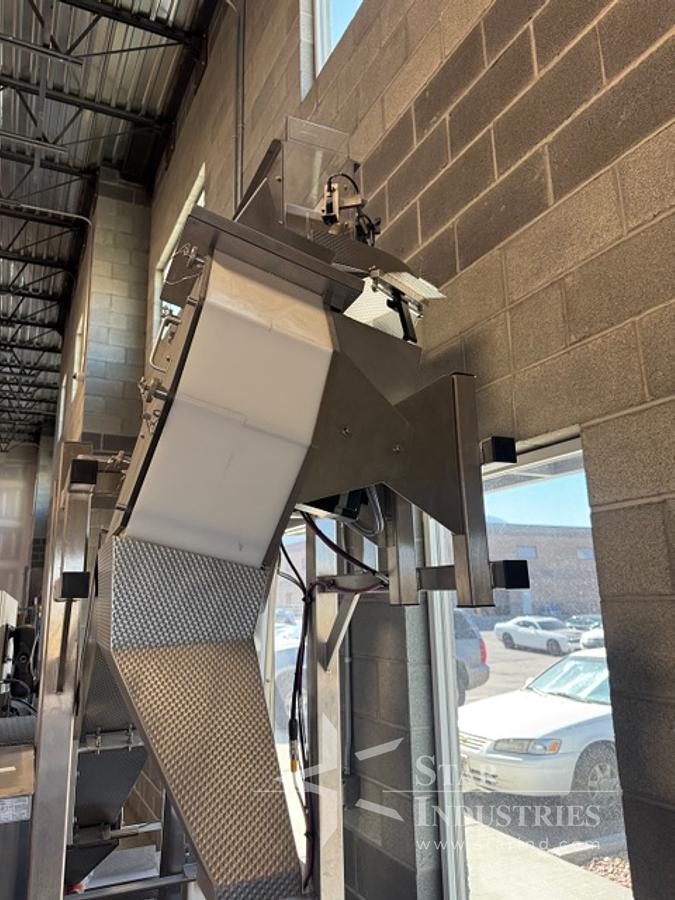

Scoop Dropper - Assembly, DV200 2 Gate with Hopper Elevator

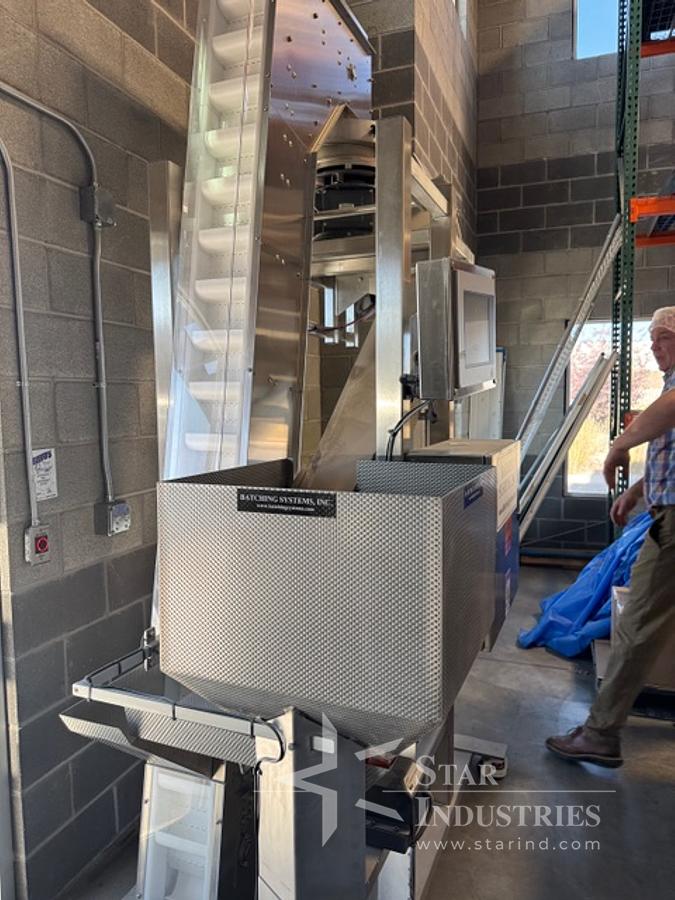

The Batching Systems scoop dispensing counter consists of a support structure to mount the counter over the feed zone of the pouch machine, a high-speed vibratory feed system which will singulate the scoops, Parts Processing Unit (PPU) where they are accumulated into the desired batch count and dispensed. The system also includes a stainless steel bulk product supply hopper which is approximately

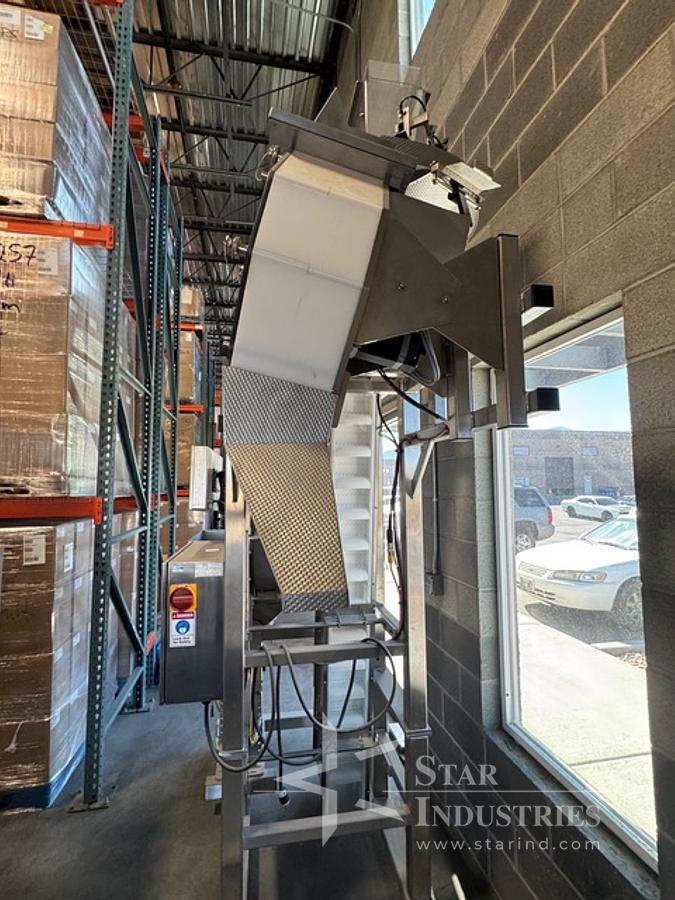

waist high and can easily be filled with product at ground level. The product would be extracted from the supply hopper via a cleated belt and metered into the feeder bowl. A return conveyor returns scoops which are overfed back to the supply hopper. The entire system is mounted on castors so that it can easily be moved to-and-away-from the pouch machine.

Batchmaster® IV continuous product counting and filling system, to include:

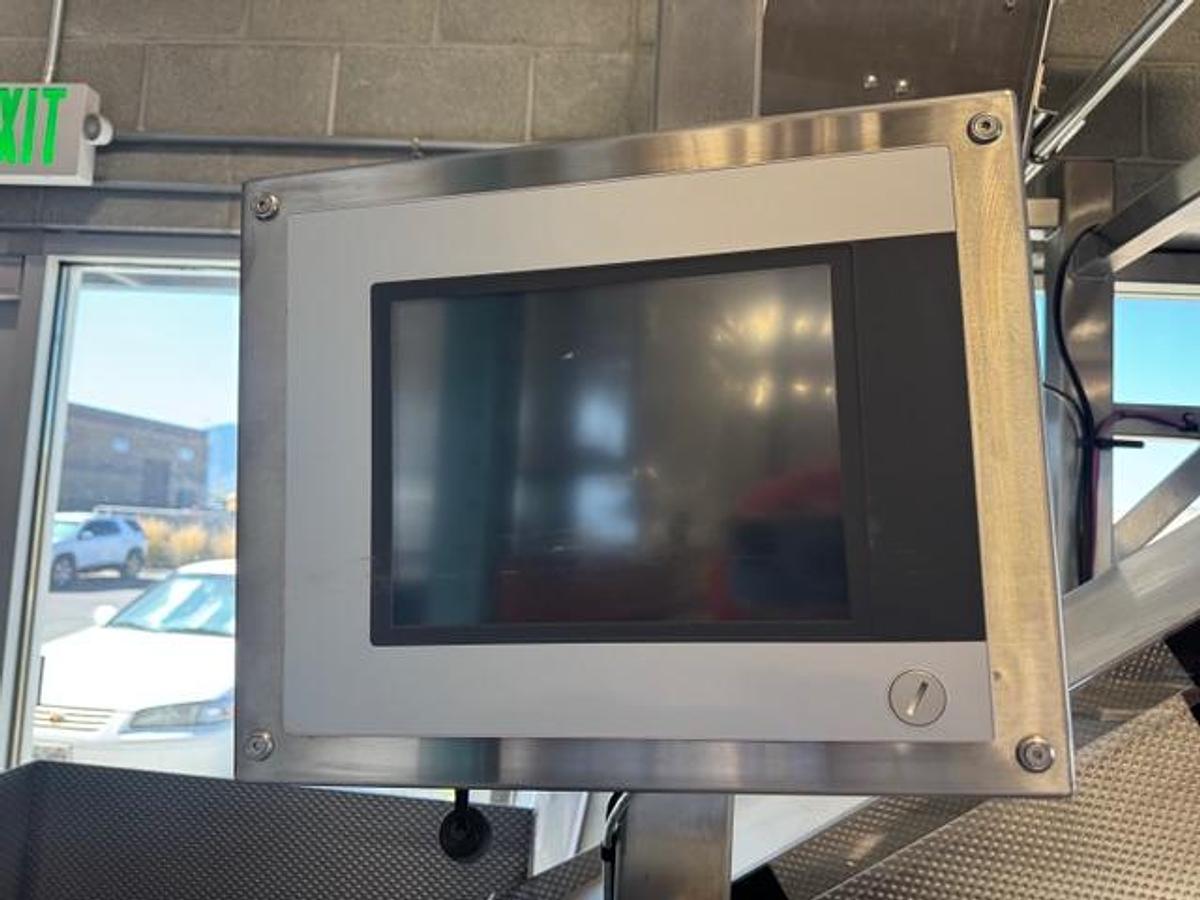

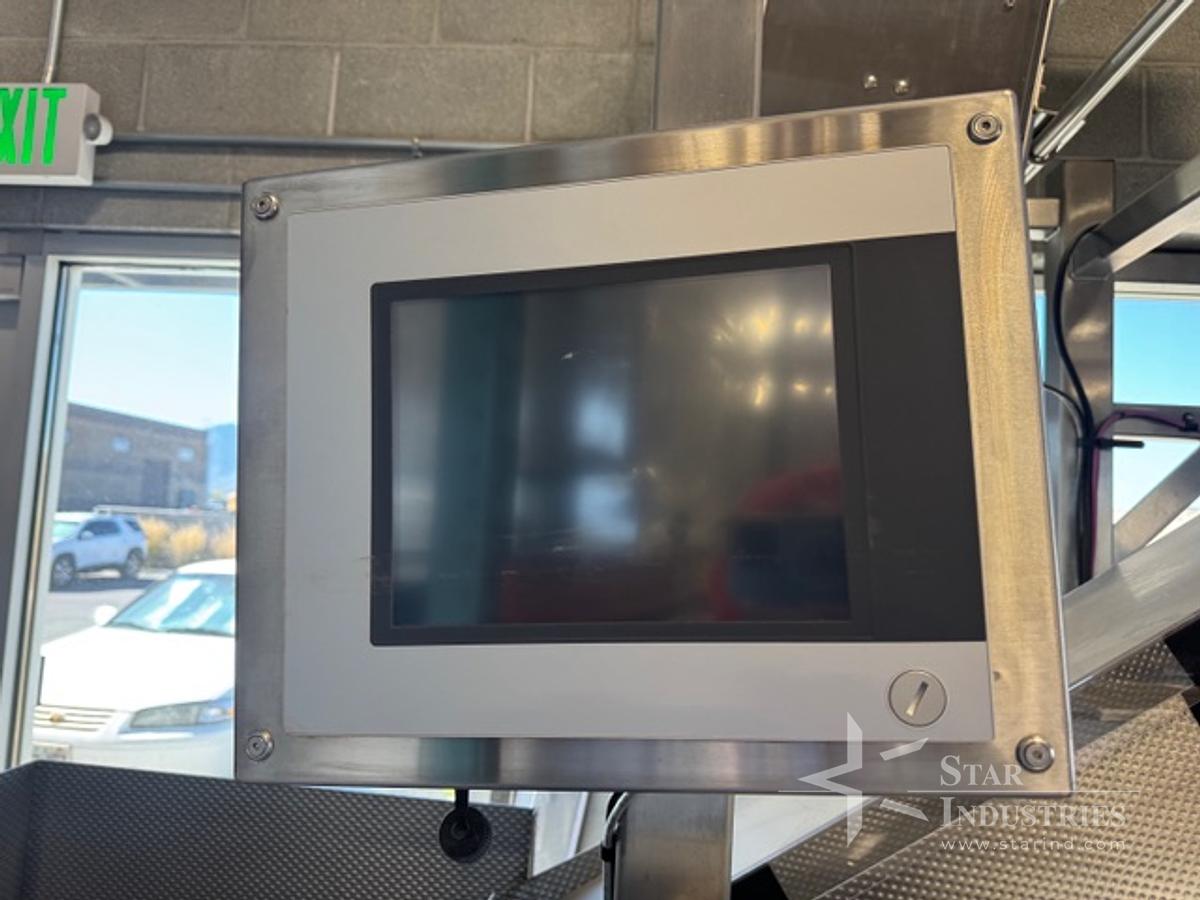

1. 10.5” color touch screen
2. 200mm dual view scanner / 2-gate continuous feed part processing unit with see through inspection, tool-less assembly / disassembly, stepper motor driven gates

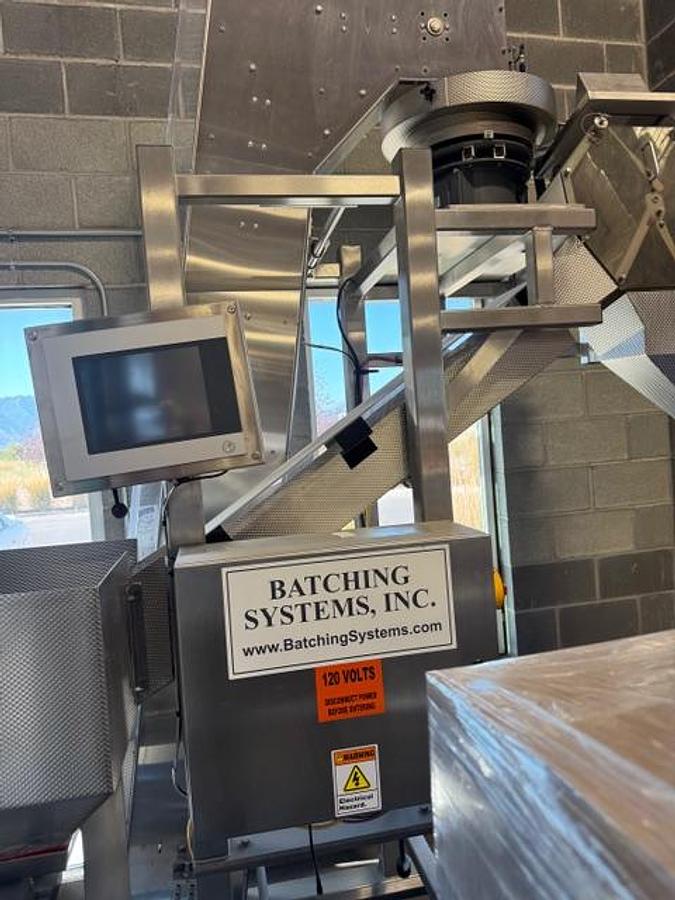

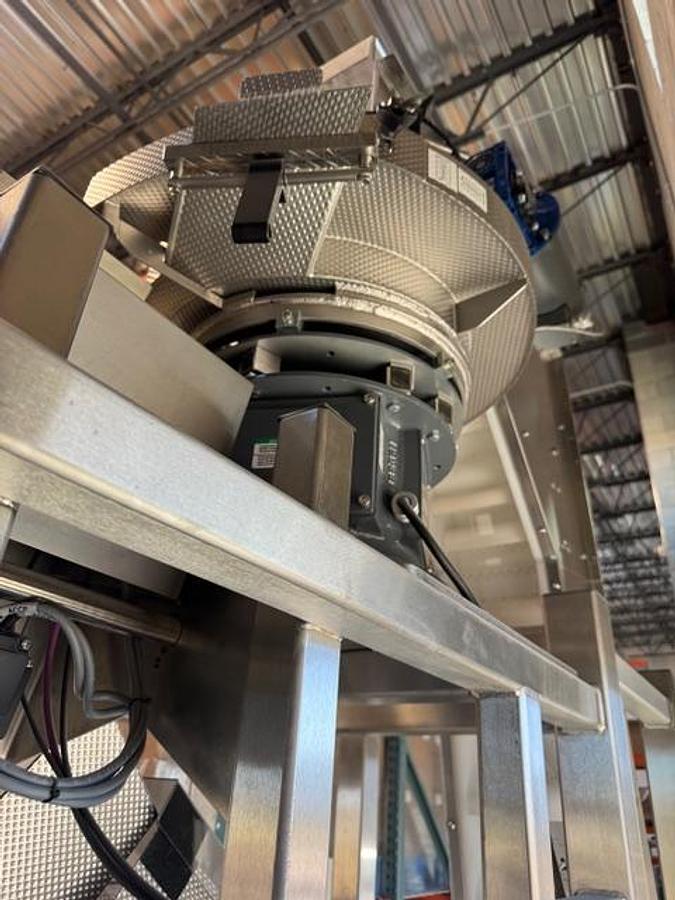

3. 24” stainless steel enhanced geometry bowl with high speed feeder and 3” tool-less adjustable product feed gate
4. Conical bowl dissipater for gentle and efficient product flow
5. Fixed height system stand, on casters

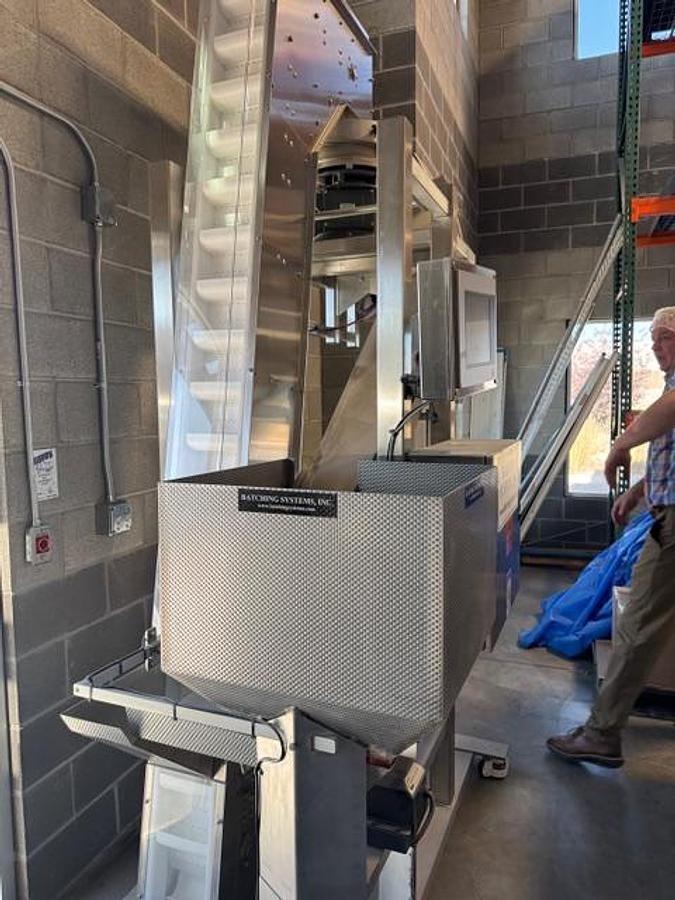

6. 3ft³ capacity stainless steel inclined bulk product supply hopper for easy part loading
7. Scoop return conveyor to supply hopper
8.  Interface package to include funnel and interface communication cable to Junapack machine
9. Operation manual on memory stick.
10.  Day of acceptance and testing at Batching Systems, Inc. facility prior to shipment
11.  Handling, crating, and packing
