100L Muller Electric Pot / Column Still

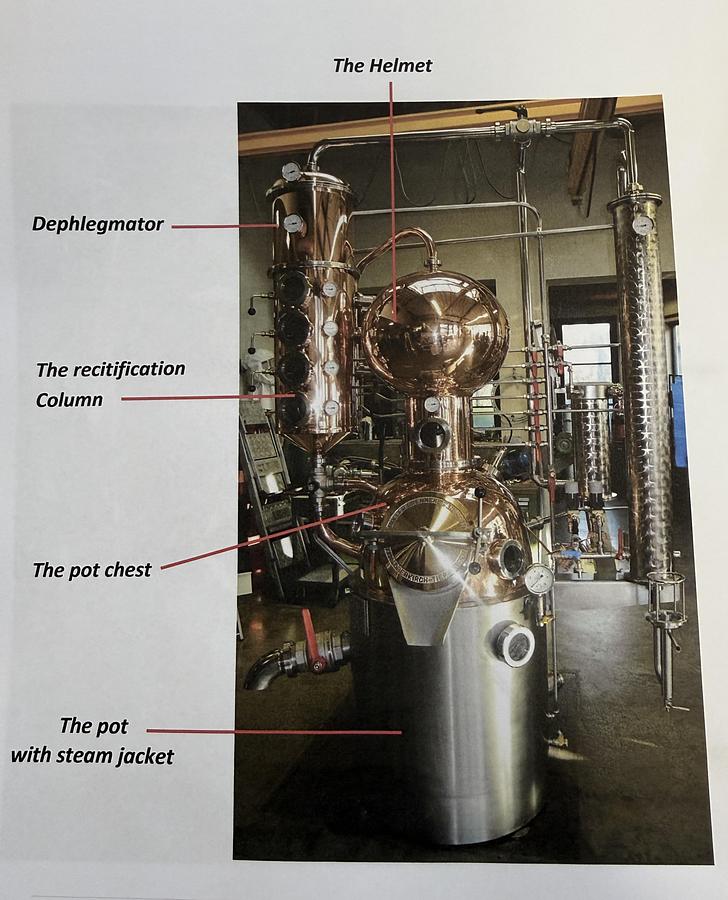

The 100L Muller Electric Pot / Column Still distillation system consists of

1. The Pot with Steam jacket
2. The Pot Chest- holds fermented material or low wines
3. The rectification Column - Muller AROMA III System
4. Dephlegmator
5. The Water bath
6. The Helmet- first point of dephlegmation

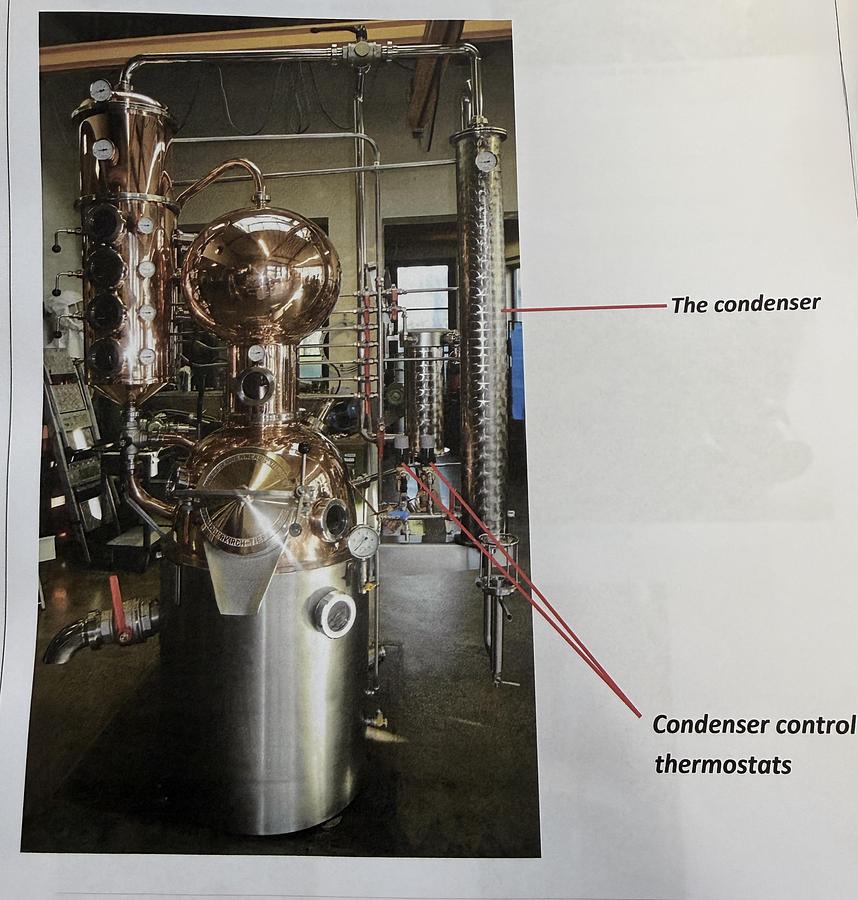

7. The Condenser- changes the aggregate of spirits from vapor back into liquid state
8. Manual Condenser Control Thermostats

CIP (cleaning in place) system 30 liters of water at 96 Deg. C using spray nozzles located above or inside of each part of the whole system

Features:

• Maximizing the contact surface between alcohol vapour and condensate
• Reducing the vapour speed within the column up to 60%
• Increasing time of contact between the copper surface and phlegm
• Integrated plate drainage
• CIP Cleaning via integrated spray balls
