BandAll Model BA48-30-50 Bander, unused

BandAll Model BA48-30-50 Bander, unused•

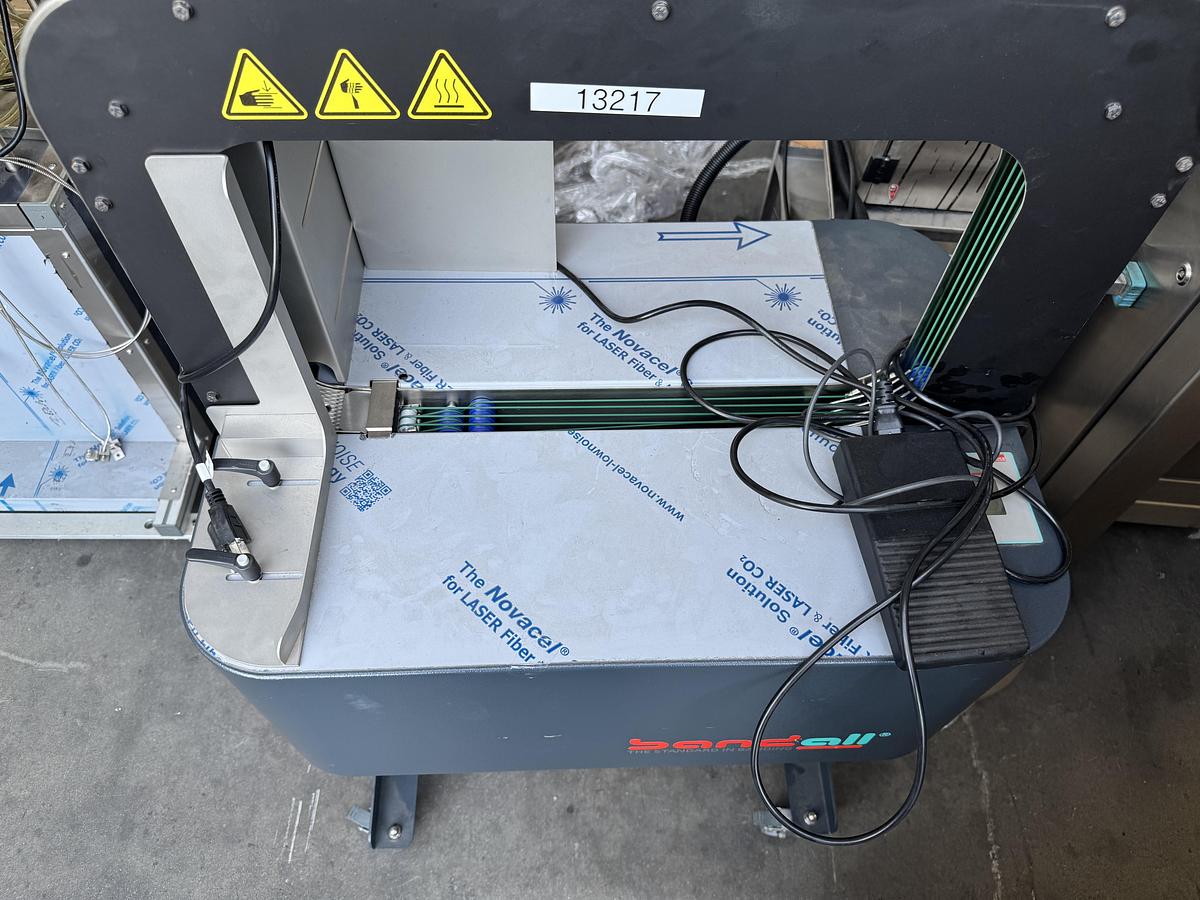

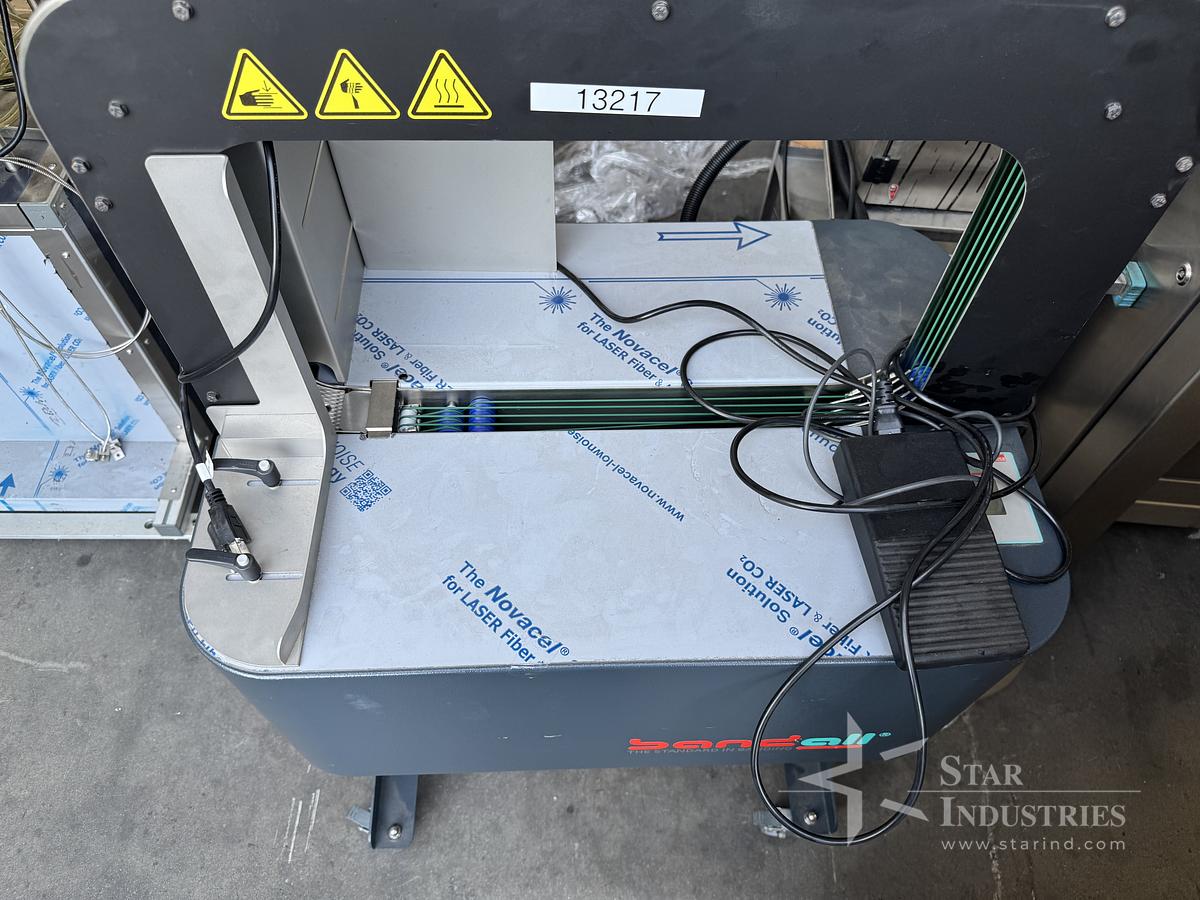

Arch Size: 480mm x 300mm (The "4830" in the model name).

high-performance stand-alone banding machine from the Model BA Series.

This specific 2023 unit is engineered for precision packaging with several key mechanical systems:

The Vacuum Transport System

The BA48-30-50 uses:

• Negative Pressure Guidance: A vacuum pulls the band around the arch, ensuring smooth travel even for materials as thin as 35 microns.

• 50mm Channel: The machine is configured with a 50 mm channel width, designed specifically for 48 mm to 50 mm wide banding material

Material Versatility: The internal feed track is mechanically adjustable to handle various material thicknesses without requiring different change parts.

• Reduced Wear: Because the material is guided by air rather than high-friction mechanical parts, there is significantly less internal wear and tear.

Ultra-Clean Seal (UCS): The machine uses a heat-sealing mechanism that produces a weld-strength bond without the use of adhesives. This is critical for pharmaceutical and food applications where chemical contamination must be avoided.

• Adjustable Tension: A mechanical tensioning motor allows you to set the tightness of the band. This ensures that delicate items aren't crushed while heavy bundles are held securely.

• Cycle Speed: The mechanical timing allows for up to 36 cycles per minute, making it suitable for manual loading or integration into semi-automated lines.

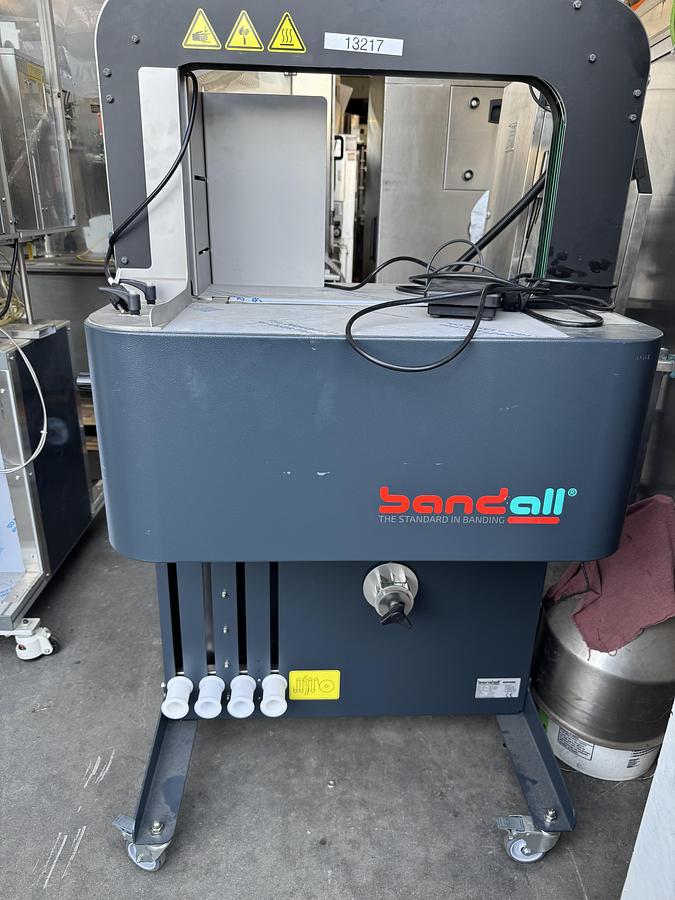

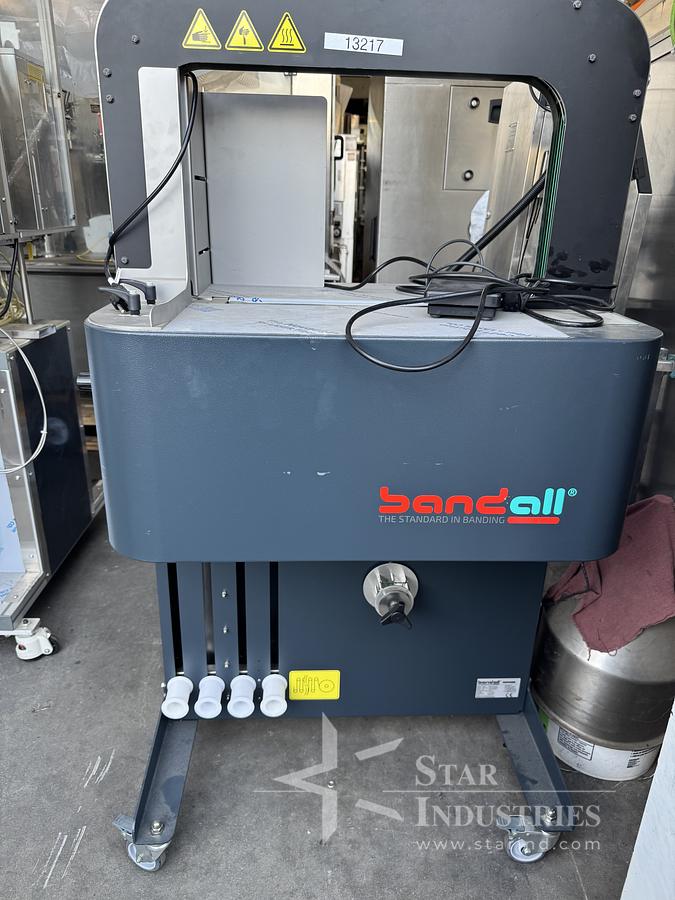

Frame: The unit is built on a stainless steel and anodized aluminum frame, featuring heavy-duty casters for mobility on the production floor.

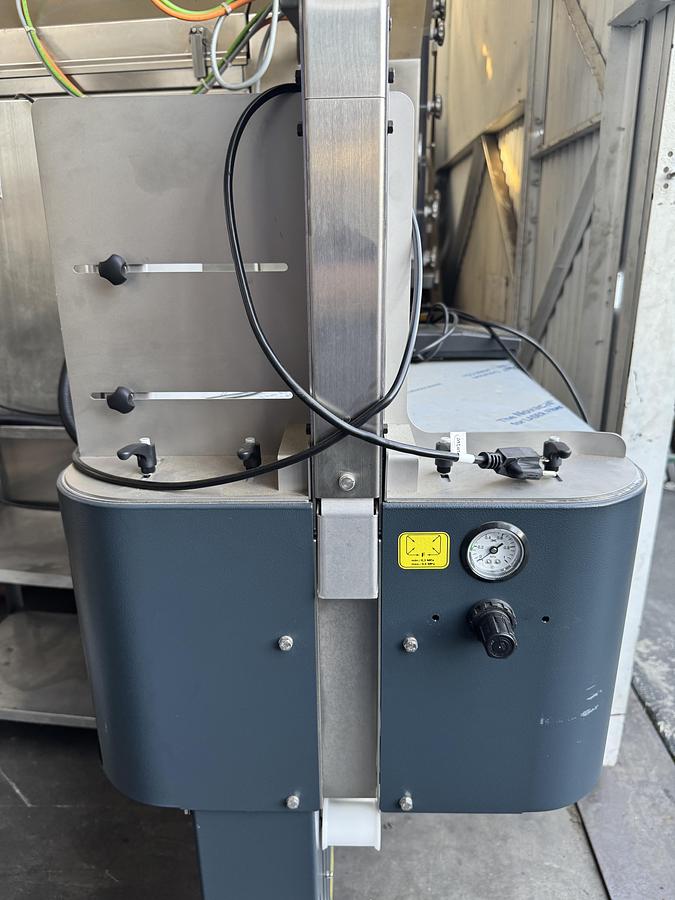

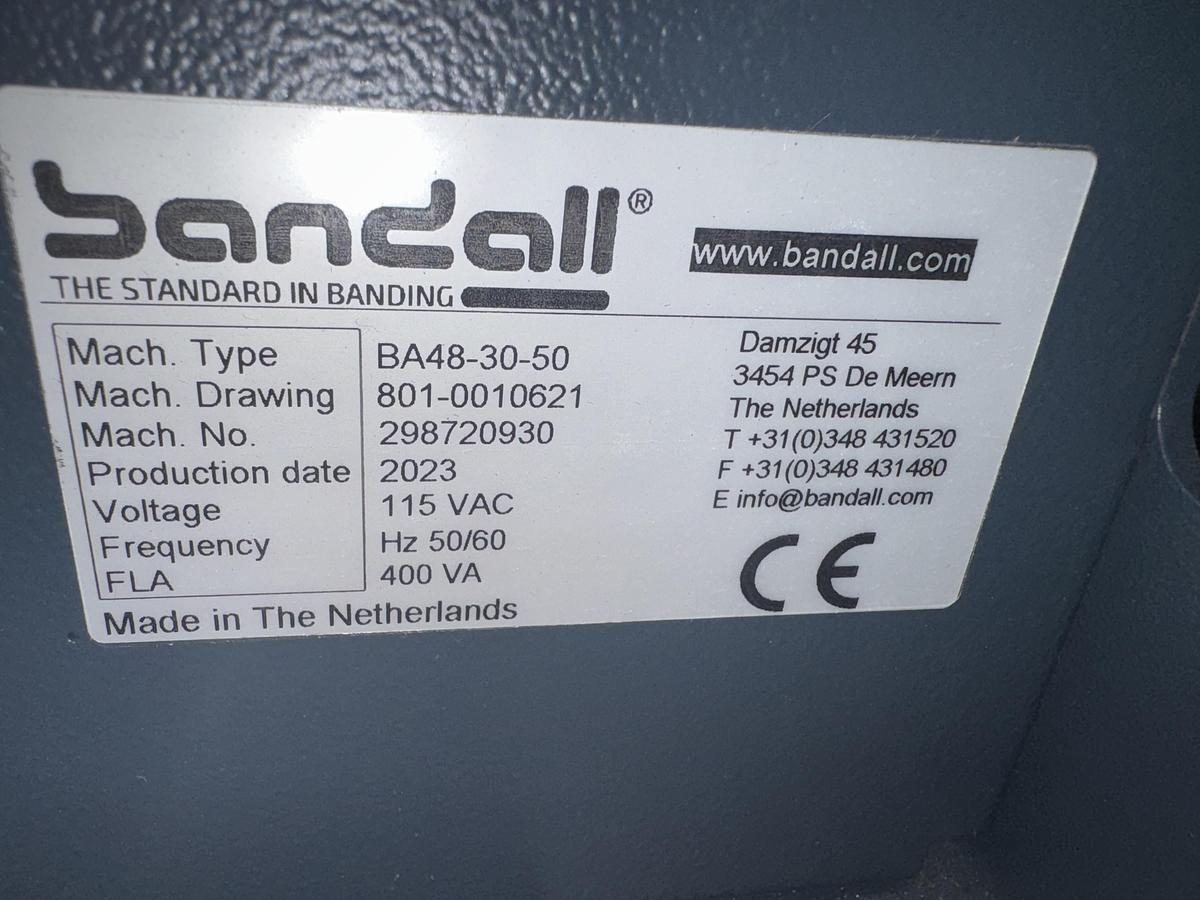

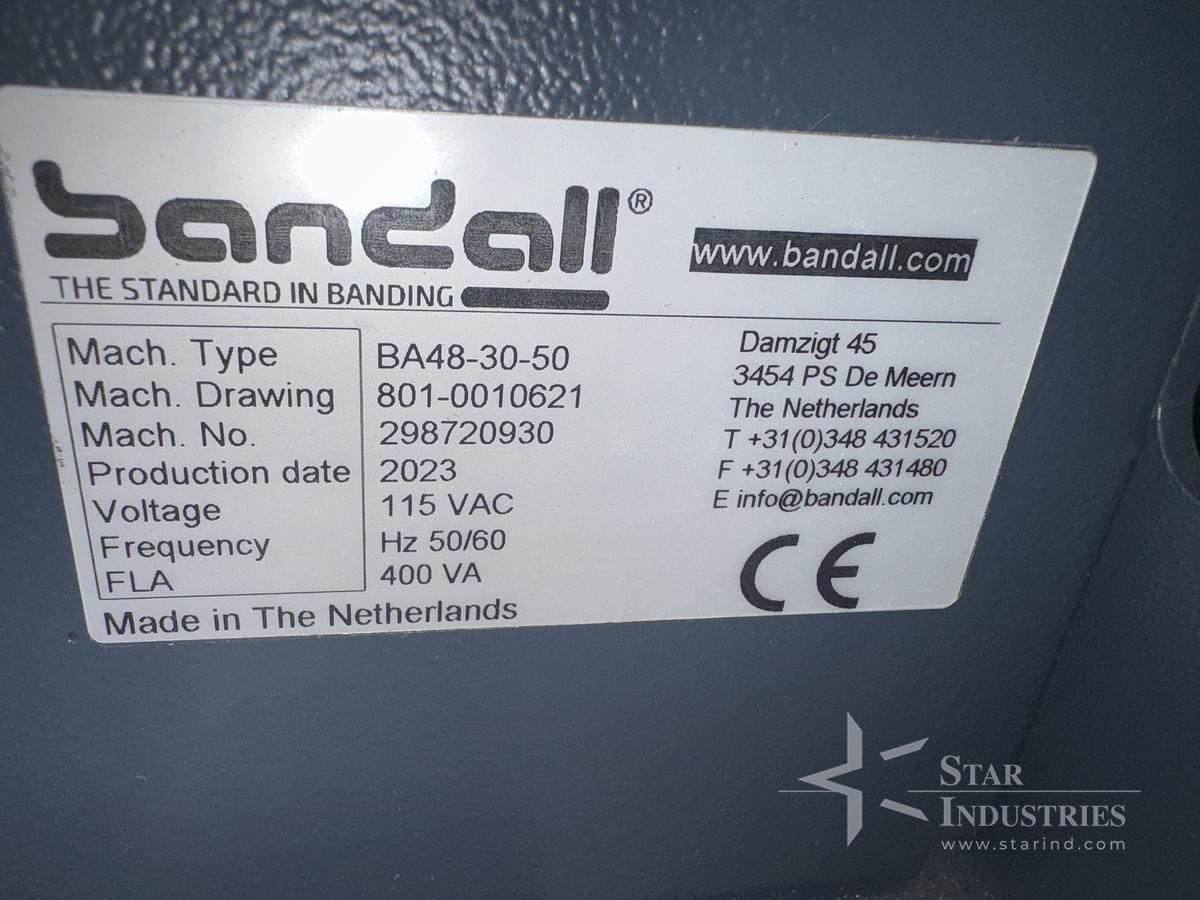

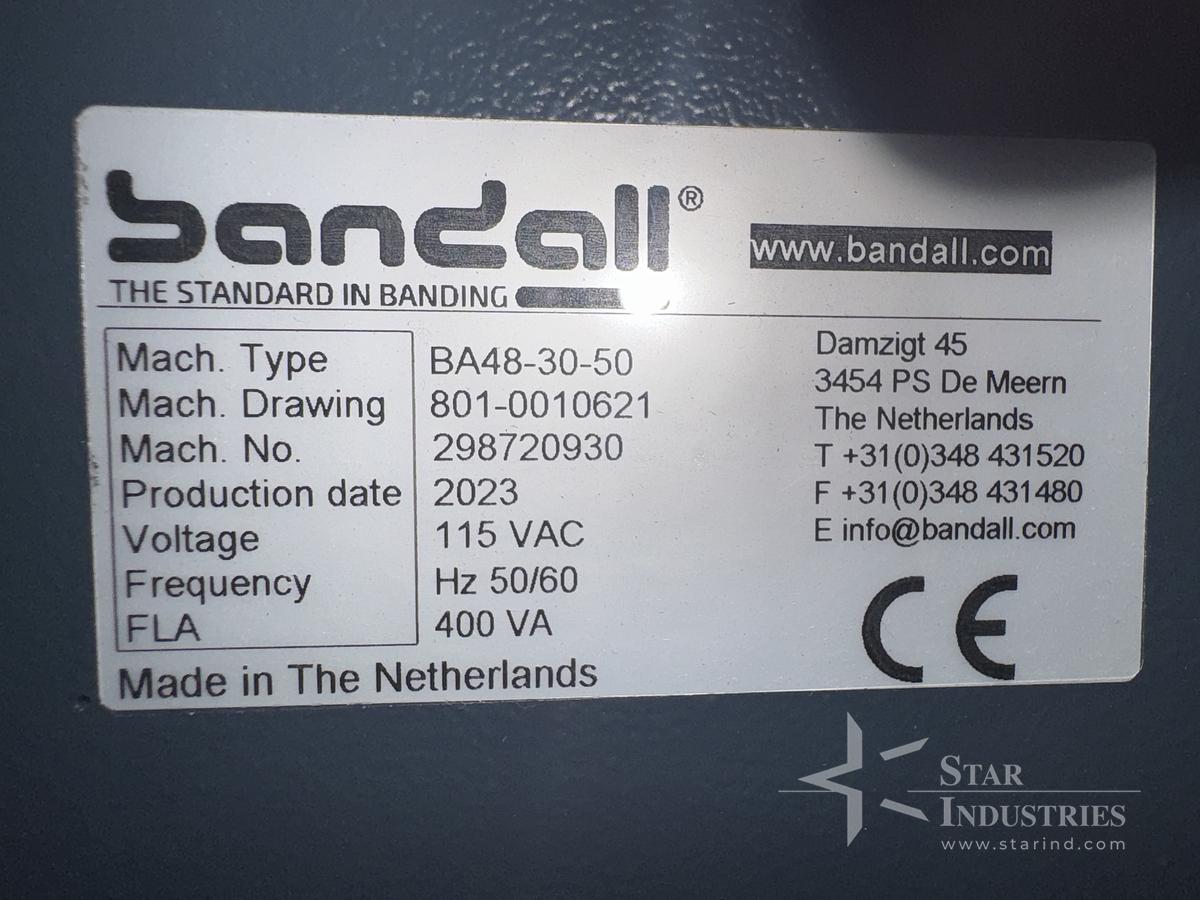

• Pneumatic Requirements: While it runs on 115 VAC power , it also requires a clean air supply to operate the sealing and cutting cylinders.

• Vacuum Feed System: Bandall’s proprietary vacuum transport reduces friction and wear parts, which generally maintains its resale value better than mechanical-feed
