Capsugel Capsule filler Model: CFS1000

Used Capsugel Capsule filler Model: CFS1000

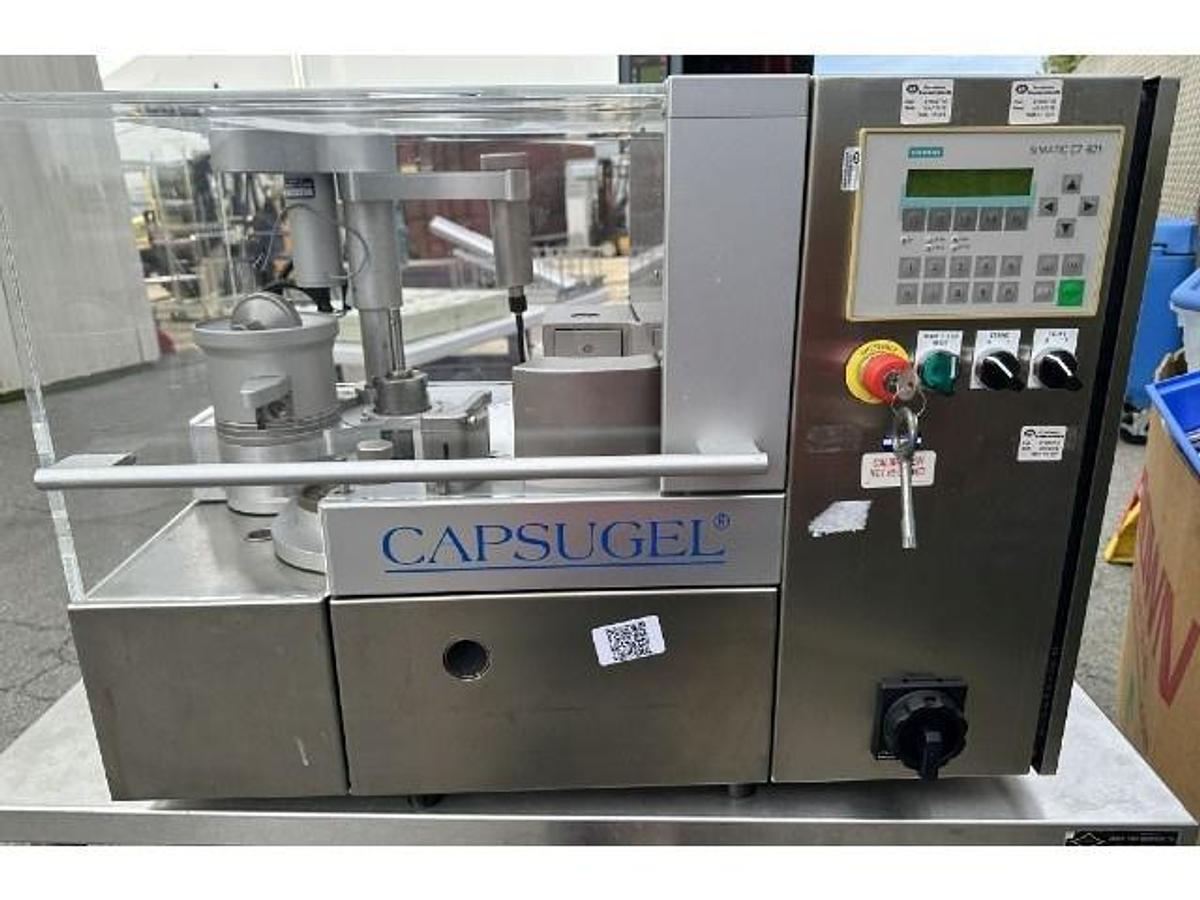

Make:  Capsugel CFS1000 Capsule Filler

Model: CFS1000

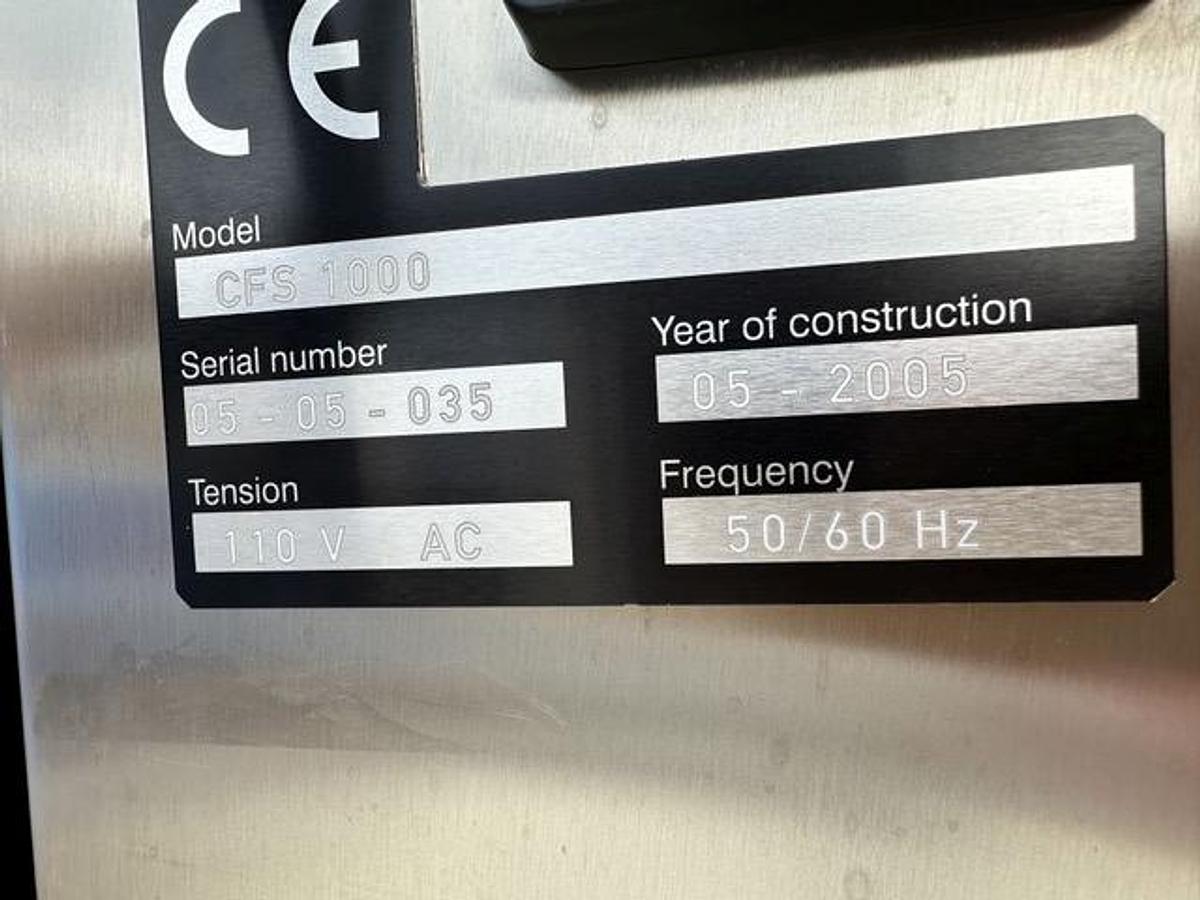

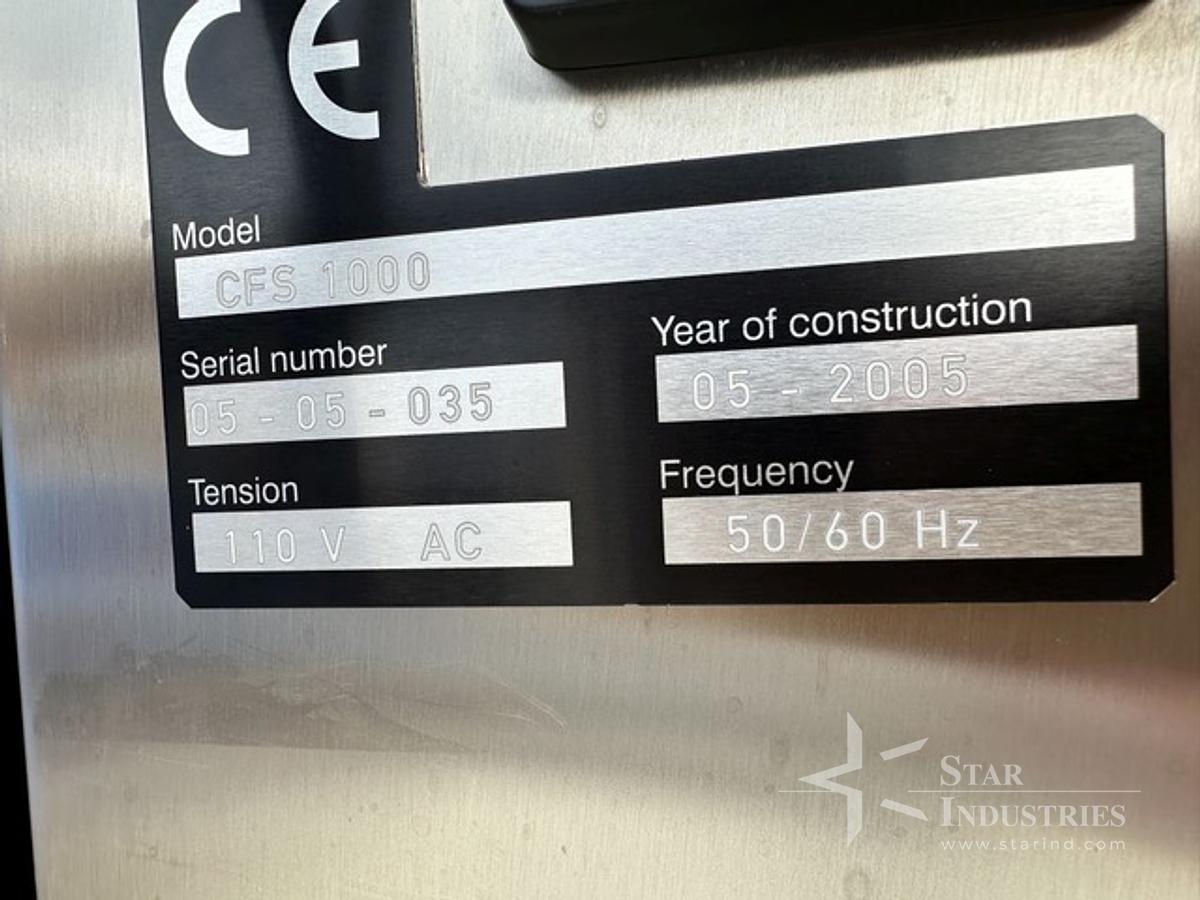

Serial:  05-05-035

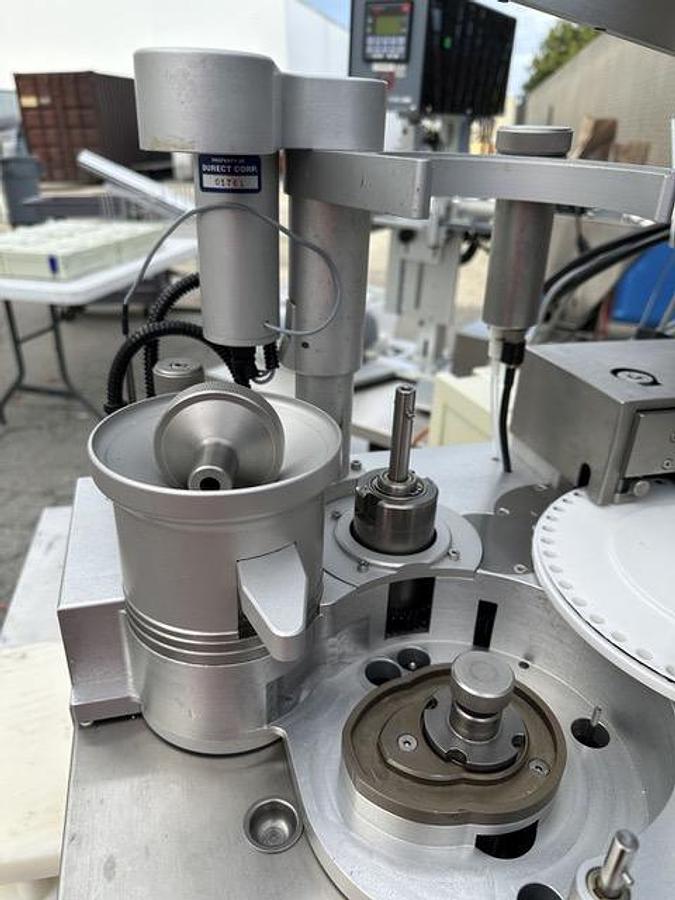

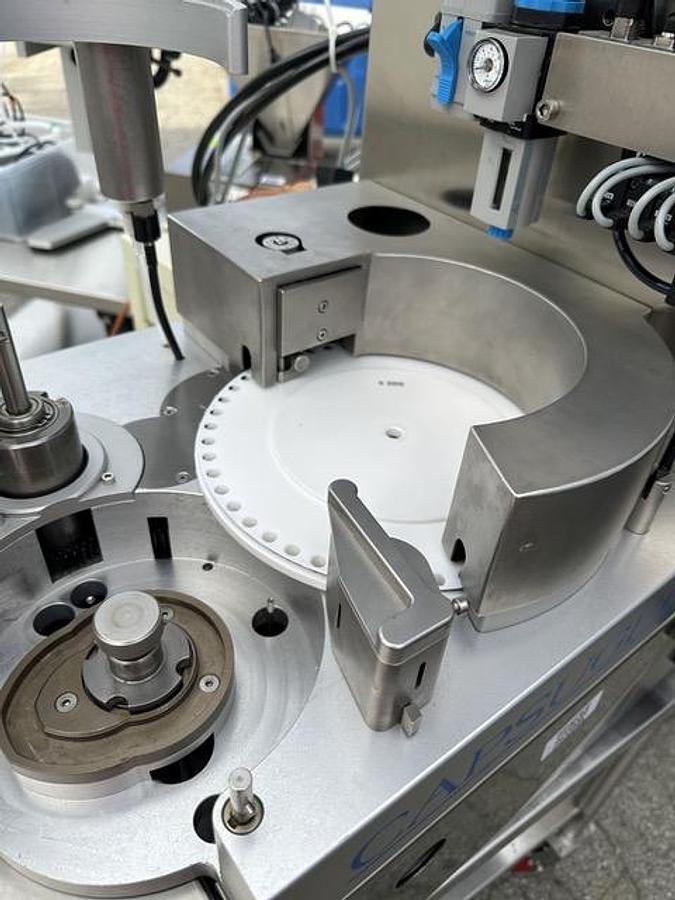

Description:    The Capsugel CFS 1000 is a development-scale capsule filling and sealing machine designed for R&D laboratories and clinical supply operations. It is specifically engineered to handle lipid-based formulations for poorly soluble compounds, allowing for the fully automatic filling and sealing of small batches.  Operating Speed: Up to 1,000 capsules per hour.  110 Volts, 50/60 Hz,Fill Volume Range: 0.1 ml to 1.2 ml.

Fill Viscosity Range: 100 to 1,000 mPa·s.

Filling Temperature: Adjustable from 20°C to 70°C.

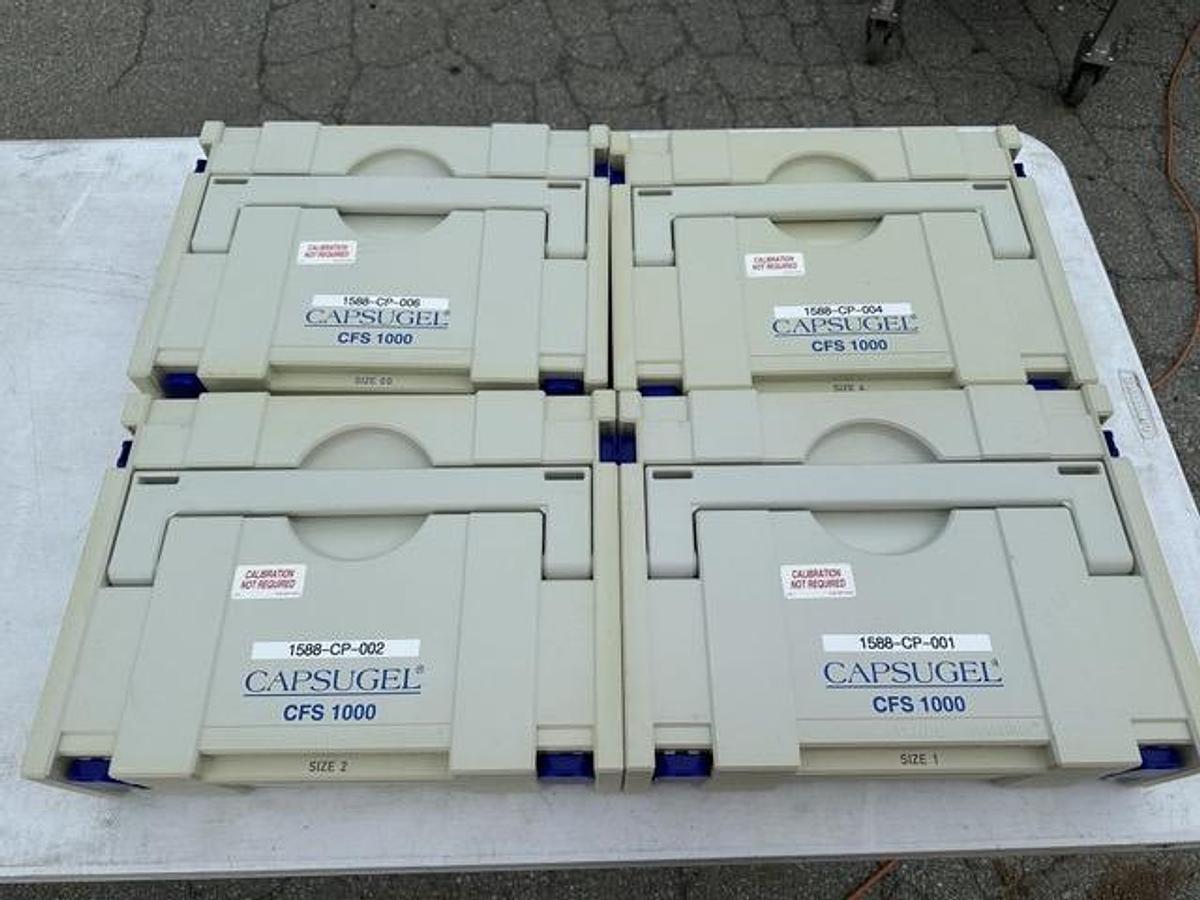

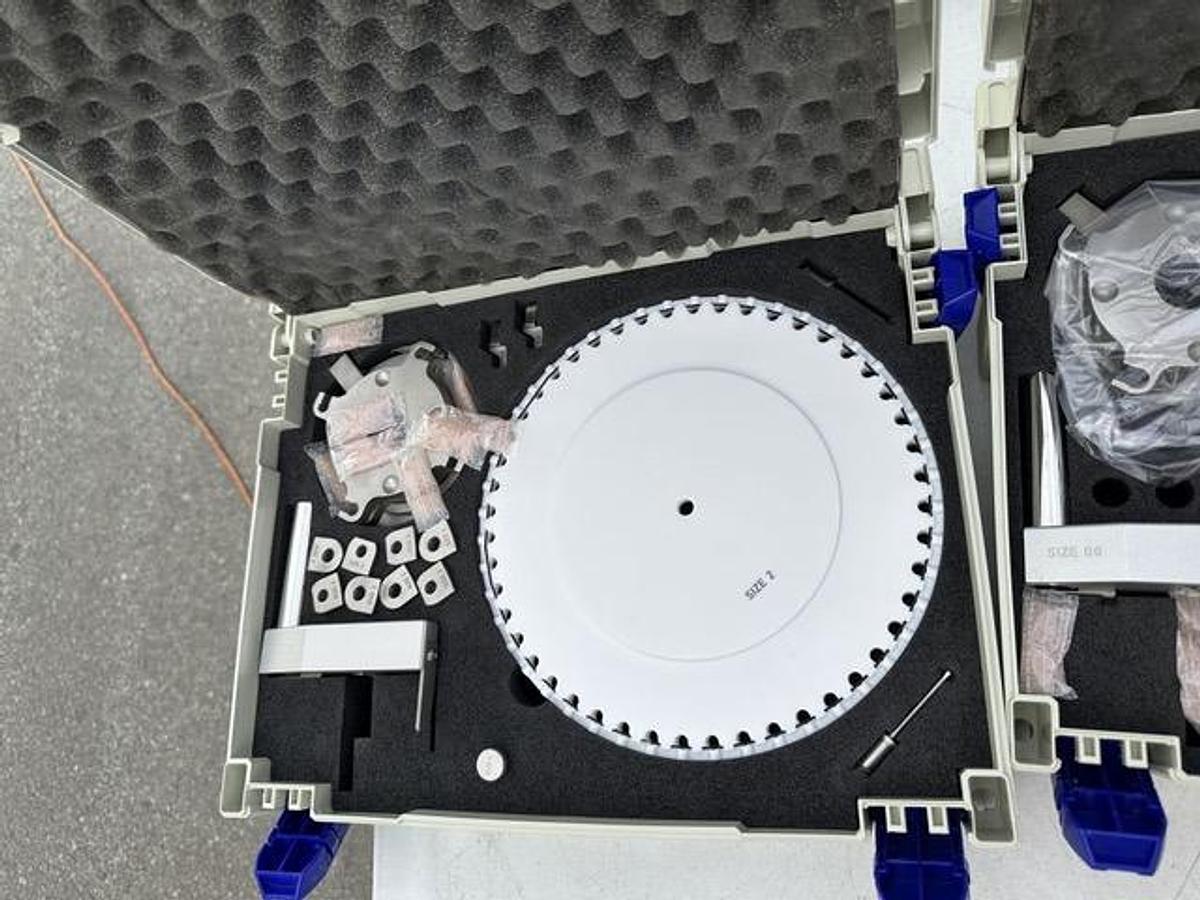

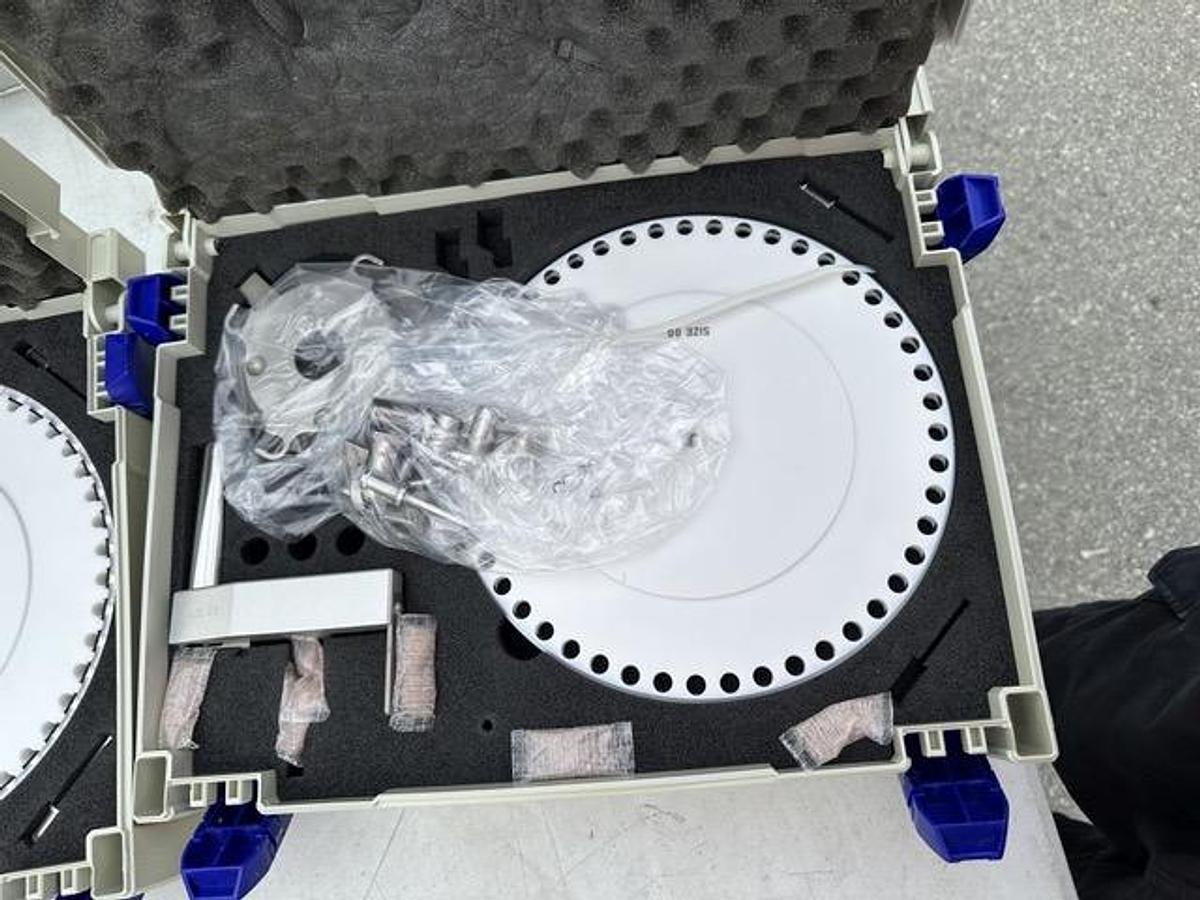

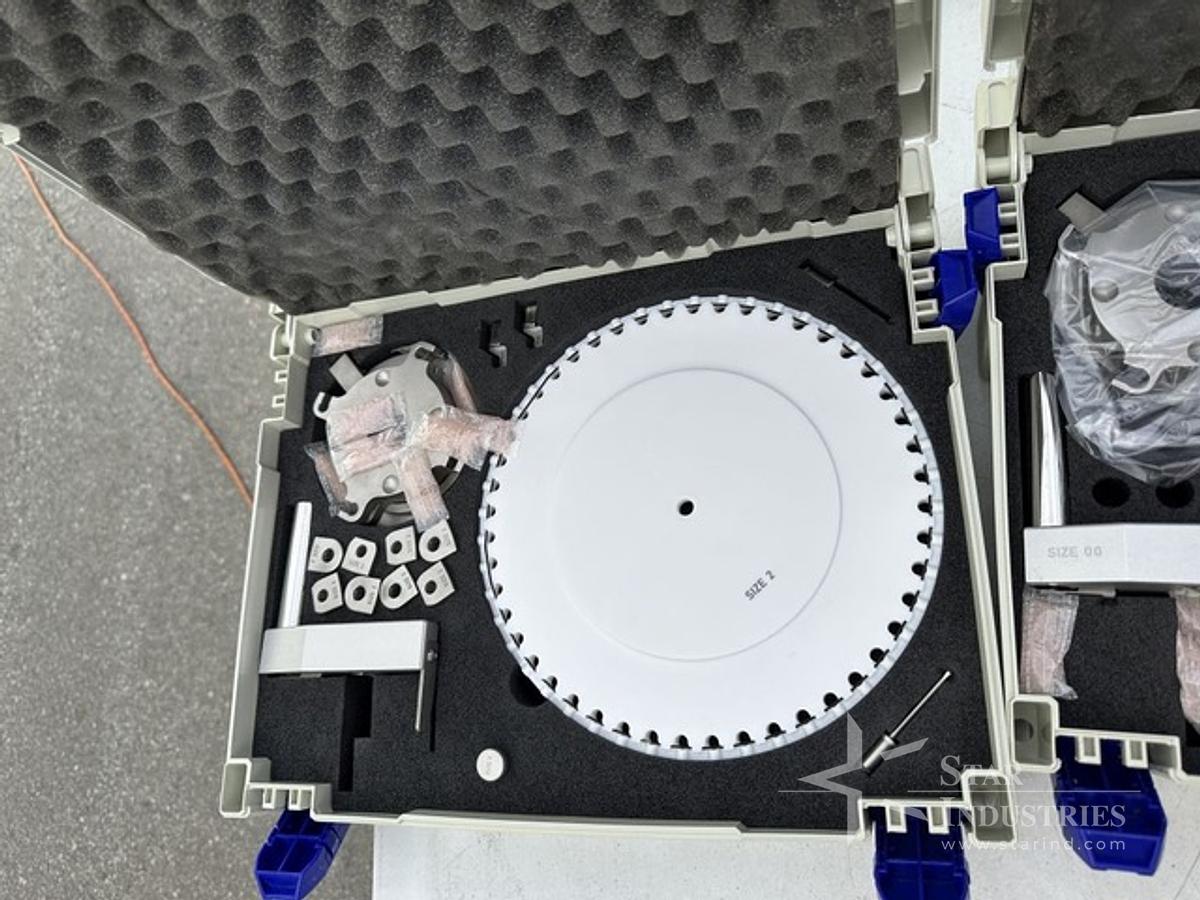

Capsule Size Range: Supports sizes 00el, 00, 0, 1, 2, 3, and 4.

Minimum Batch Size: Recommended at 20–25 ml. Integrated Sealing: Utilizes the proprietary LEMS (Liquid Encapsulation Microspray Sealing) technology, which creates an impervious seal and eliminates the need for external banding.

Compact Design: Bench-top footprint suitable for space-constrained R&D environments.

cGMP Compliance: Designed to meet stringent pharmaceutical manufacturing standards for clinical materials.

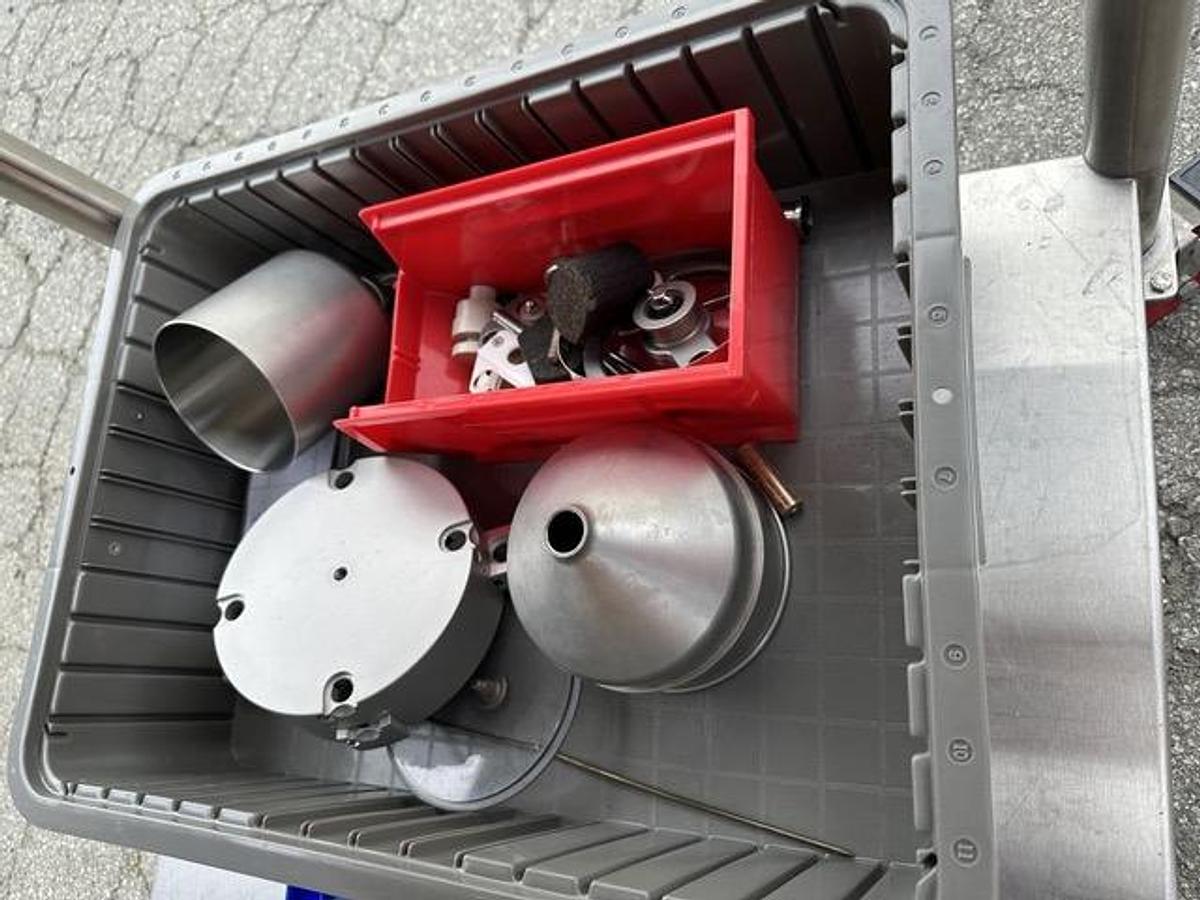

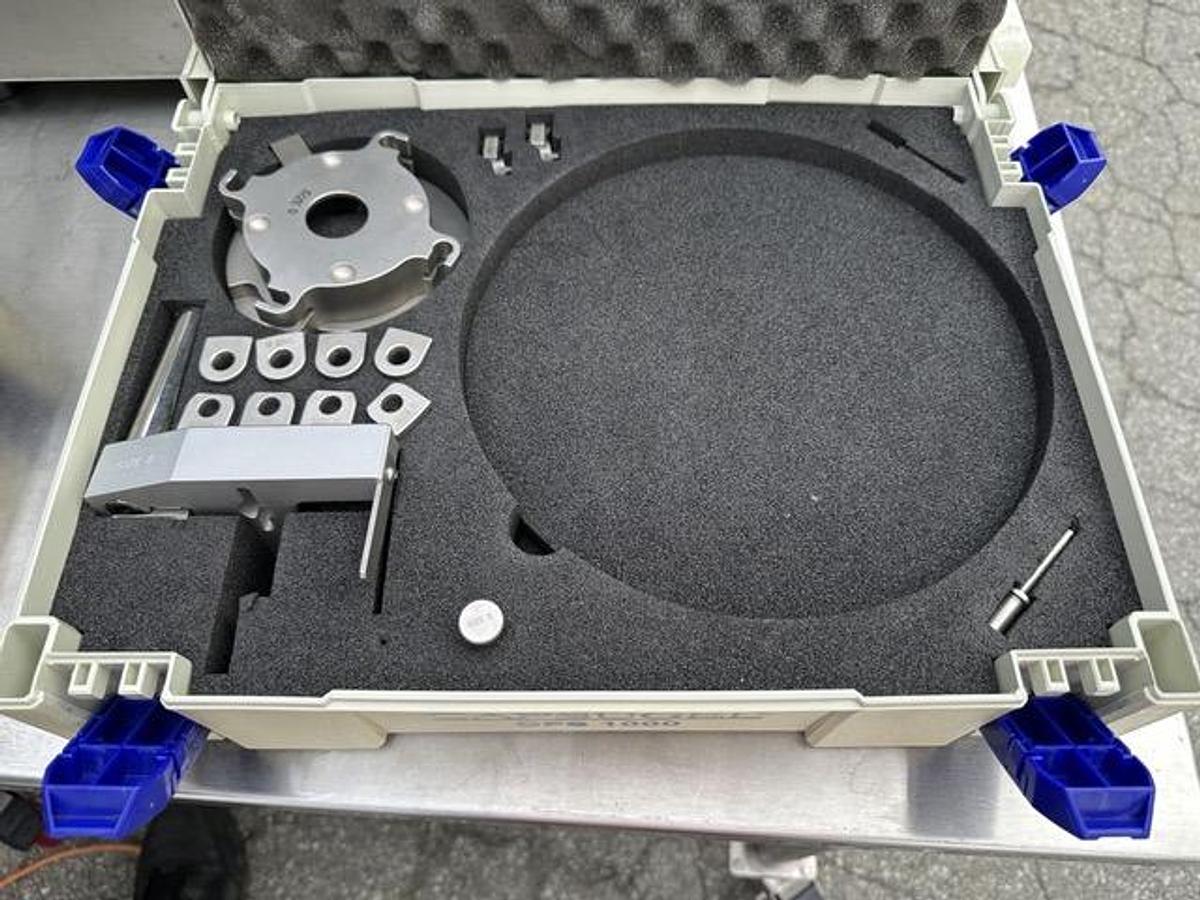

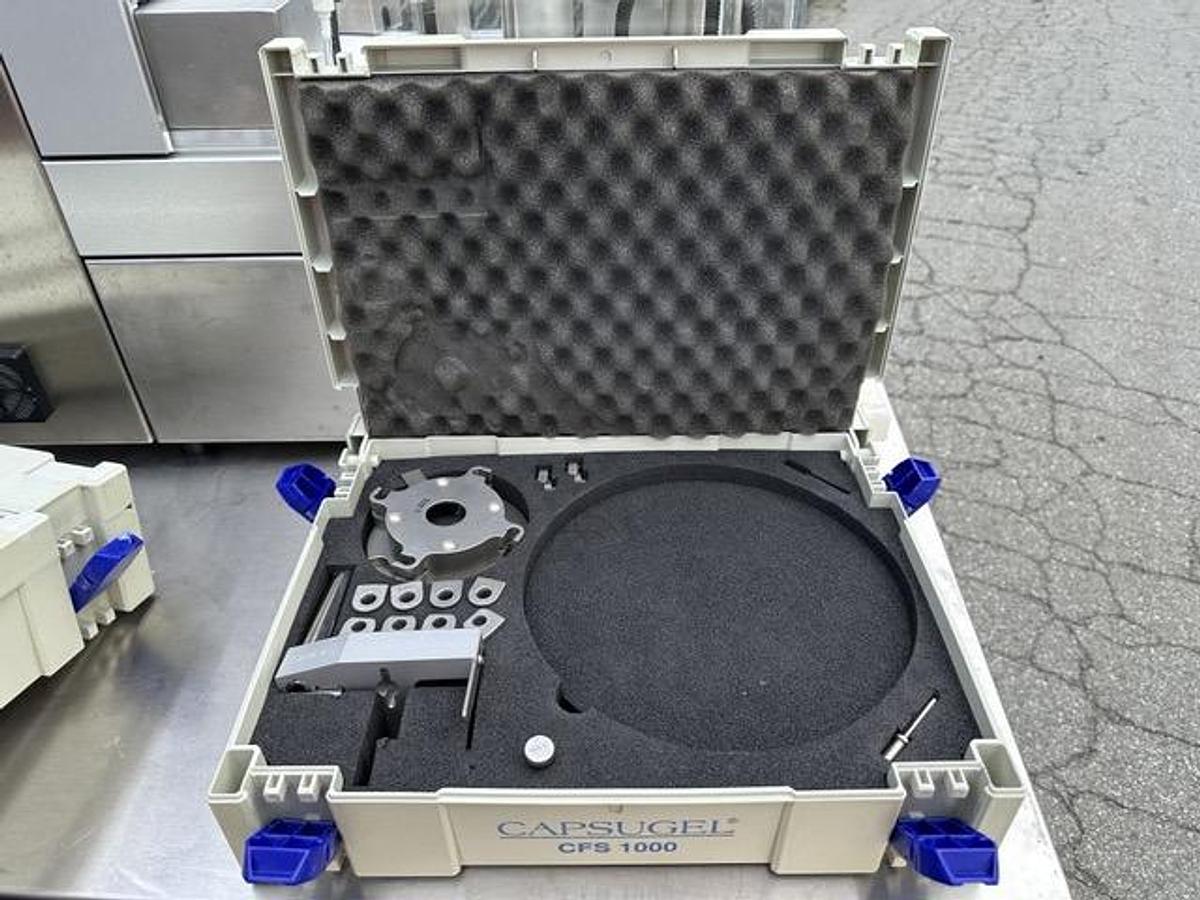

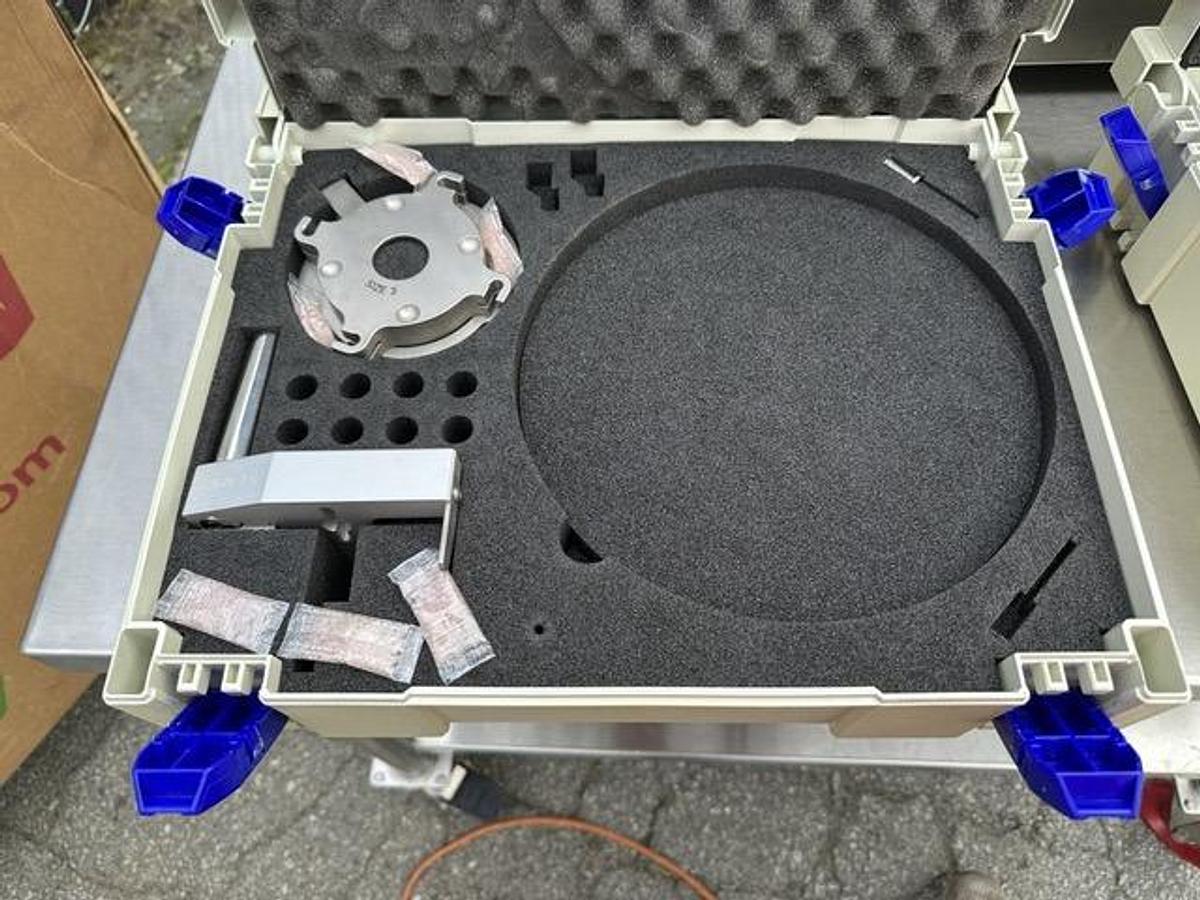

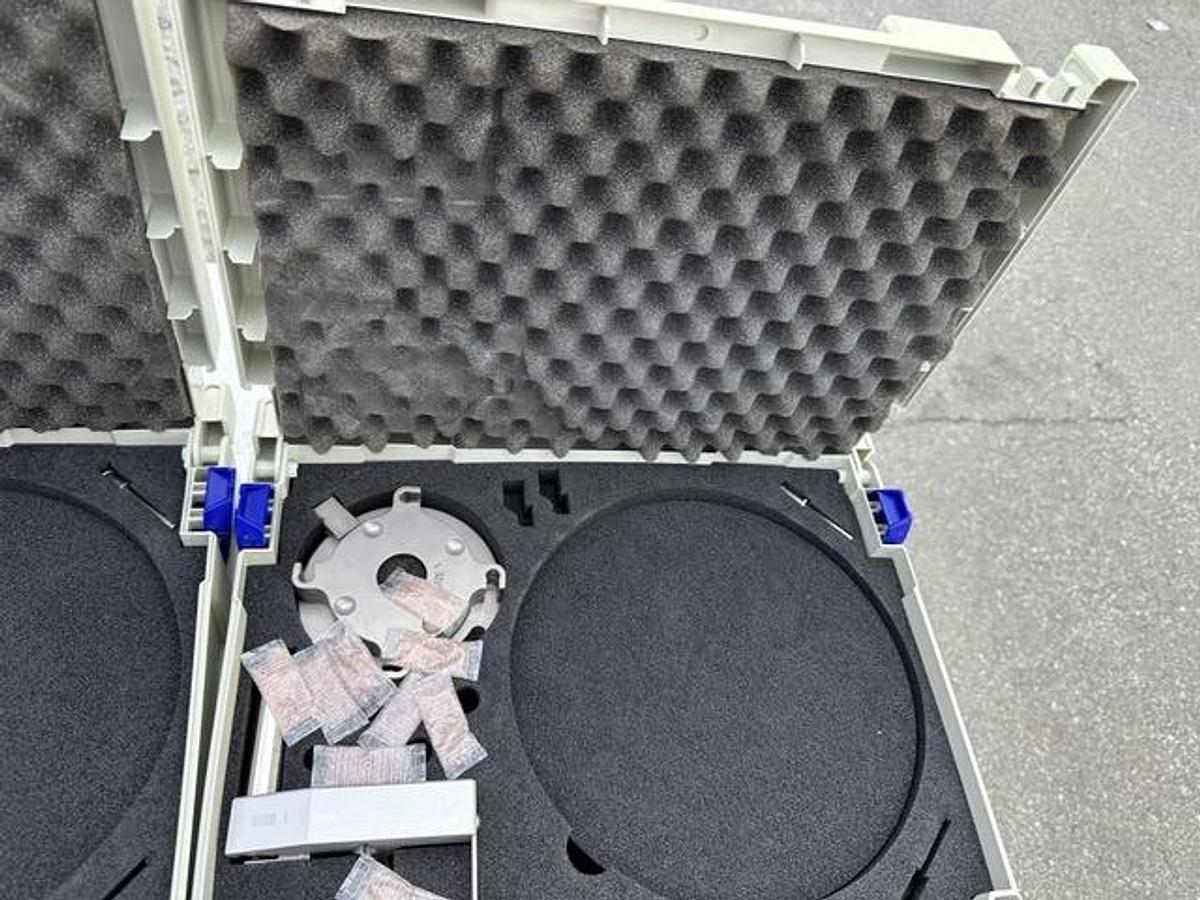

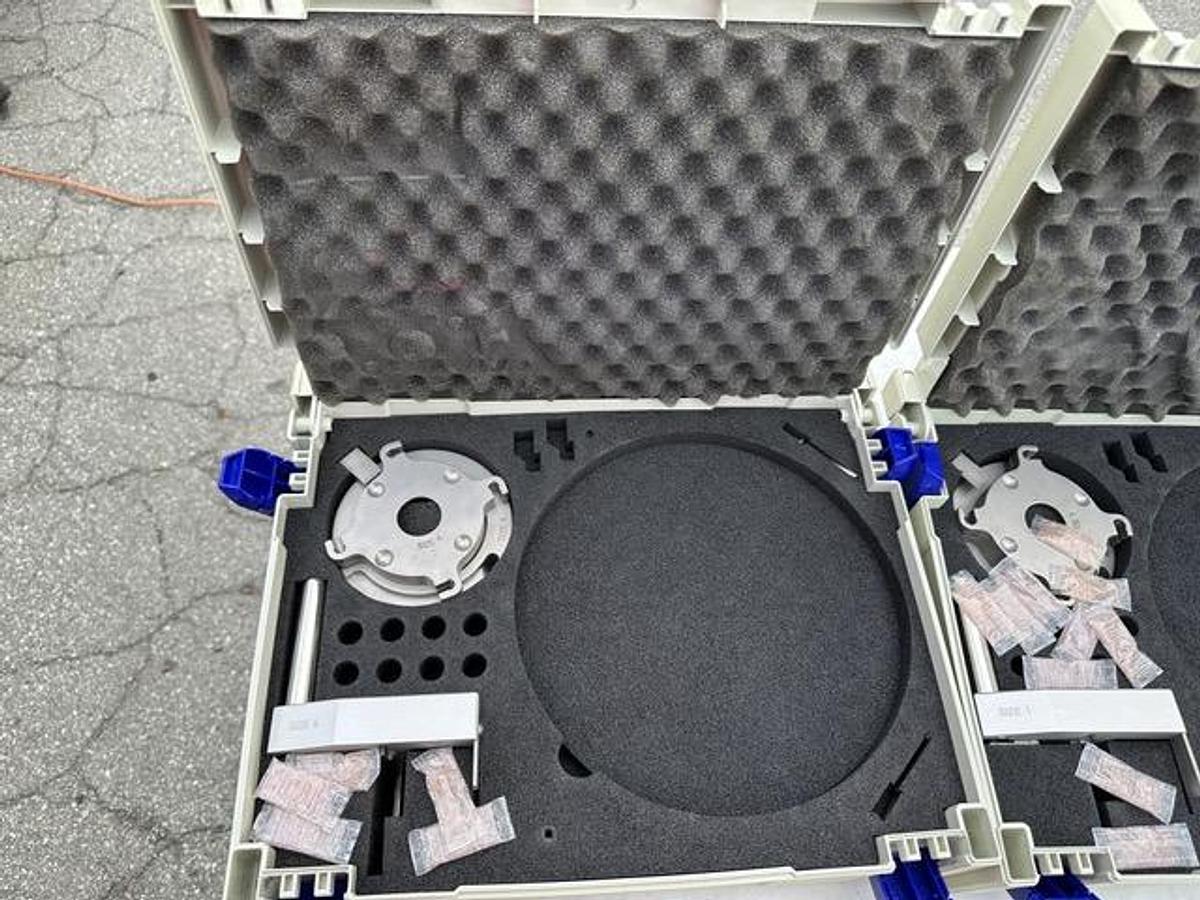

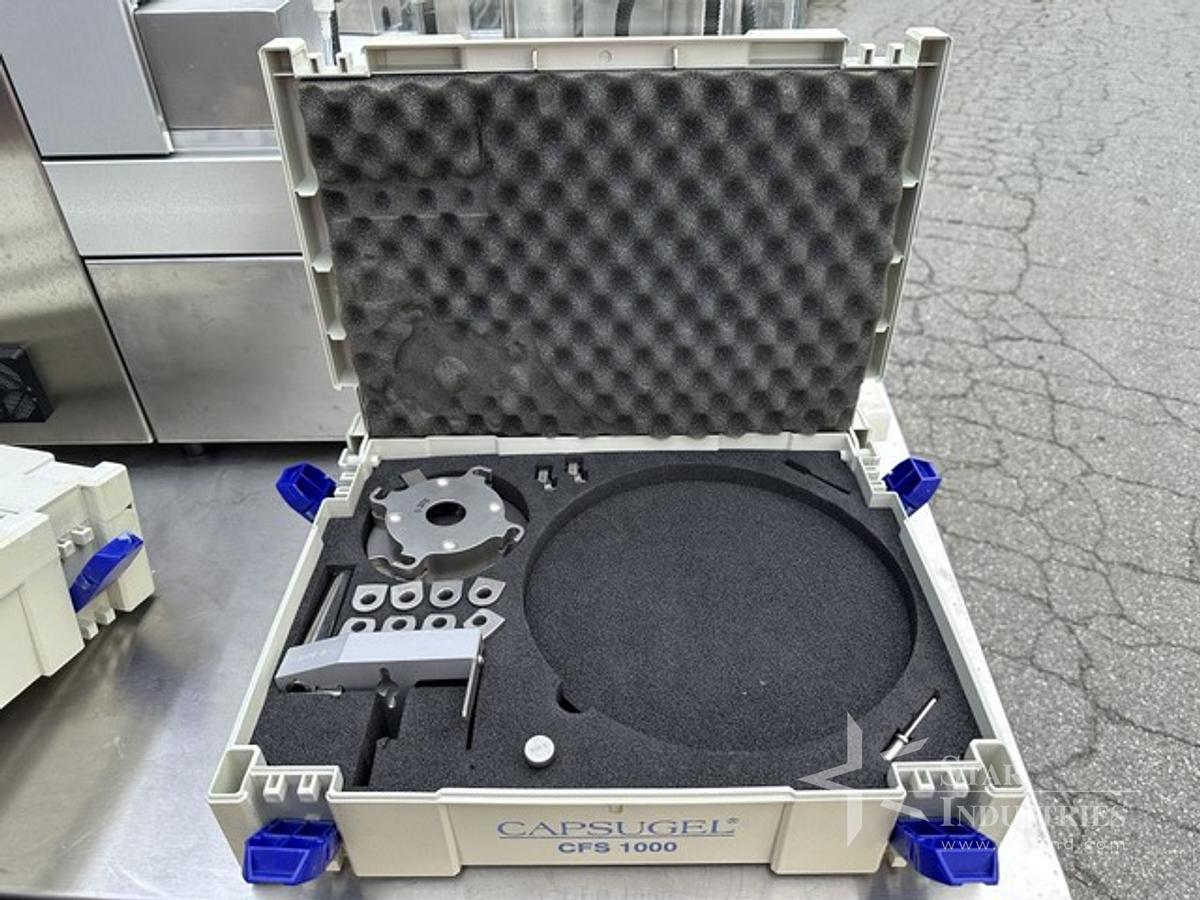

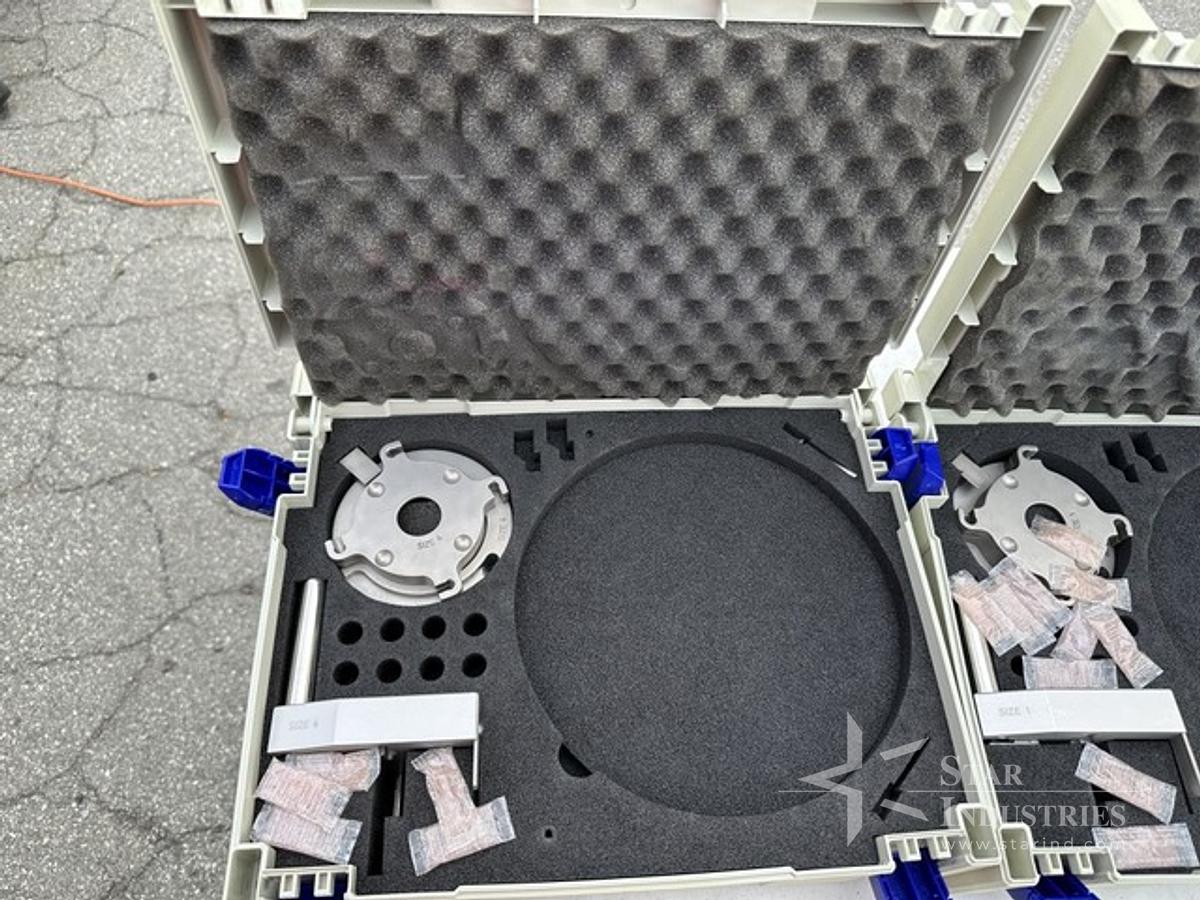

Easy Changeovers: Features tool-free or simplified size changeovers to accommodate different capsule sizes quickly
