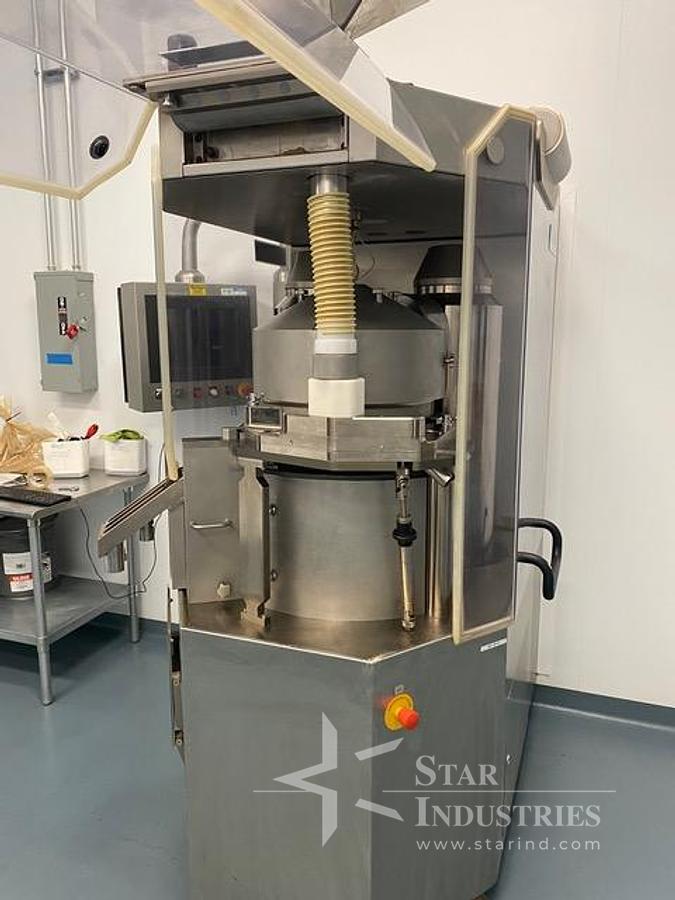

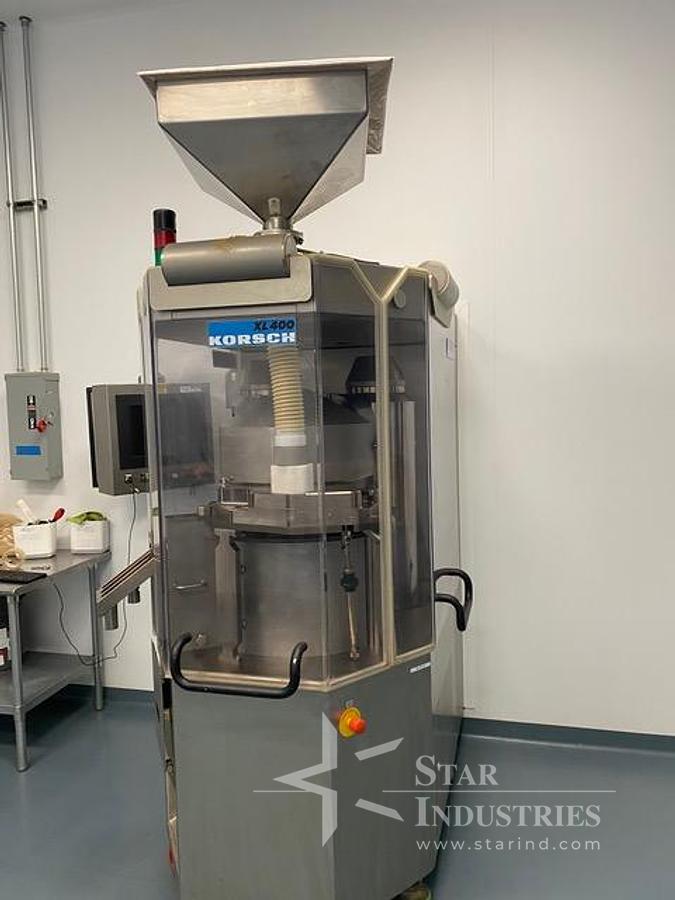

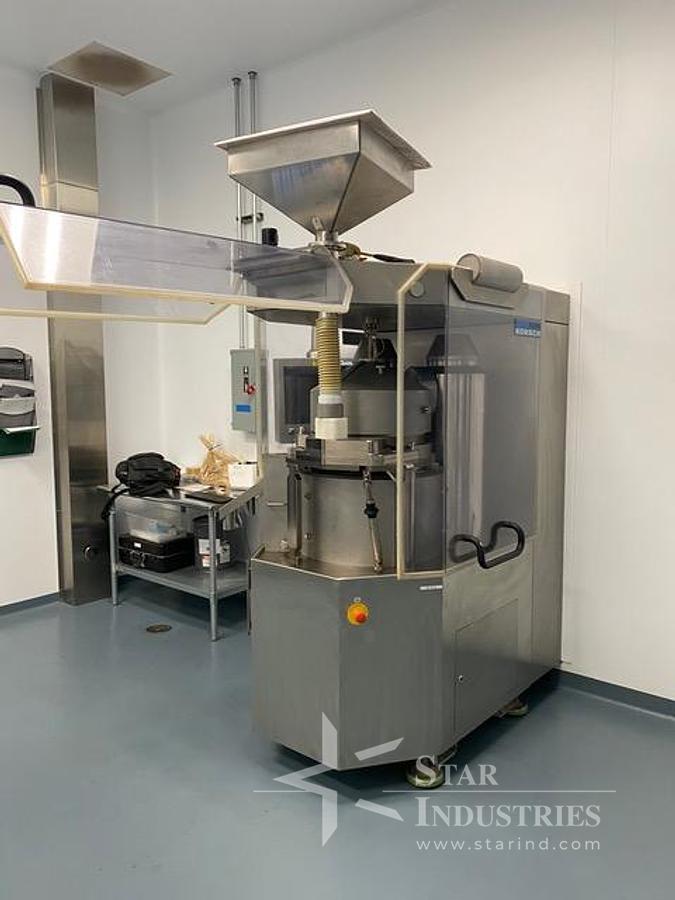

Korsch AG XL 400 High speed Rotary Tablet Press

Korsch AG XL 400 High speed Rotary Tablet Press high-volume pharmaceutical, nutraceutical, and OTC solid-dose tablet production. It is highly regarded for its exchangeable turret design and extreme mechanical rigidity.

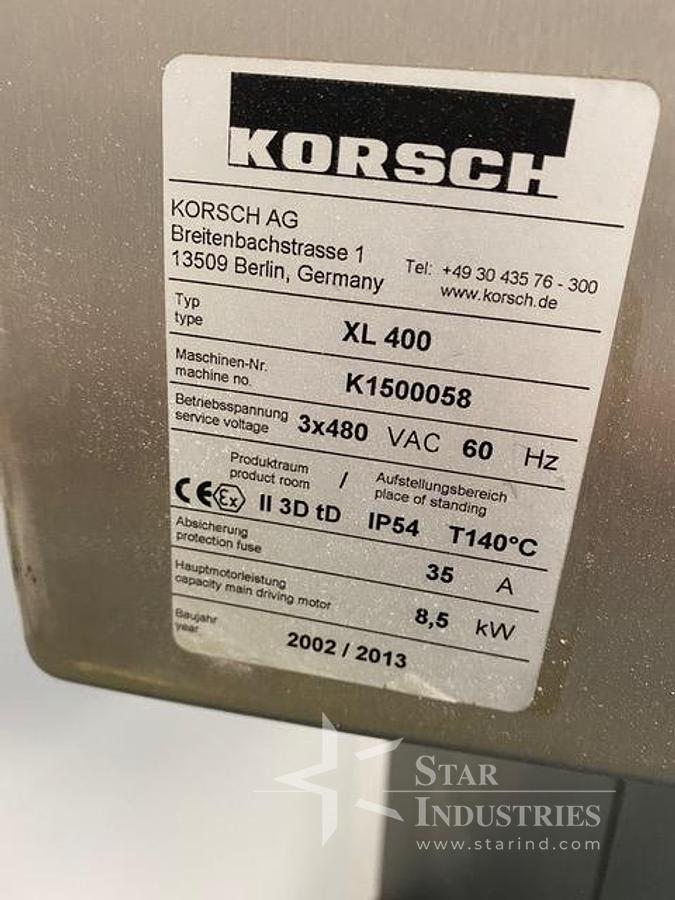

Service Voltage: 480 VAC / 3 Phase / 60 Hz

Main Drive Motor Capacity: 8.5 kW (~11.4 HP)

Required Protection Fuse: 35 A

The machine frame and external enclosures are dust-protected and splash-proof (IP54), with a maximum safe surface temperature rating of 140°C.

Tooling Type Standard Station Count Max Tablet Diameter Max Fill Depth Max Output Capability

D Tooling 29 Stations | 25 mm | ~22 mm | Approx. 174,000 tablets/hr |

B Tooling 35 Stations | 16 mm | ~18 mm | Approx. 252,000 tablets/hr |

BB Tooling 44 Stations | 12 mm | ~18 mm | Approx. 310,000 tablets/hr |

Maximum Main Compression Force:100 kN

Maximum Pre-Compression Force: Up to 100 kN

Maximum Tablet Thickness: 8.5 mm
