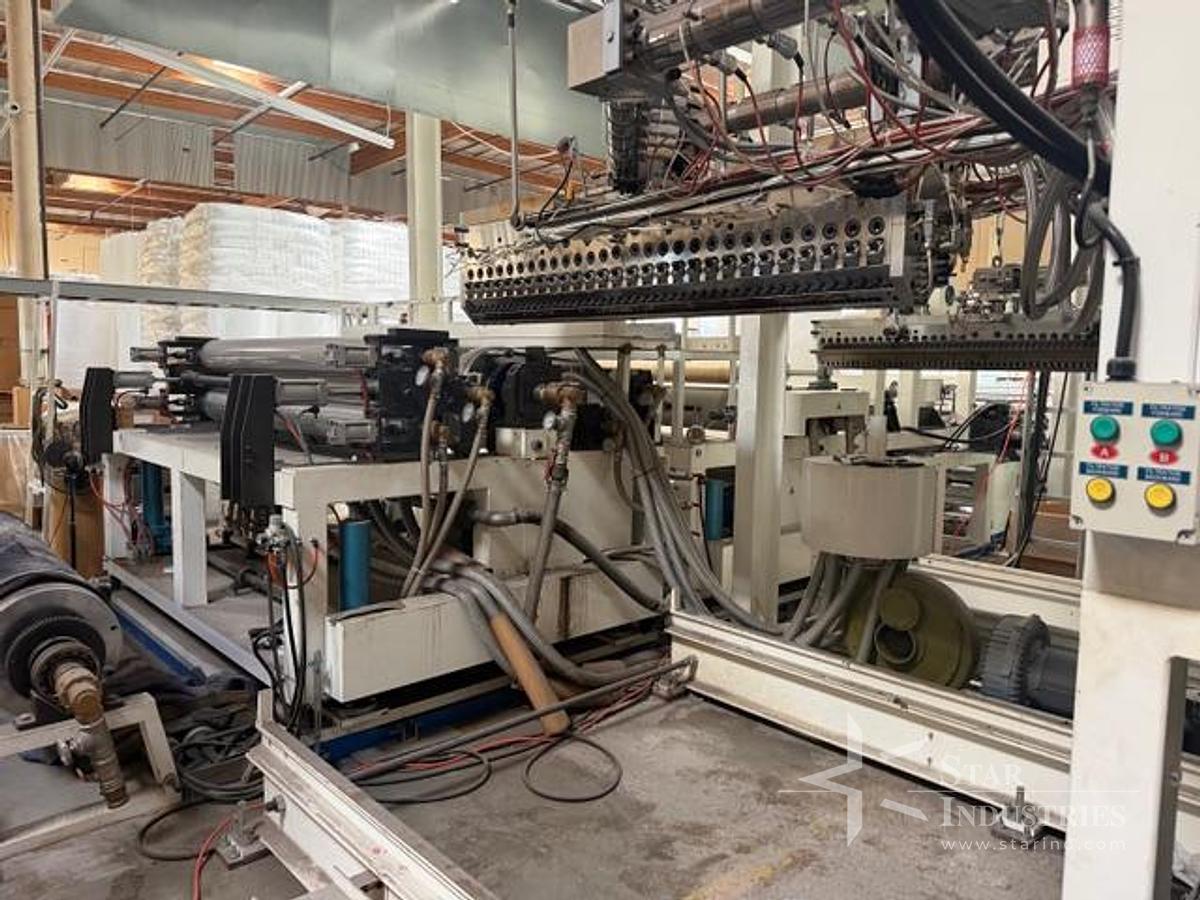

85/65/65 MM 3 Layers/2 Layers Air Bubble Sheet Line

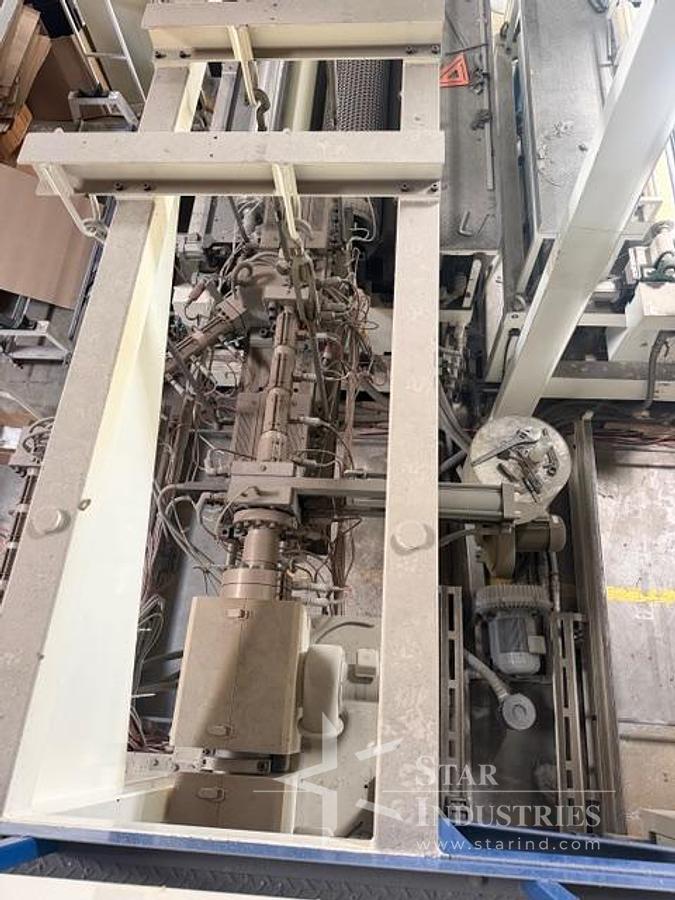

Used 85/65/65 MM 3 Layers/2 Layers Air Bubble Sheet Line

Model no: CC/BS-85/65D-1800W

Specification:

Raw material Applicable: LDPE Resin(Film Grade)

Final Product Specification: 72" (1829)mmW/0.025-0.15mm thickness

Bubble Size: 3/8"(9.525mm)dia x 1/8"(3.18mm)H

Production Speed: 15-40M/min(depending on thickness)

Mechanical Speed: unto 50M/min

Production Capacity : 200-320Kg/Hr (depending on thickness)

with 3rd Extruder, Extrusion Capacity: 440kg/hr

Operational Power Consumption :195 kWs (Max)

Normal Operation Power Consumption 145 kWs appox.

Total Water Consumption :80L/min

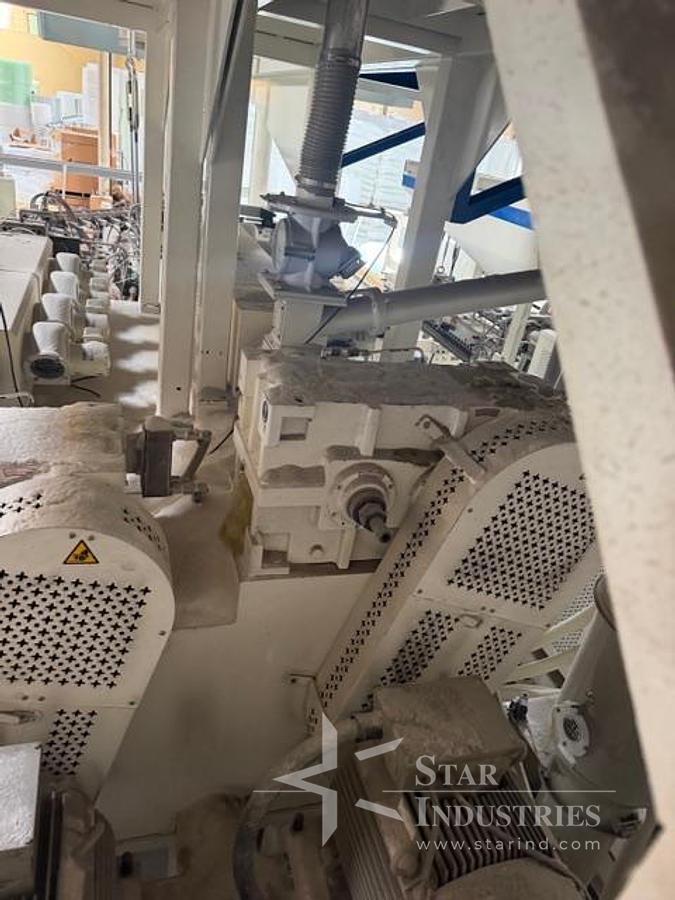

85mm Extruder

Screw: Single screw type

Barrel Material: SACM-845 Alloy Steel

Gear Box: Reduction Gear type

Hopper: 150 lit Capacity, Stainless Steel, Center feed jacketed type

Extruder Movement : 1 unit with 1HP brake motor

Hydraulic Screen Changer: 1 unit

Extruder main Drive Motor: 75HP AC motor+inverter

Electricity Control Panel: Separated & Independent Type

65mm Extruder

Screw: Single screw type

Barrel Material: SACM-645 Alloy Steel

Gear Box: Reduction Gear type

Hopper: 100 lit Capacity, Stainless Steel, Center feed jacketed type

Extruder Movement : 1 unit with 1HP brake motor

Hydraulic Screen Changer: 1 unit

Extruder main Drive Motor: 75HP AC motor+inverter

Electricity Control Panel: Separated & Independent Type
