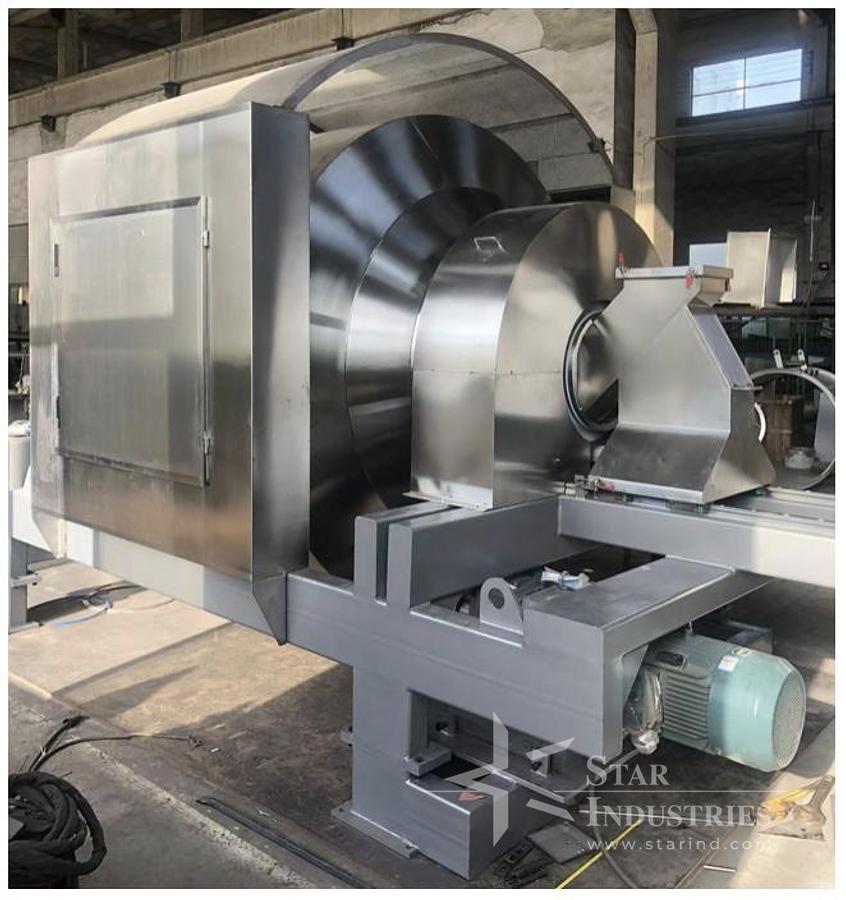

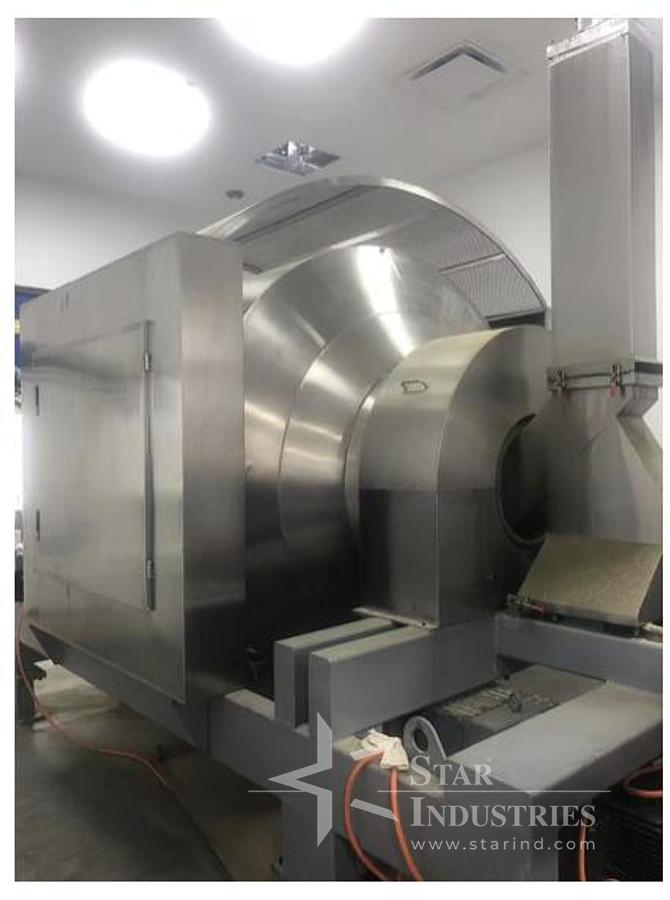

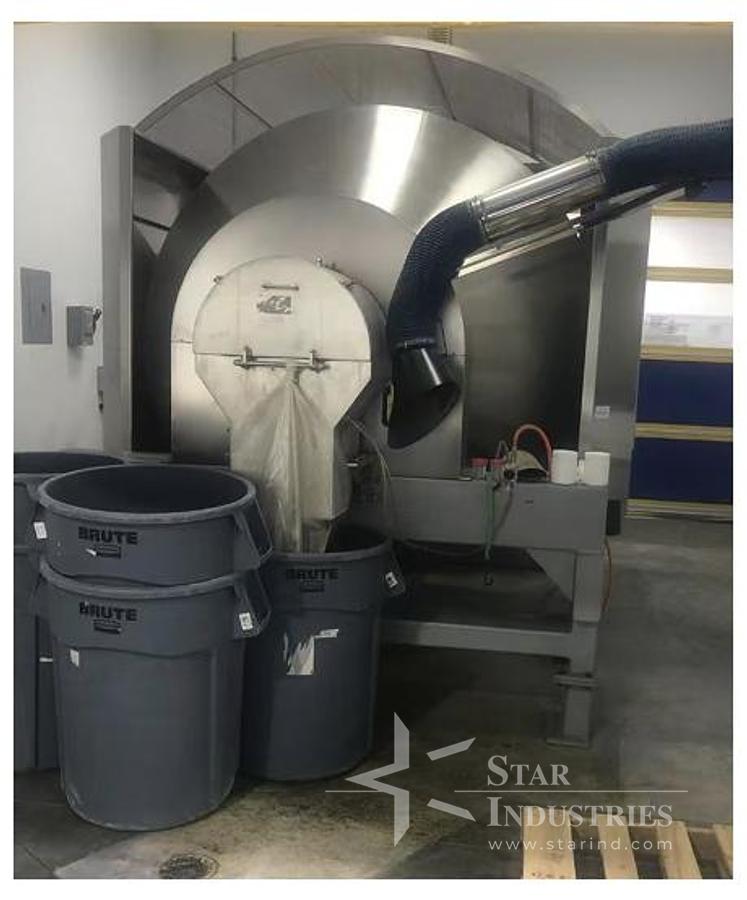

MH-7000 Rotary Batch(Powder) Mixer

The MH-7000 Mixer Rotary Batch Mixer delivers uniform particle distribution, uniform liquid additions, cycle times under 3 minutes, gentle product handling, the lowest energy consumption, and complete discharge with no segregation. It also cleans and sanitizes quickly and easily preventing cross-contamination.

MH's unique, four-way mixing action gently folds, tumbles, cuts and turns the material, producing a thorough blend in only 1 to 3 minutes, while imparting minimal energy and intensity to the product.

Equipment composition:

The equipment mainly consists of a base, transmission system, feeding system, discharge system, mixing cylinder, and electrical control system.

1. Machine base: steel and painted.

2. Transmission system: Electric motor, a reducer, a sprocket, and a chain, smooth operation, and low noise.

3. Feeding system :double guide rails, feeding hopper, travel limit, and sealing device

4. Discharge system : Discharge cover, discharge plug, pneumatic system, manual switch, and sealing device

5. Mixing cylinder : Stainless Steel cylinder body, a feeding end, a discharging end, and an internal board.

6.Electrical operation box: Provide an operation control panel. Upgraded to US Electrical requirements

Main Performance:

1. 1to 3 minute cycle times

2.Uniform dry blends and liquid additions

3.Gentle mixing

4.Total discharge with no segregation

5.Ultra-fast cleaning and sanitizing

6.Full interior access

7.Low energy costs

8.Stationary inlet and outlet

9.Wide range of flexible capacities

10.Dust-tight operation

11.Long life with minimal maintenance
