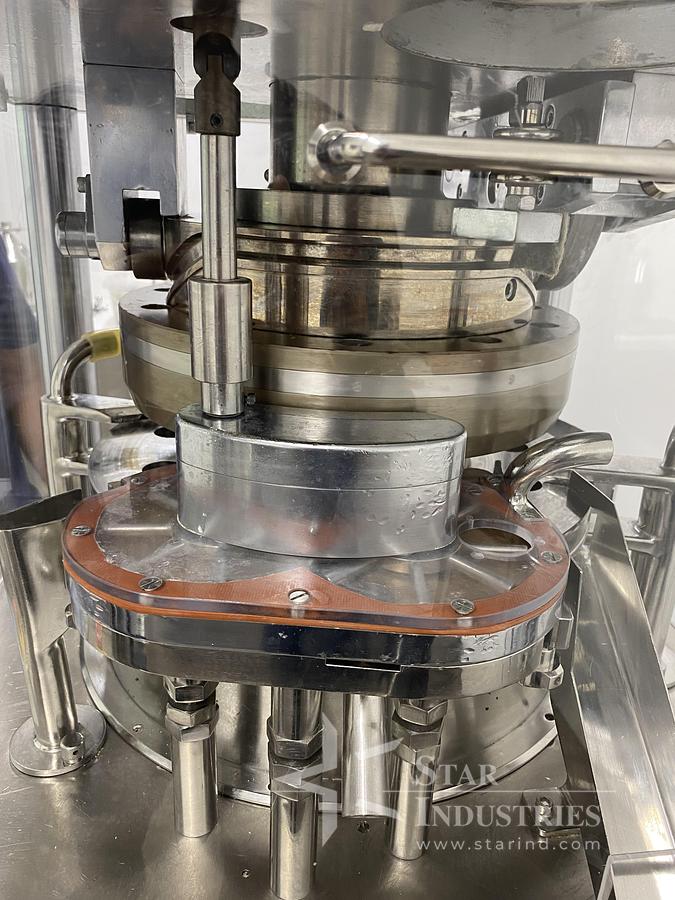

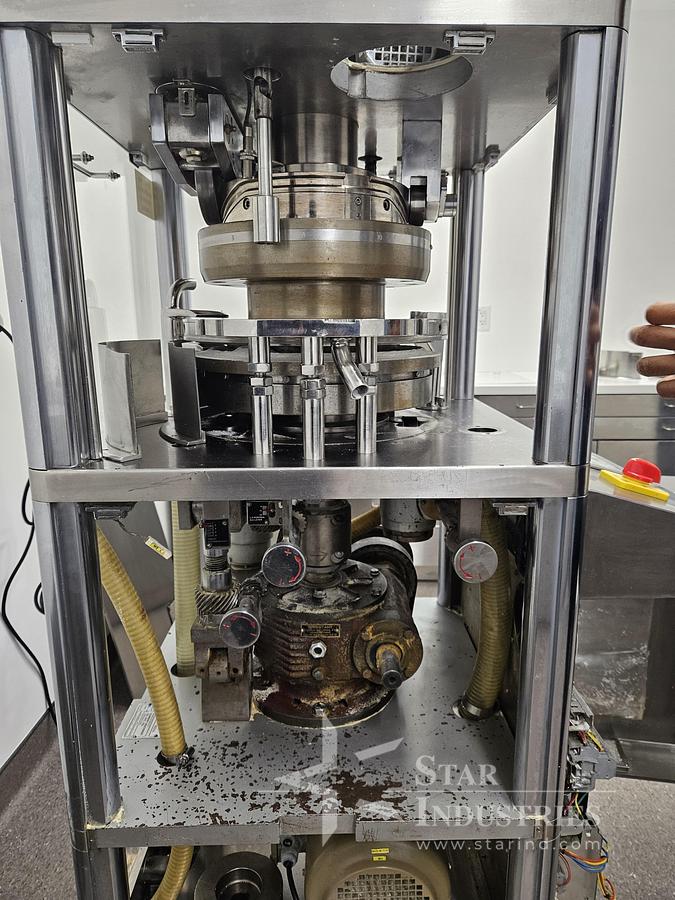

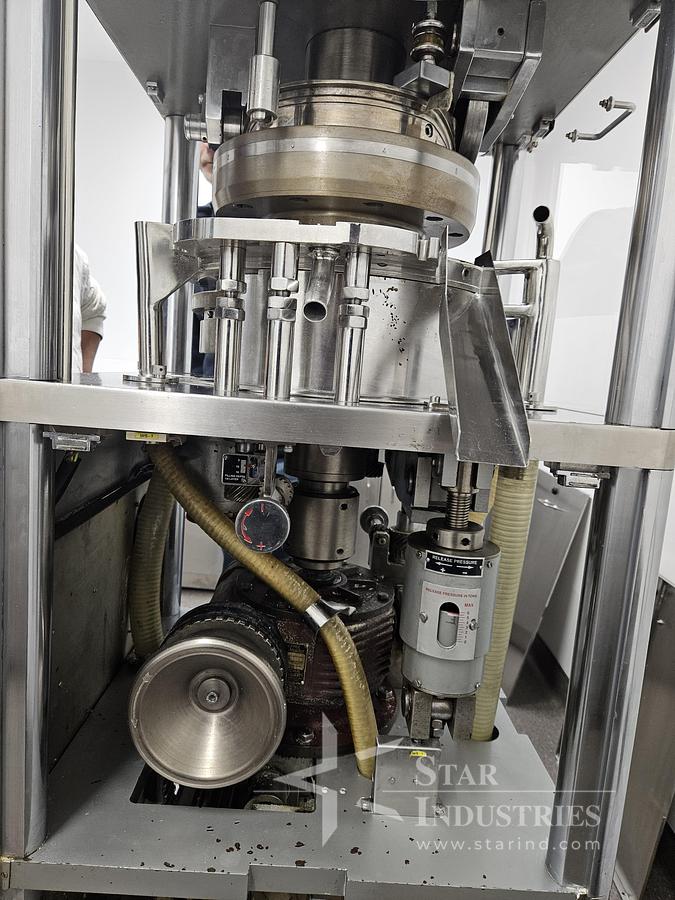

Kambert Expert 1 Bi-Layer Tablet Press

Kambert Expert 1 Bi-Layer Tablet Press

11-station B Tooling configuration:

• Production Output: Ranges from 8,100 to 24,000 tablets per hour (depending on material characteristics, tablet size, and turret speed).

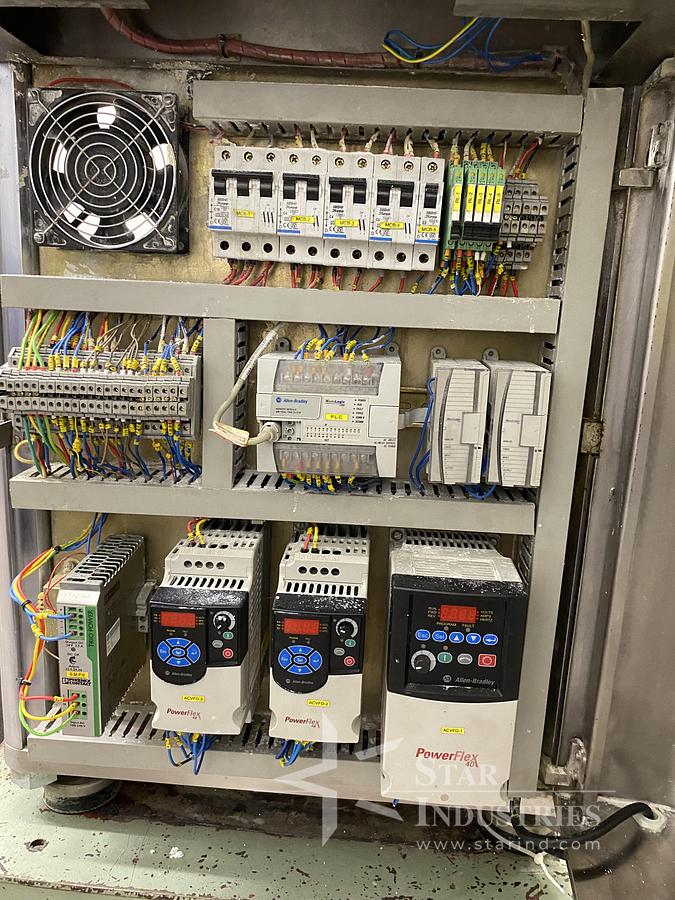

• Turret Speed: Variable from 15 to 45 RPM (controlled via AC variable frequency drive).
• Feeder Speed: Variable from 15 to 60 RPM (uses independent force/paddle feeders for the two layers).
• Maximum Main Compression Force: 60 kN
• Maximum First-Layer Pre-Compression Force: 10 kN
• Maximum Tablet Diameter: 16 mm
• Depth of Fill (1st & 2nd Layer): 3 to 8 mm

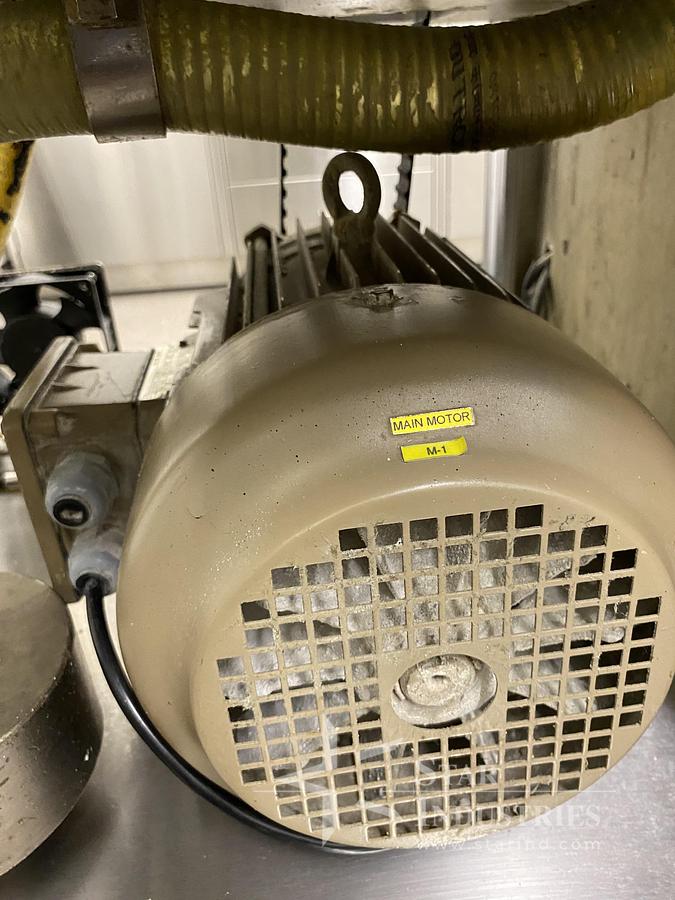

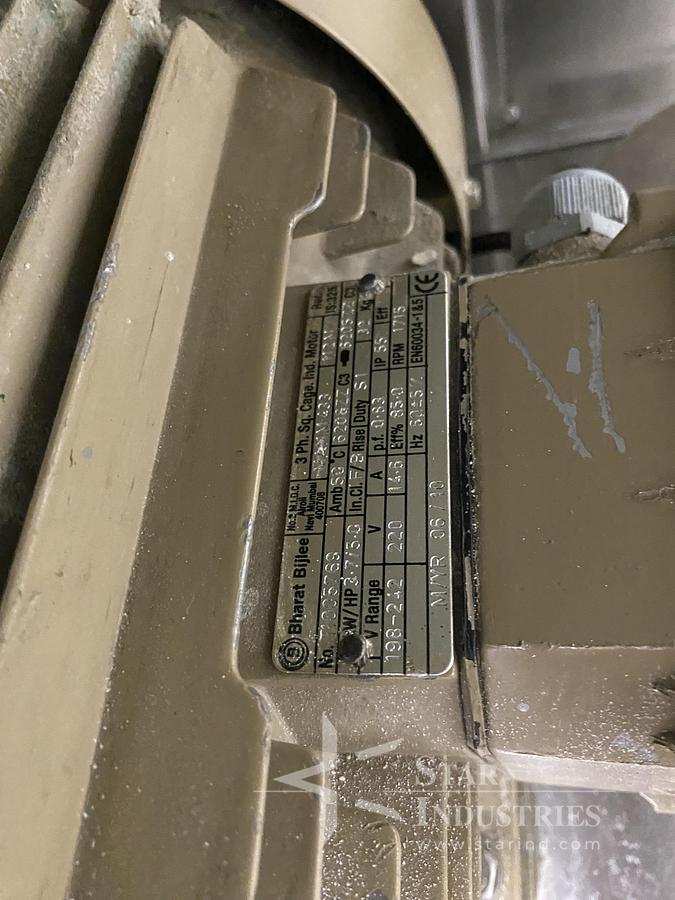

• Main Electric Motor: 3.7 kW / 5 HP
• Net Weight: Approx. 850 kg (1,874 lbs)
• Overall Dimensions: Approx. 72cm (W)X 88 cm (D)X 150cm (H)
