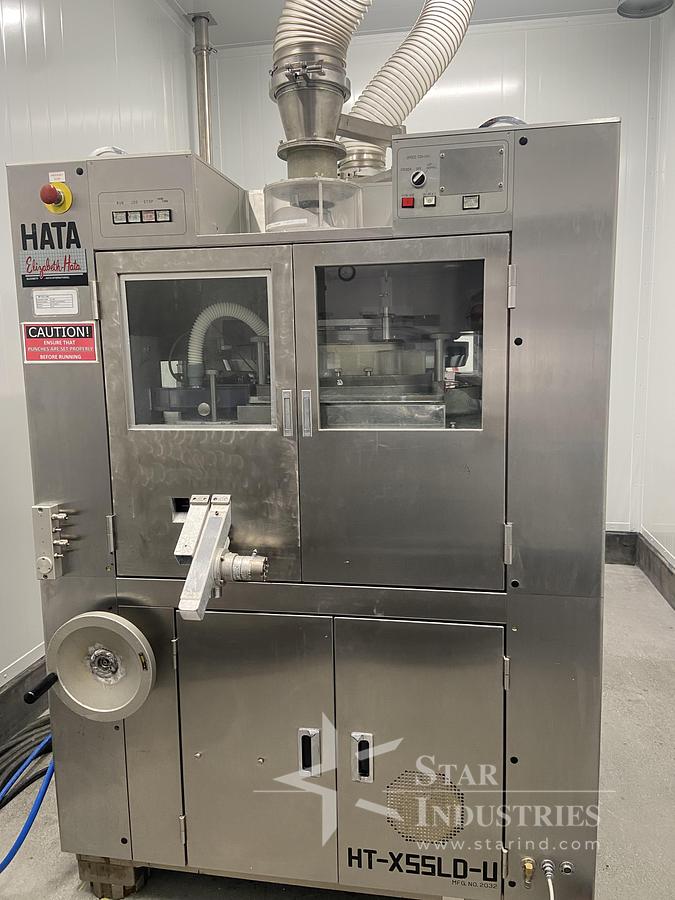

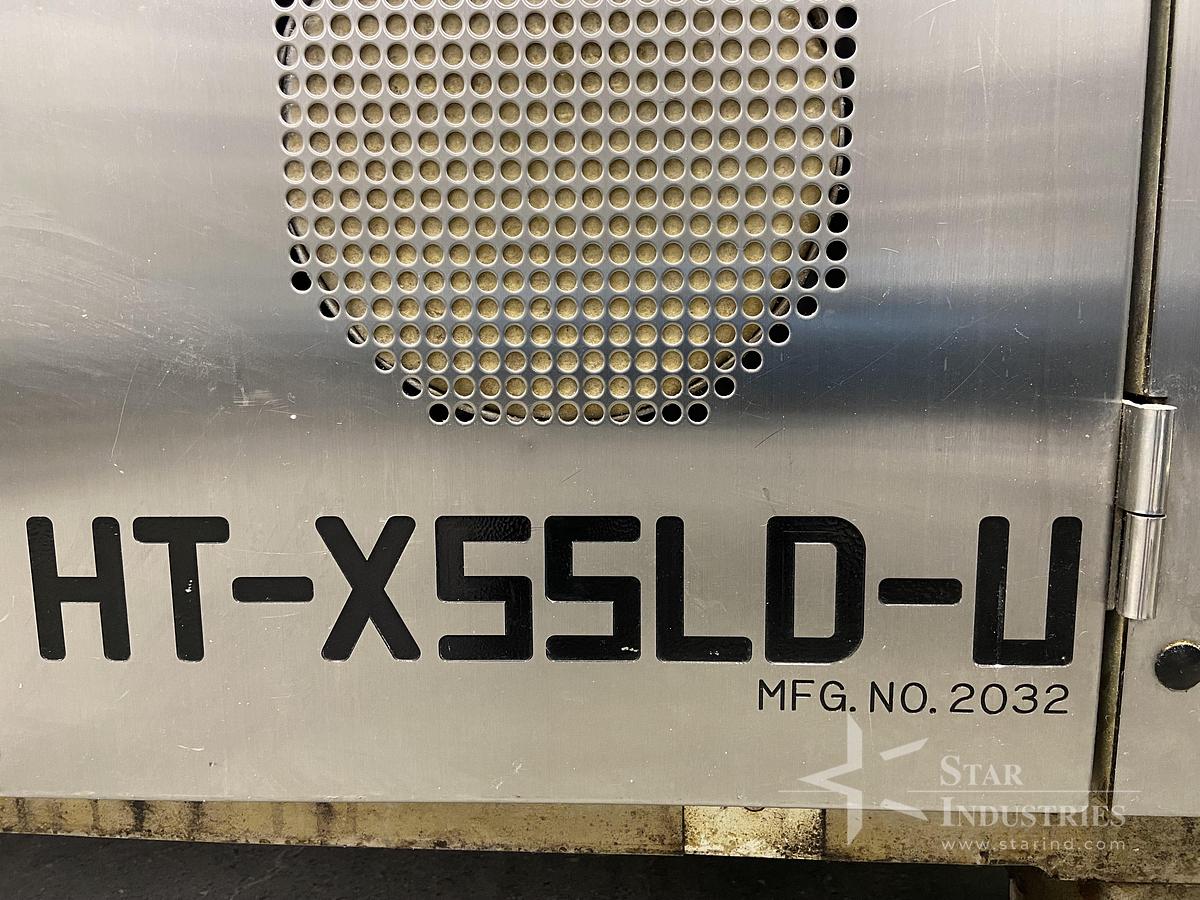

Elizabeth-HATA High-Speed Rotary Tablet Press, Model HT-X55LD-U.

High-Output, Double-Sided Rotary

The "X" series signifies an Easy Clean Design engineered for fast changeovers and high accessibility, while "LDU" designates a Large Double-Sided Unit. This heavy-duty, industrial-grade press is widely utilized in the pharmaceutical and nutraceutical industries for high-volume, continuous tablet manufacturing.

Technical Specifications

Based on standard manufacturing data for this specific 55-station model configuration:

• Number of Stations: 55 Stations
• Tooling Type: "B" Tooling
• Maximum Output: Up to 528,000 tablets per hour
• Maximum Compression Force: 8 Tons (approx 80 kN) pre-compression and main compression
• Maximum Tablet Diameter: 16 mm
• Maximum Depth of Fill: 14 mm
• Punch Guides: Keyed upper punch guides

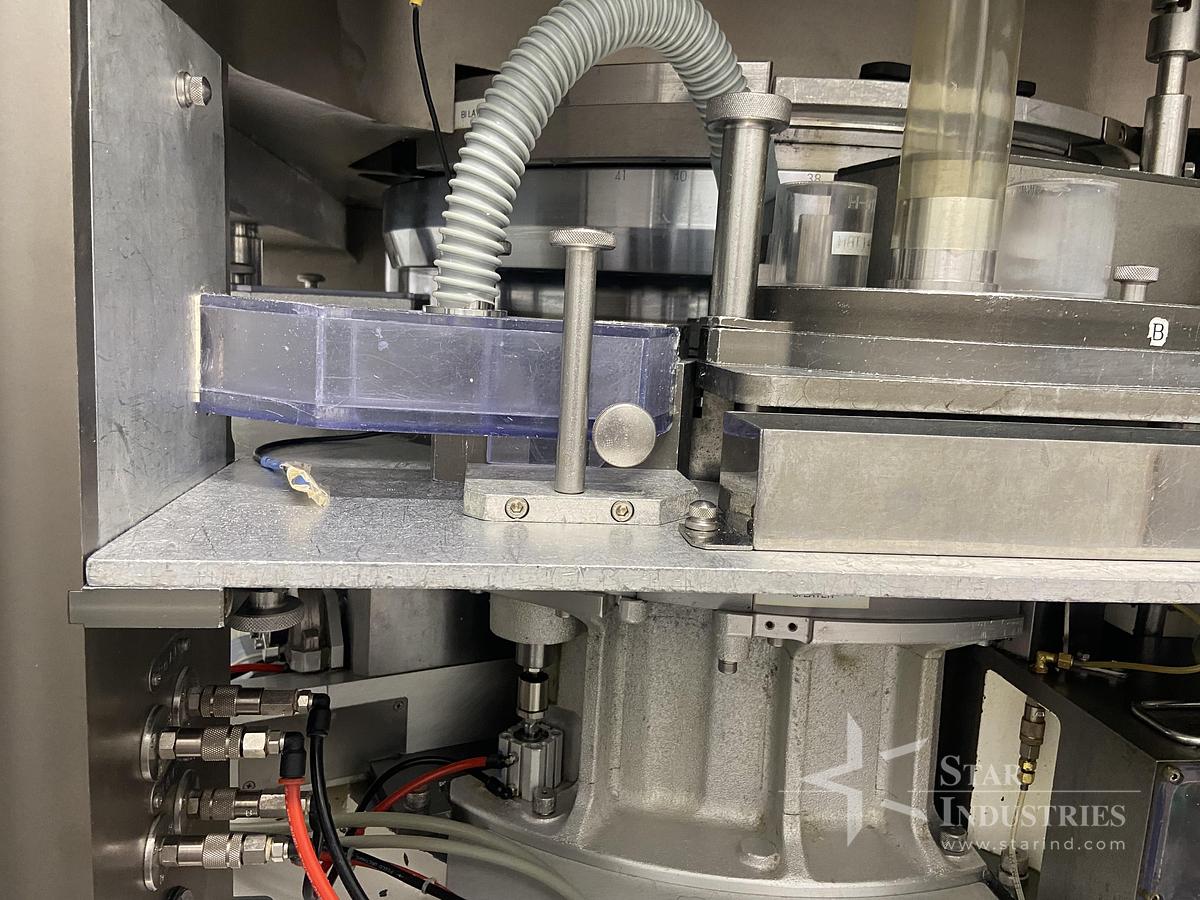

• Feeding System: Equipped with specialized dual force feeders
• Layer Capability: Single layer high-output configuration
•


Key Features & Design Advantages

• Easy-Clean Layout: The "X" series framework isolates mechanical drive components from the compression zone. Its washdown-friendly design drastically reduces cleaning time and mitigates batch-to-batch cross-contamination risks.

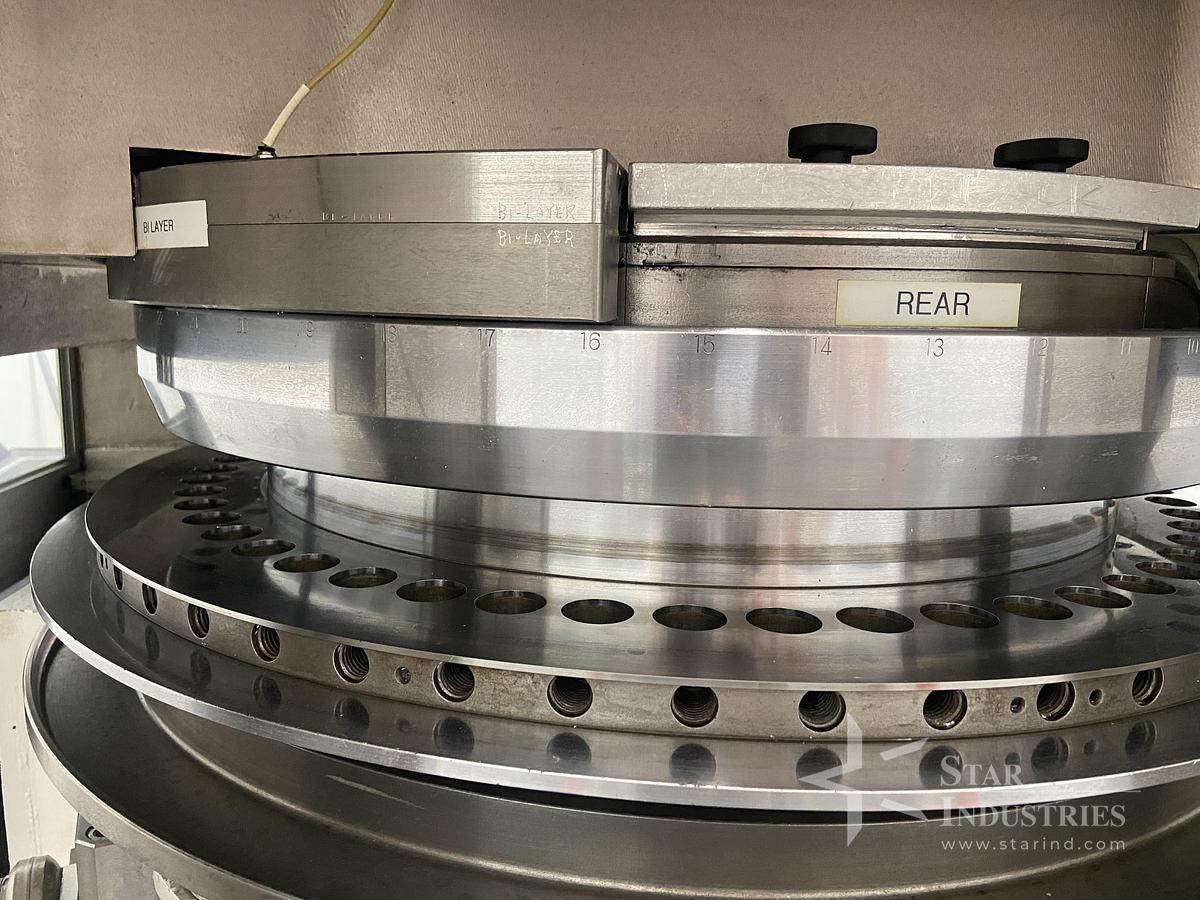

• Double-Sided Production:  Dual-sided design with two separate feed hoppers and two compression stations, it processes and ejects two tablets per station turret revolution, allowing it to hit massive throughput rates exceeding half a million tablets an hour.
• Consistent Weight Control: Utilizes HATA's signature independent feeding and automated force monitoring to maintain uniform tablet density, hardness, and precise weight metrics even at top operational speeds.
