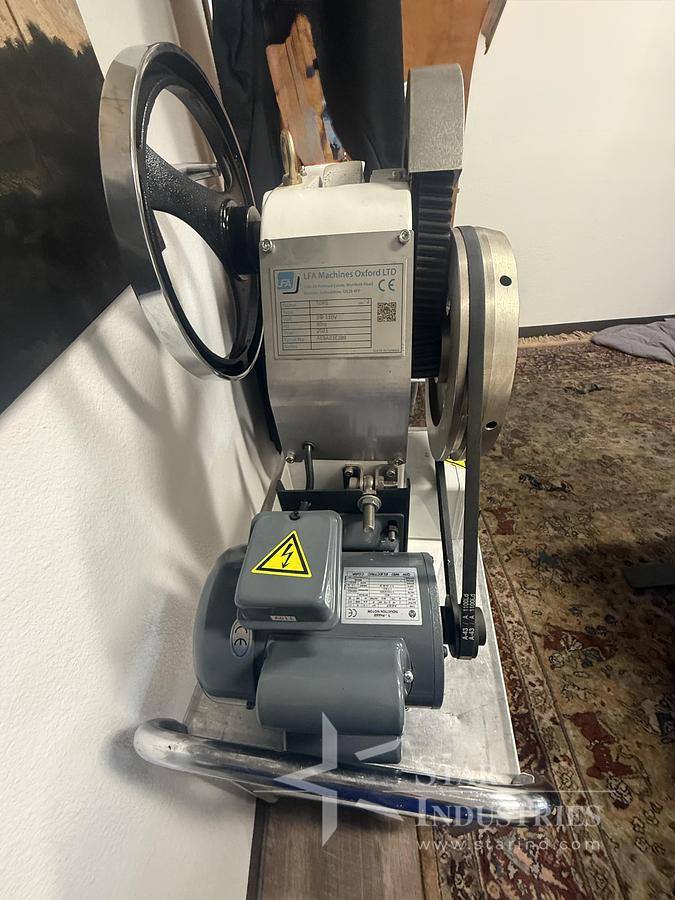

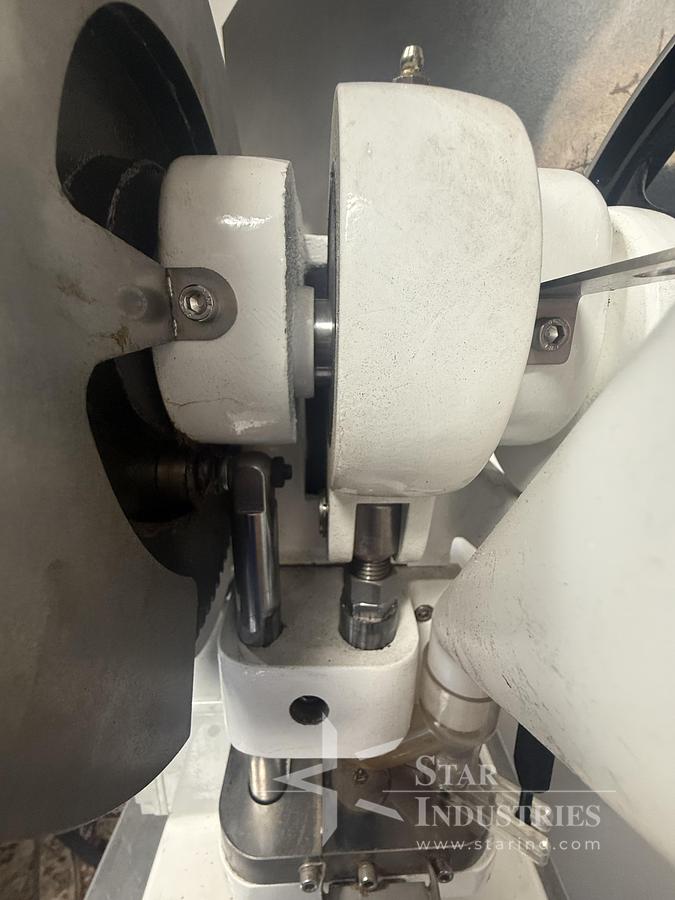

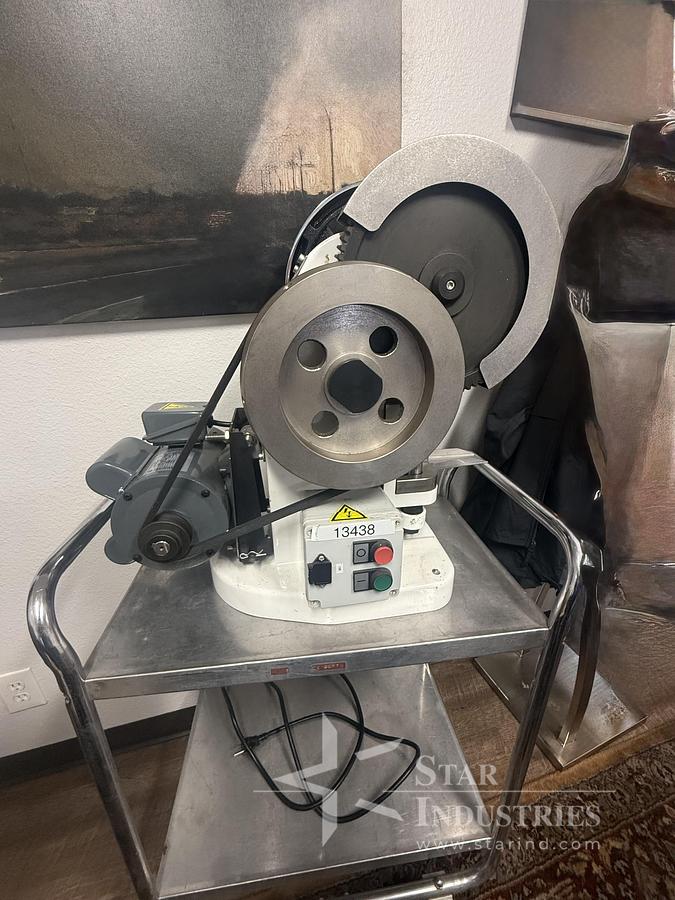

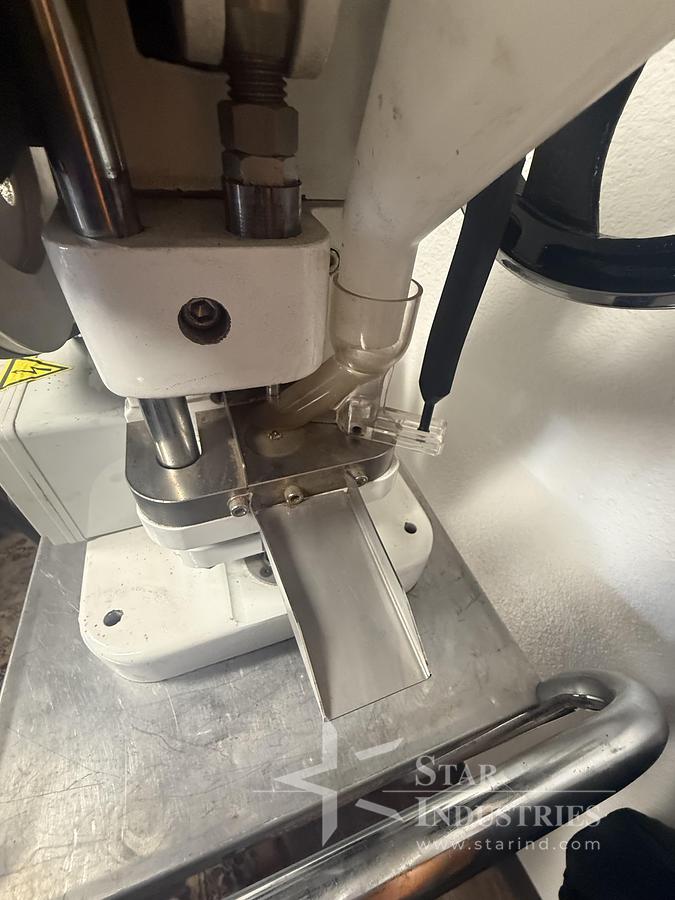

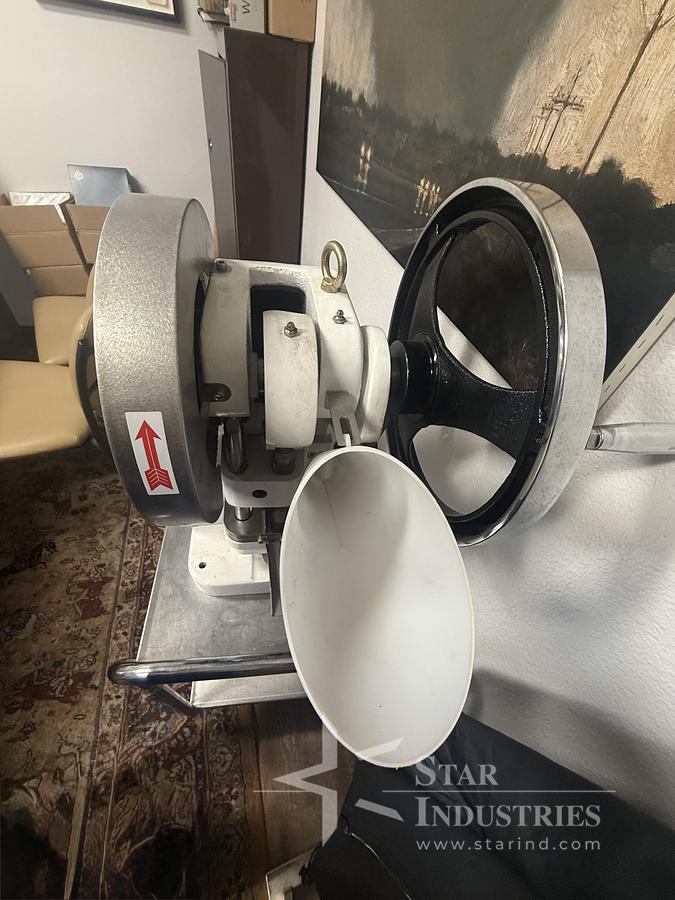

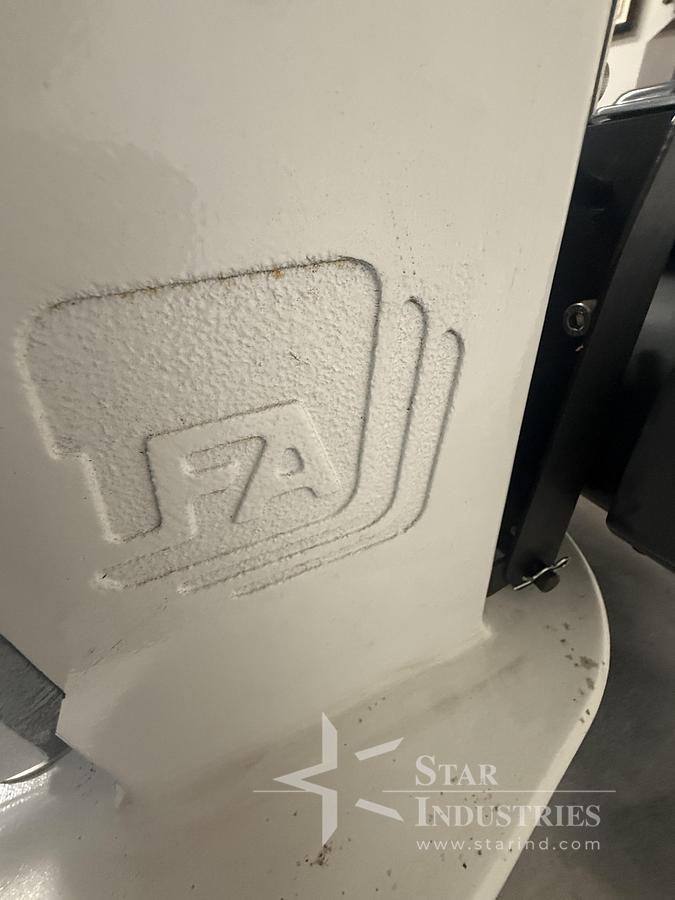

LFA- TDP 5 (Version 2) Single-Punch Desktop Tablet Press

Used LFA Machines TDP 5 (Version 2) Single-Punch Desktop Tablet Press

Standard Technical Specifications (TDP 5 v2)

• Max Compression Force: 50kN (approx. 5 tons
• Production Capacity: Up to 4,800–5,000 tablets per hour
• Max Tablet Diameter: 20 mm
• Max Fill Depth: 18 mm
• Max Tablet Thickness: 8mm

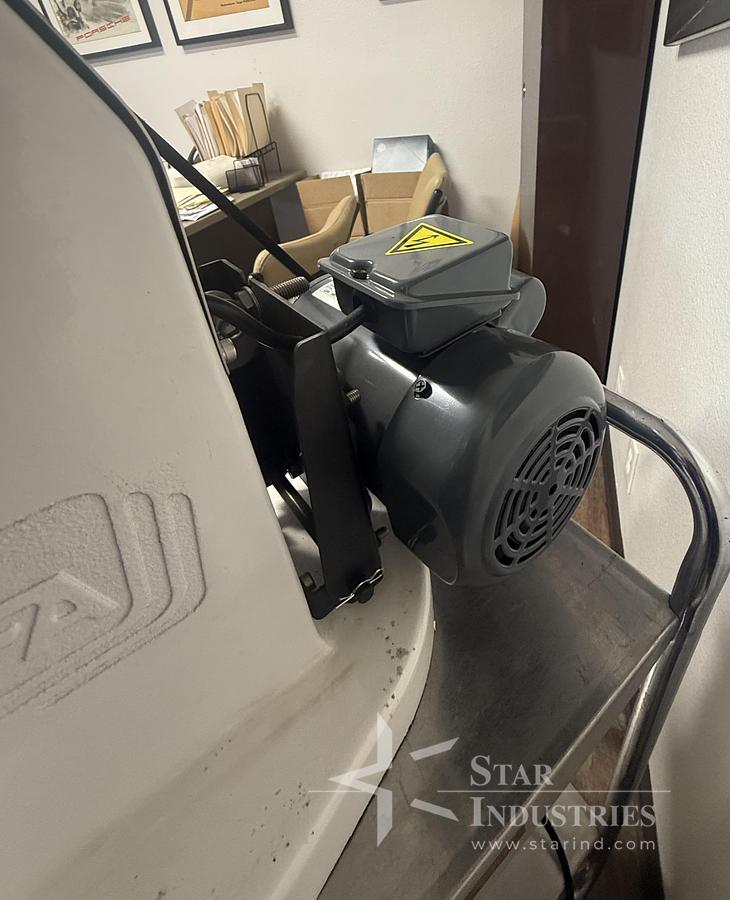

• Motor Power: 0.75 kW

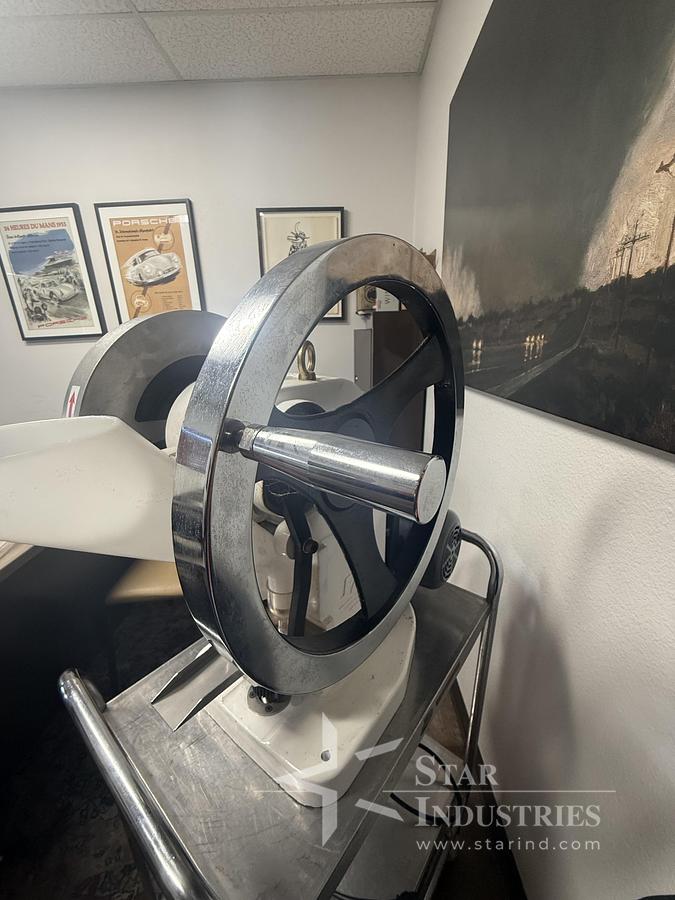

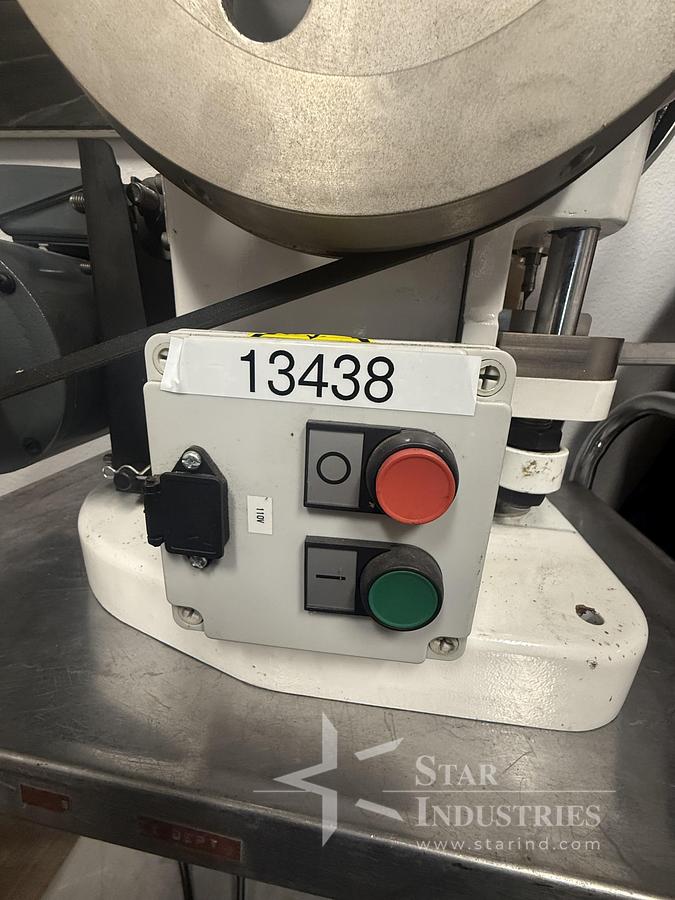

• Operation Mode: Electric motorized or manual hand wheel operation

Core Applications

 Formulation & R&D: Testing blend flowability, bind strength, and compressibility before scaling to rotary equipment.

 Small-Batch Runs: Ideal for specialty supplements, trial batches, or lower-volume SKUs.

Primary Troubleshooting Focus Areas

 Tablet Capping / Lamination: Usually indicates excessive compression force, excessive fine particles, or air entrapment in the die cavity.

 Weight Variation: Typically caused by uneven powder flow in the boot feeder, incorrect fill depth adjustment, or speed variation.

 Punch / Die Binding: Frequently stems from insufficient lubrication in the formulation (e.g., magnesium stearate) or binding from excessive humidity
