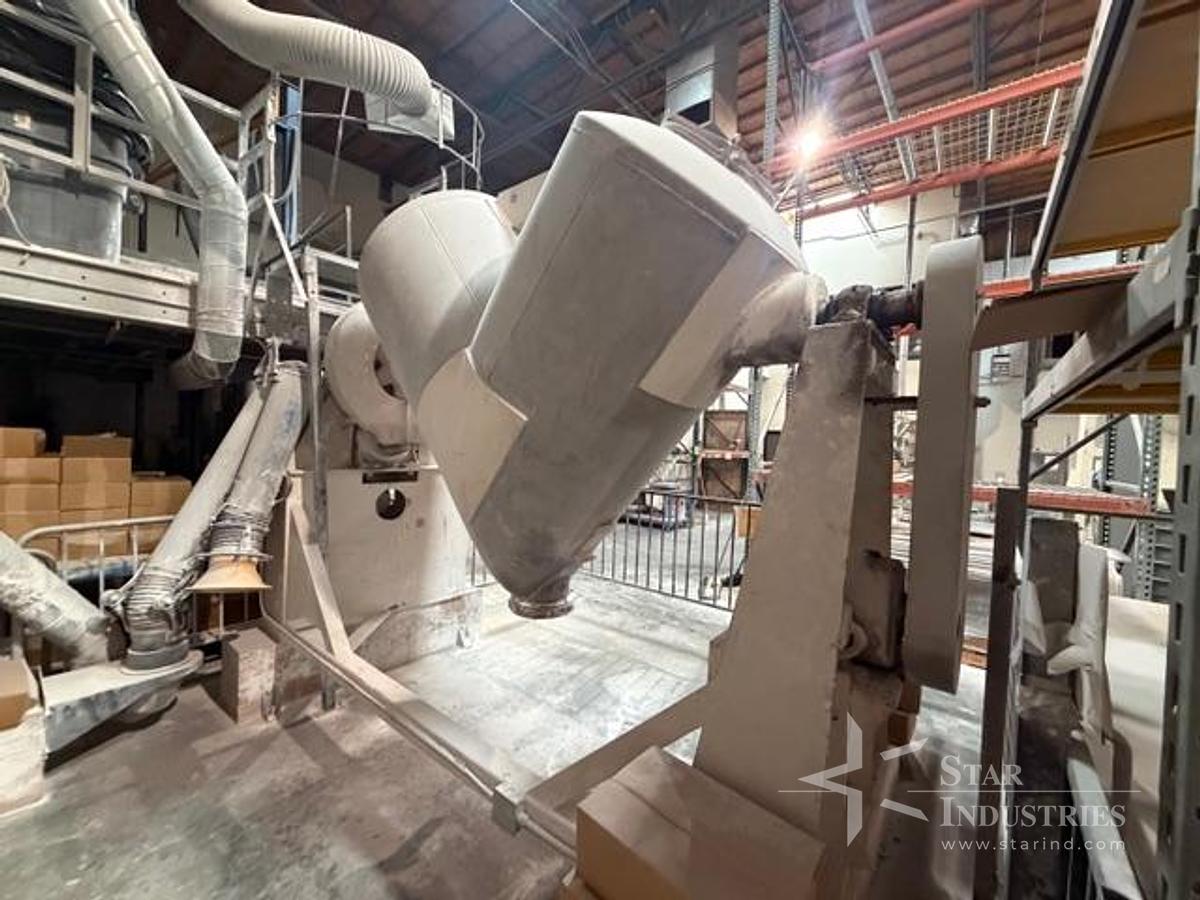

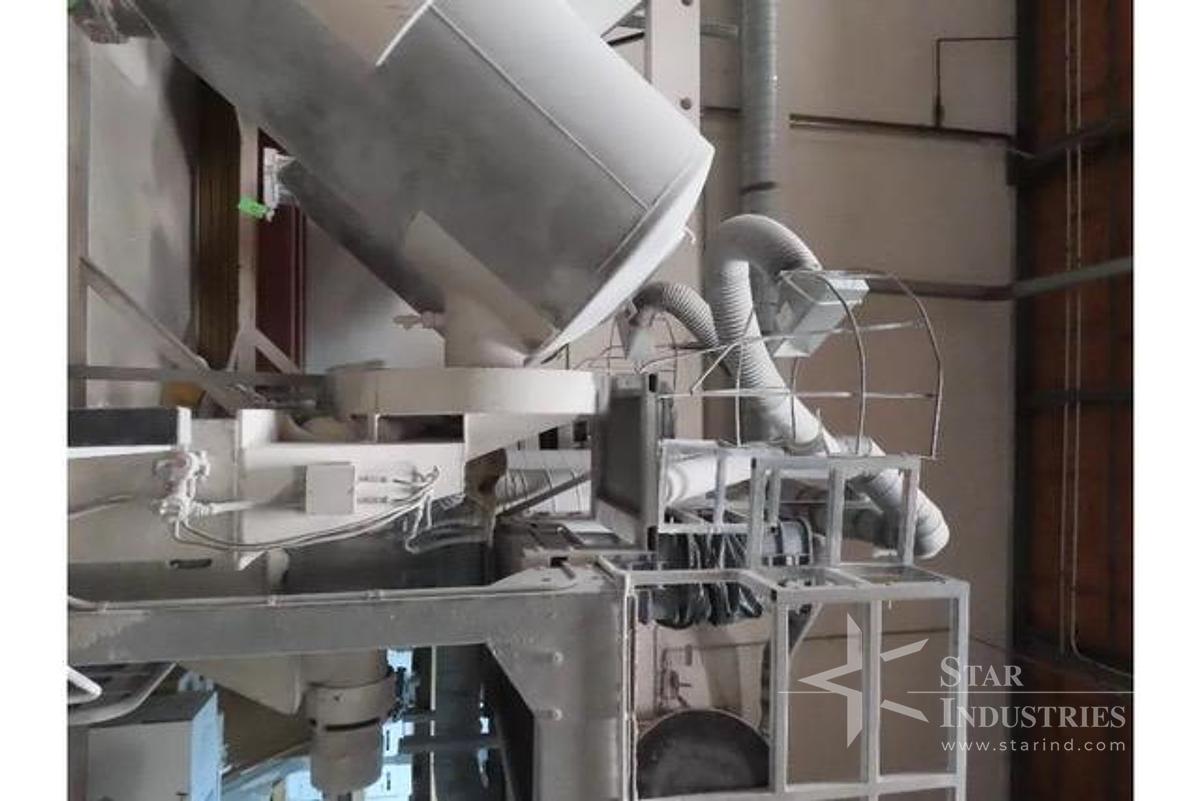

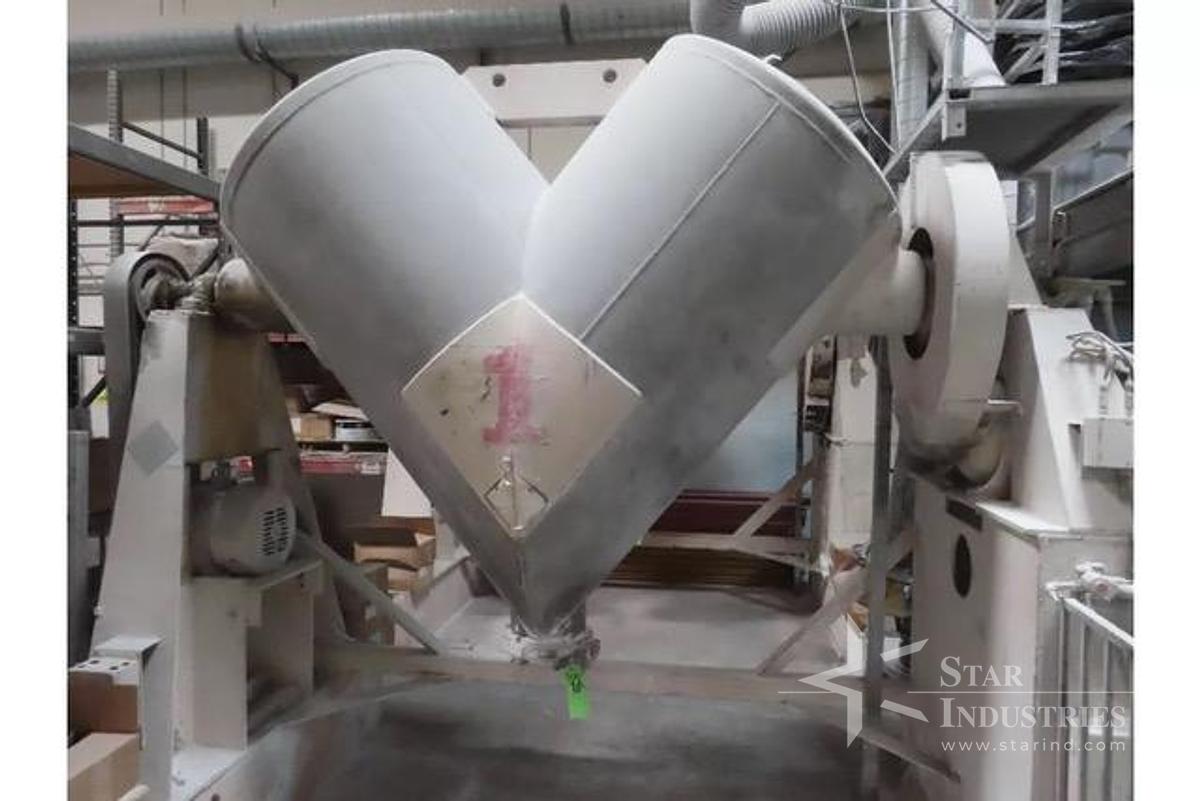

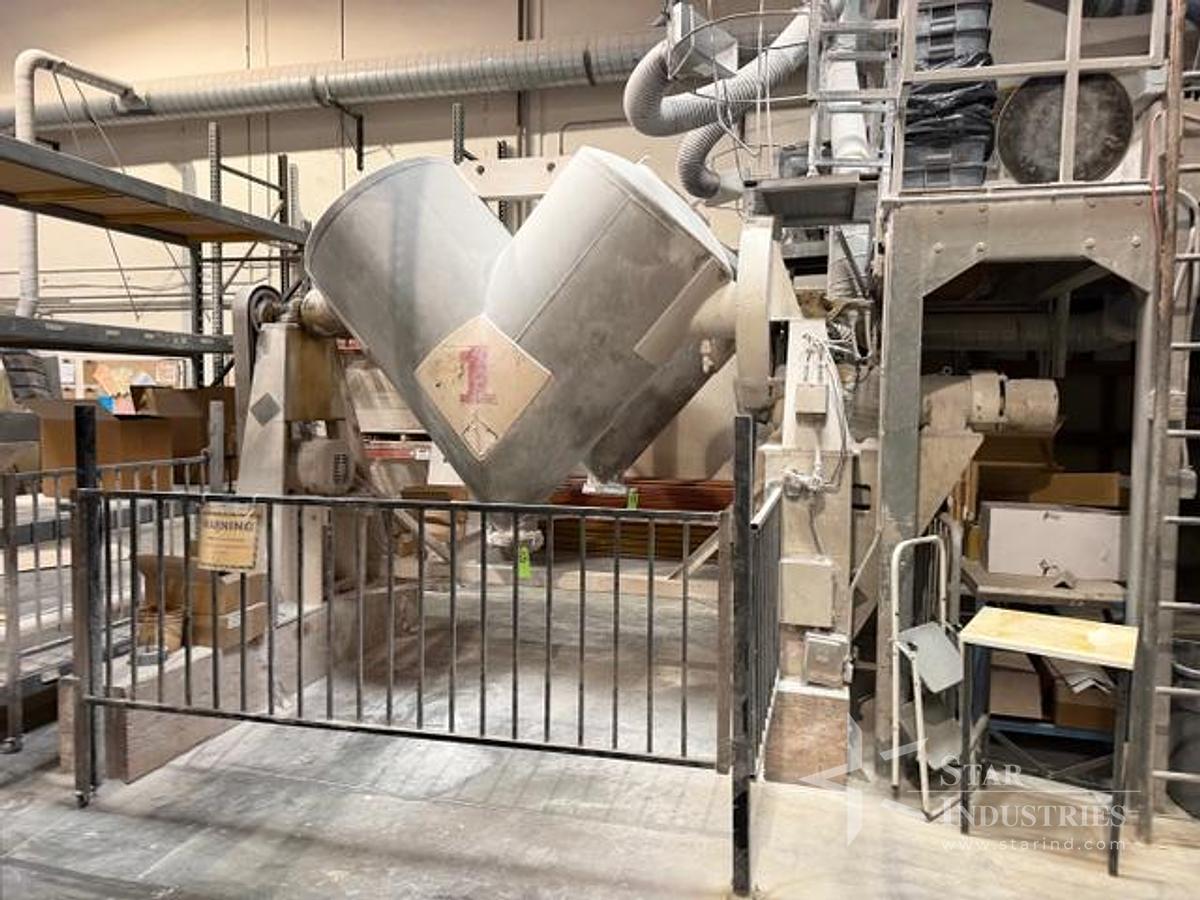

Patterson Kelly Liquid Solids V-Blender 40 cubic ft

Patterson Kelly Liquid Solids V-Blender 40 cubic ft Gear Drive

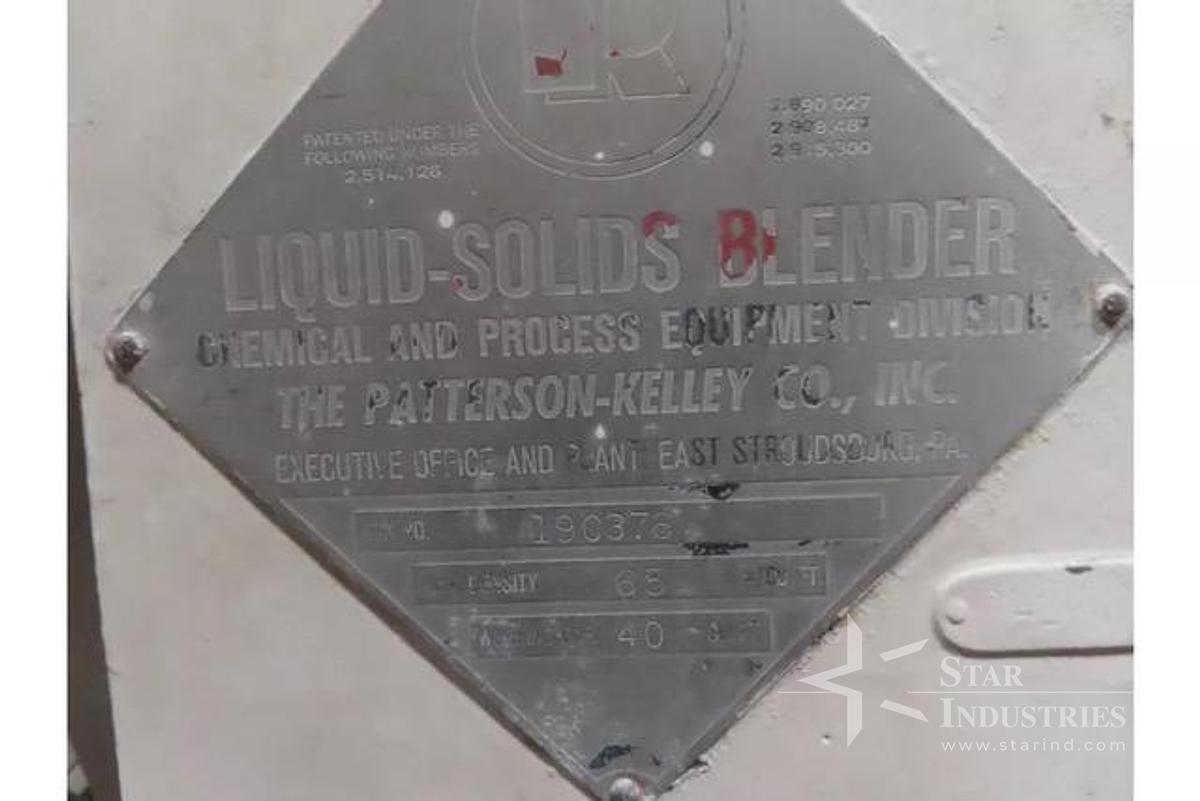

Work Capacity : 40 Cu.ft.

Motor : 5HP

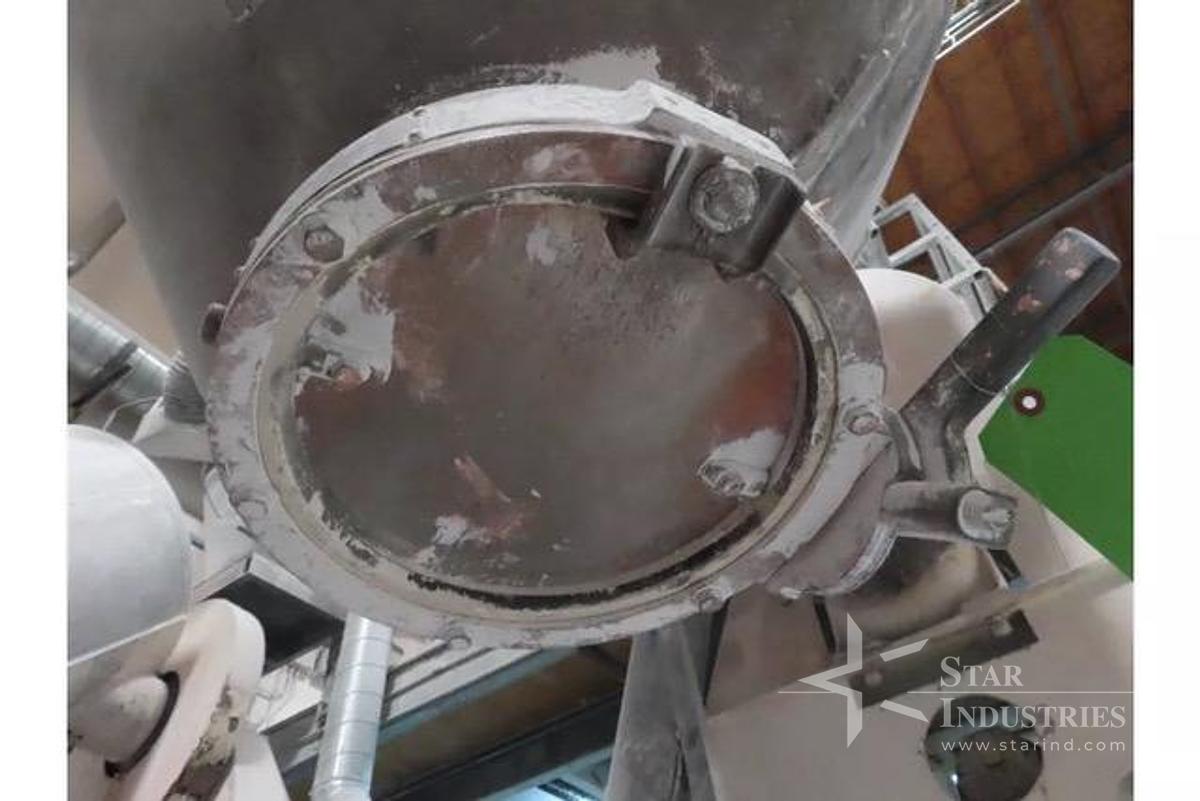

Discharge : 10"

Blender RPM: 13.7

Int.RPM : 1065

Max Density : 65

1. Shell Main Drive (Low Speed, High Torque)

 Speed: 13.7 RPM.

 Function: Tumbling and macro-blending the bulk powder mass without particle degradation.

 Drive Mechanism: Electric motor paired with a heavy-duty gear reducer (typically helical, worm, or planetary gearbox).

 Transmission: Connects to the outer hollow trunnion shaft via direct coupling, chain and sprocket, or heavy gear train.

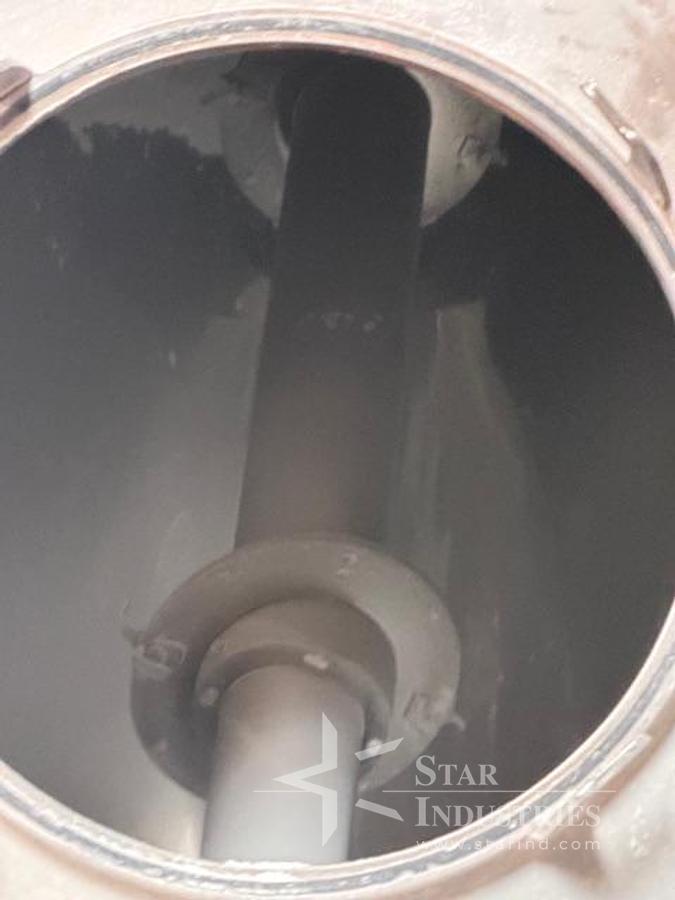

2. Intensifier Bar Drive (High Speed, Low Torque)

 Speed: 1065 RPM.

 Function: Delivers impact forces to break up lumps/agglomerates, disperse micro-ingredients, or chop liquid spray droplets into fine powders.

 Drive Mechanism: Driven by an independent high-speed electric motor mounted on the support frame or directly to the trunnion drive box.

 Transmission: Uses a solid drive shaft passing through the center of the main hollow trunnion shaft, supported by high-speed precision bearings and dynamic rotary lip/mechanical seals to prevent product leakage and cross-contamination.
