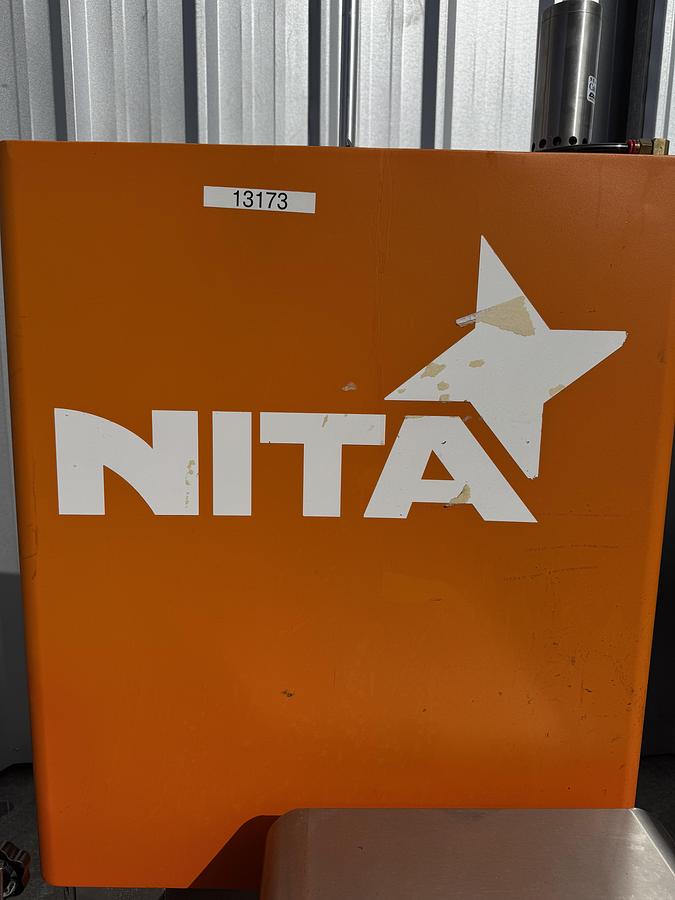

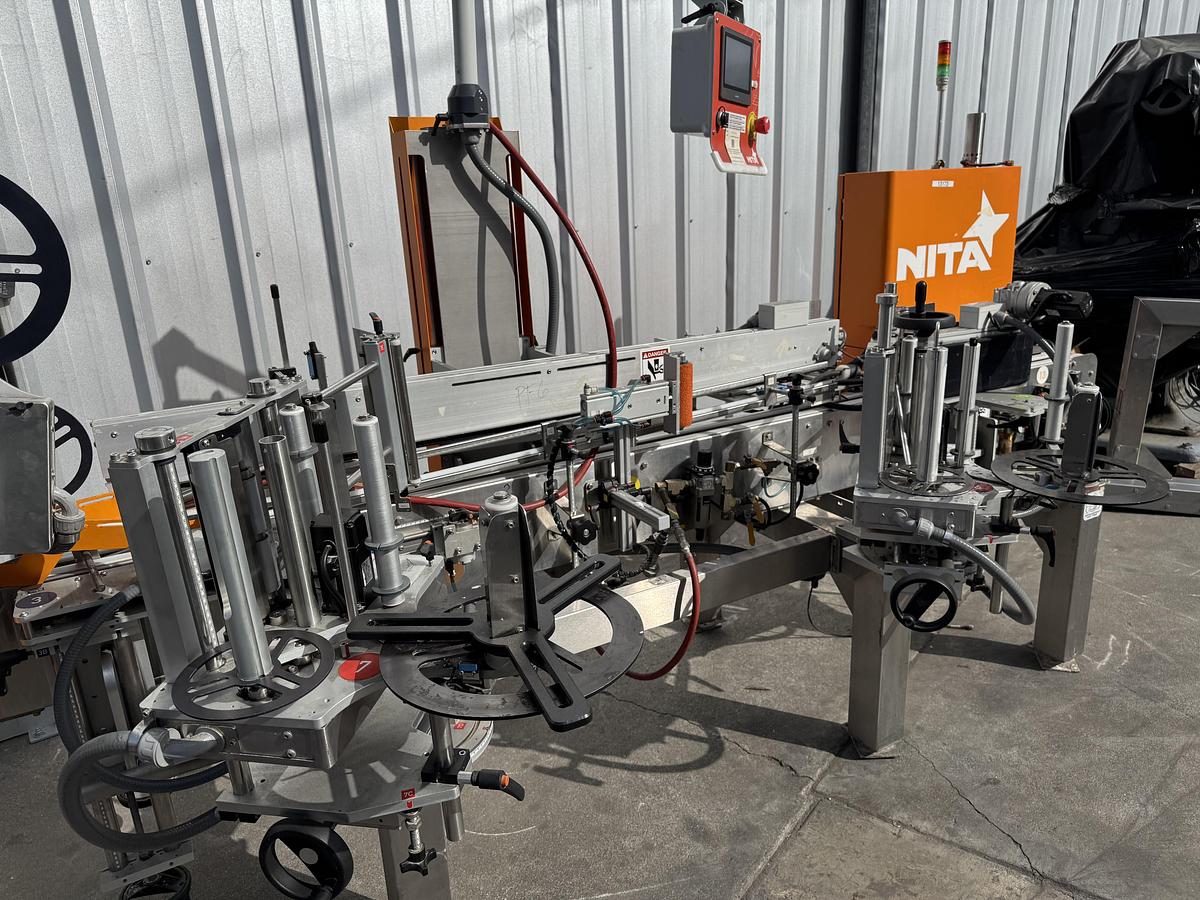

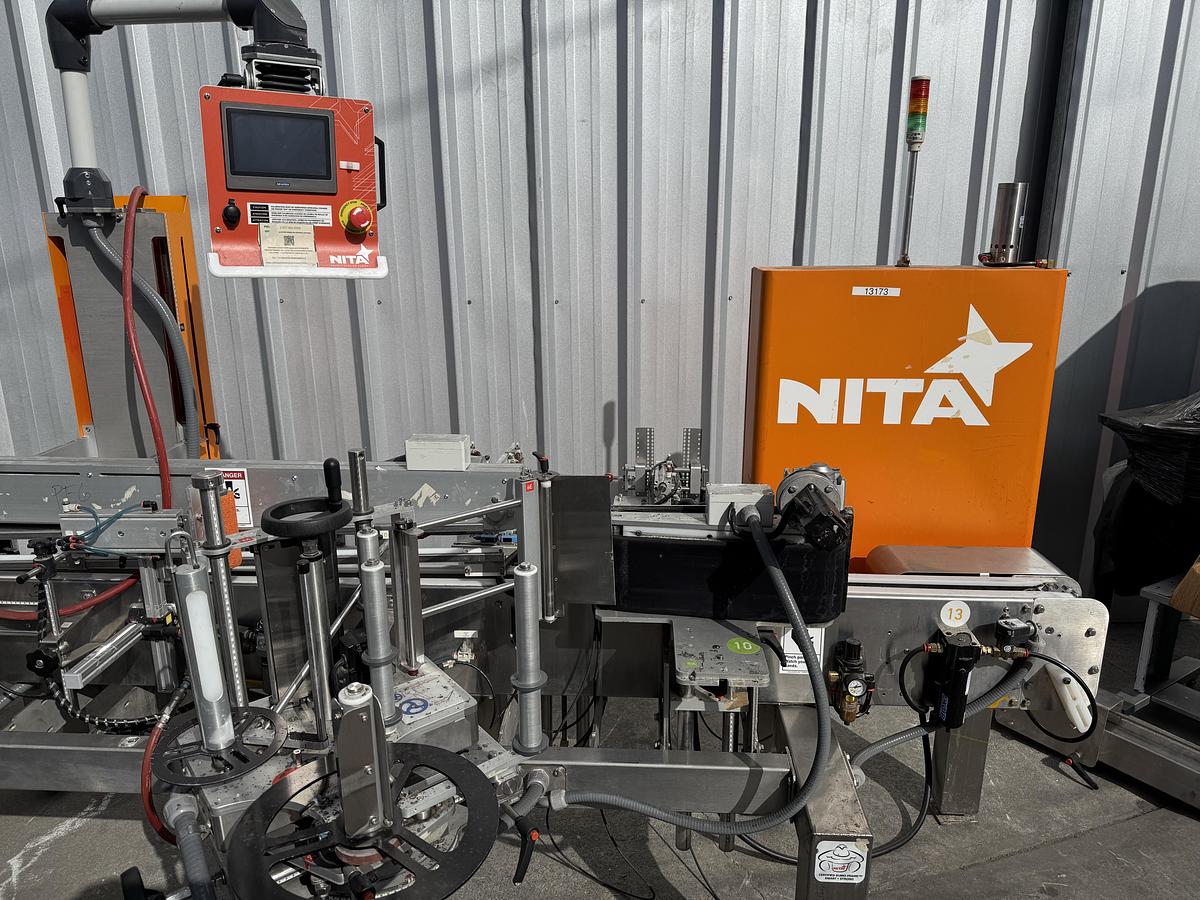

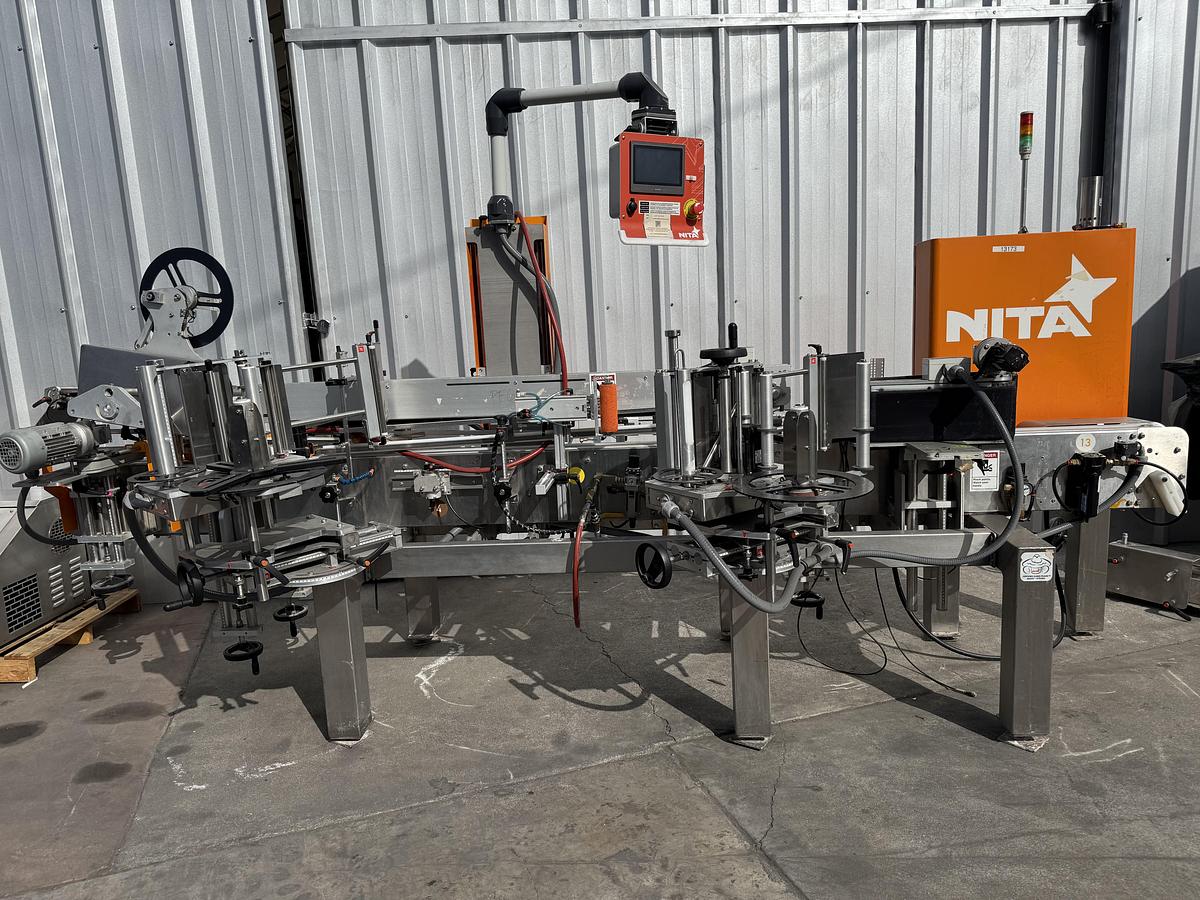

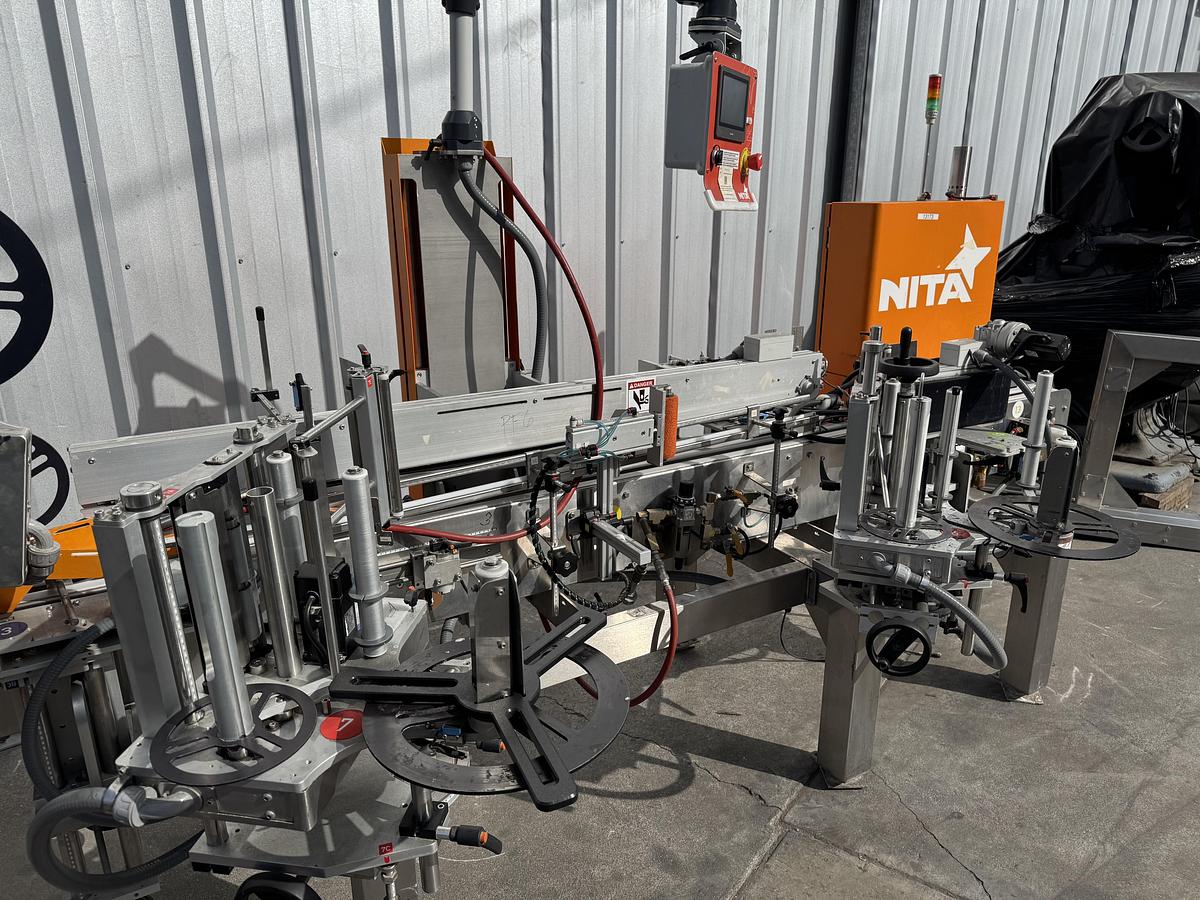

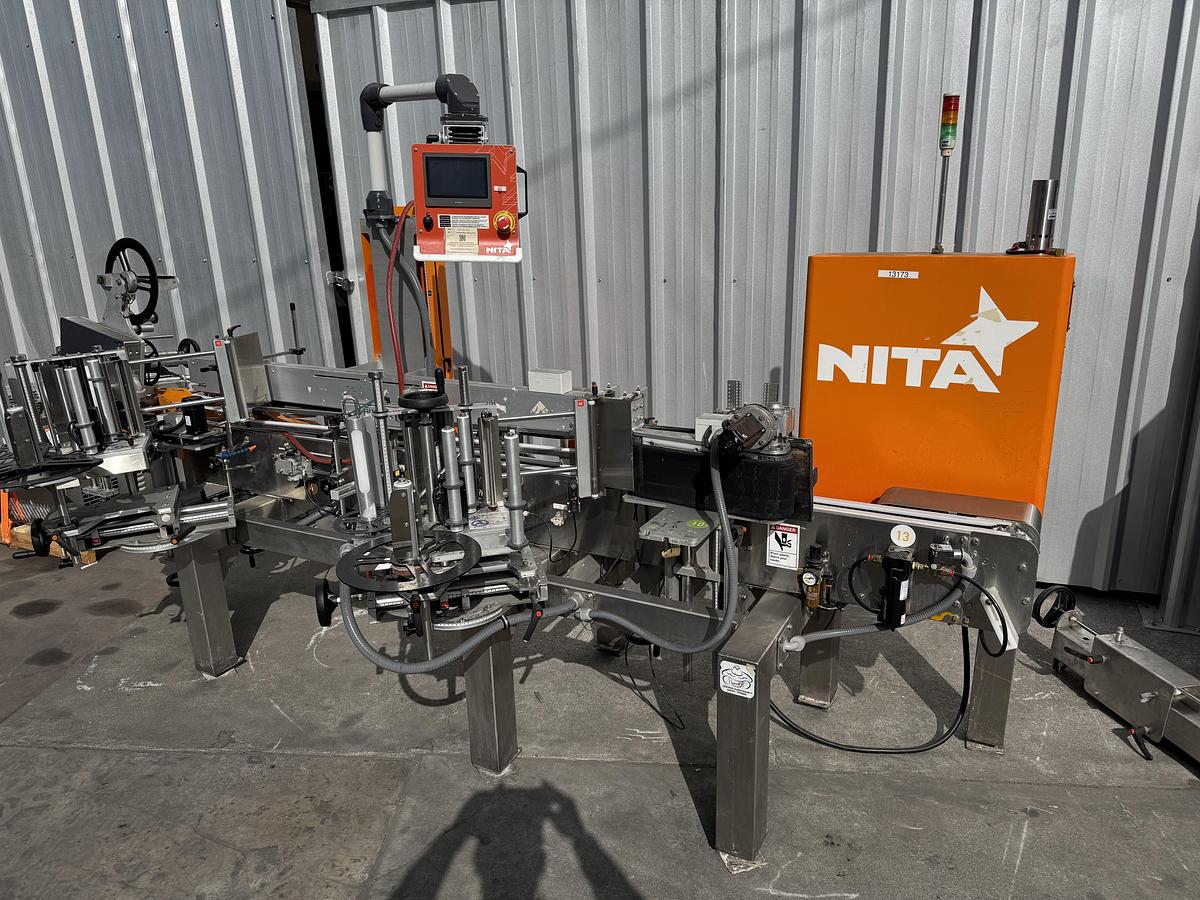

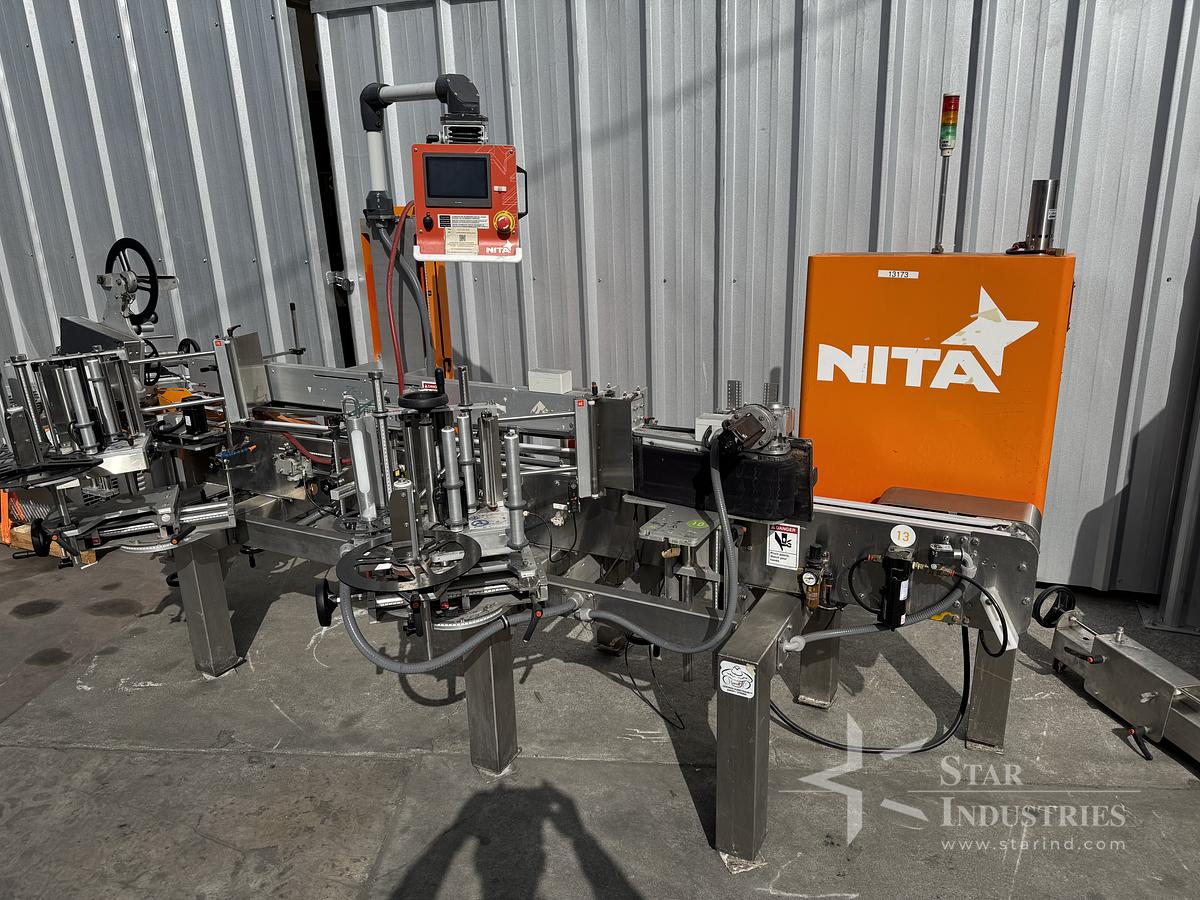

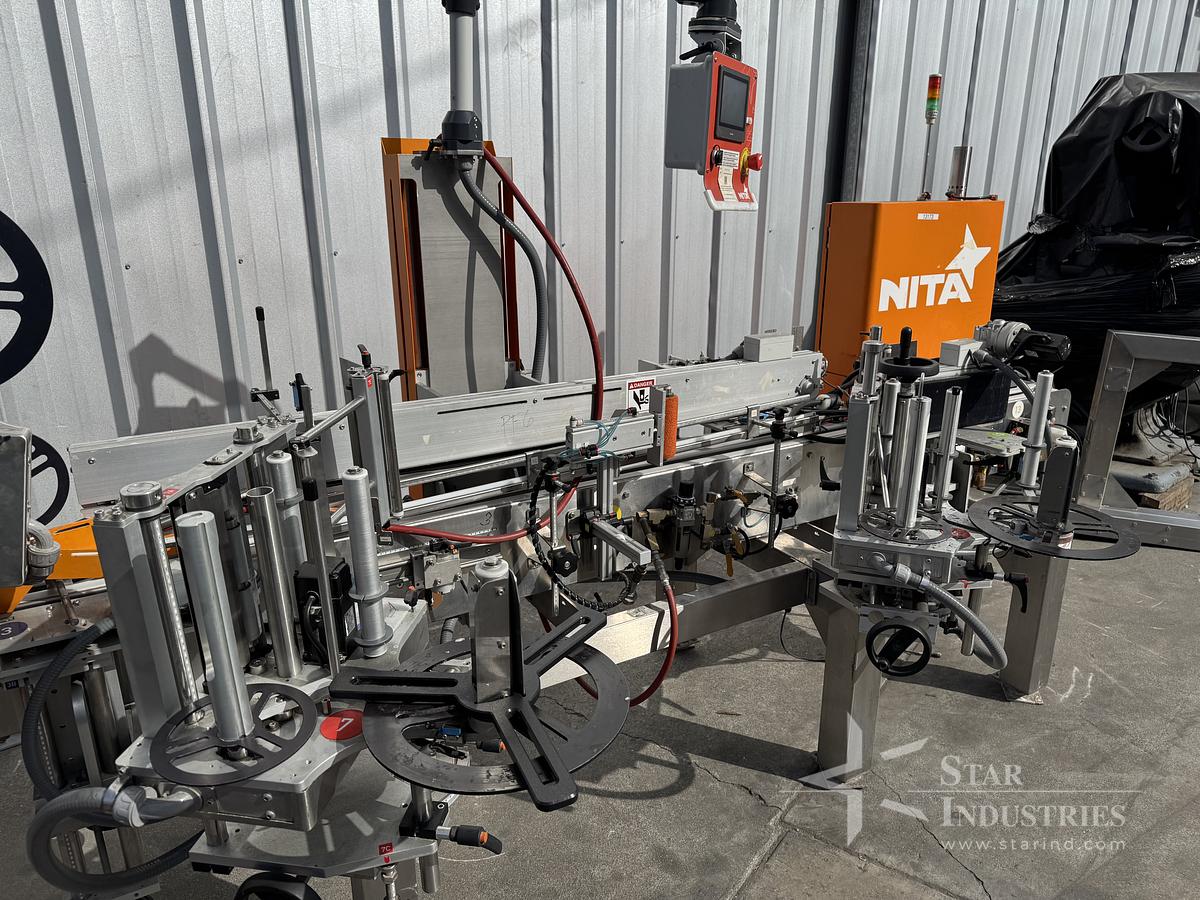

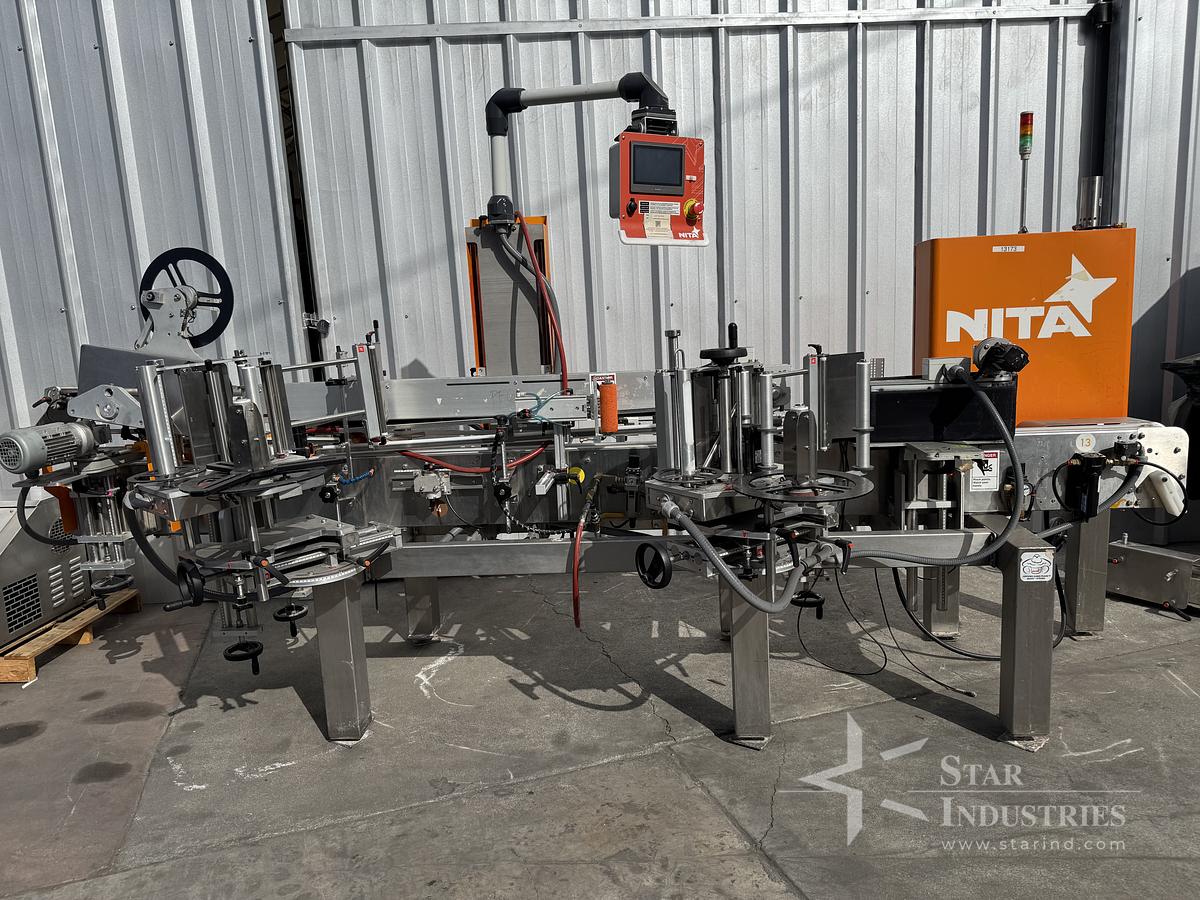

NITA- Double Sided Labeler

Used Double Sided Labeler,

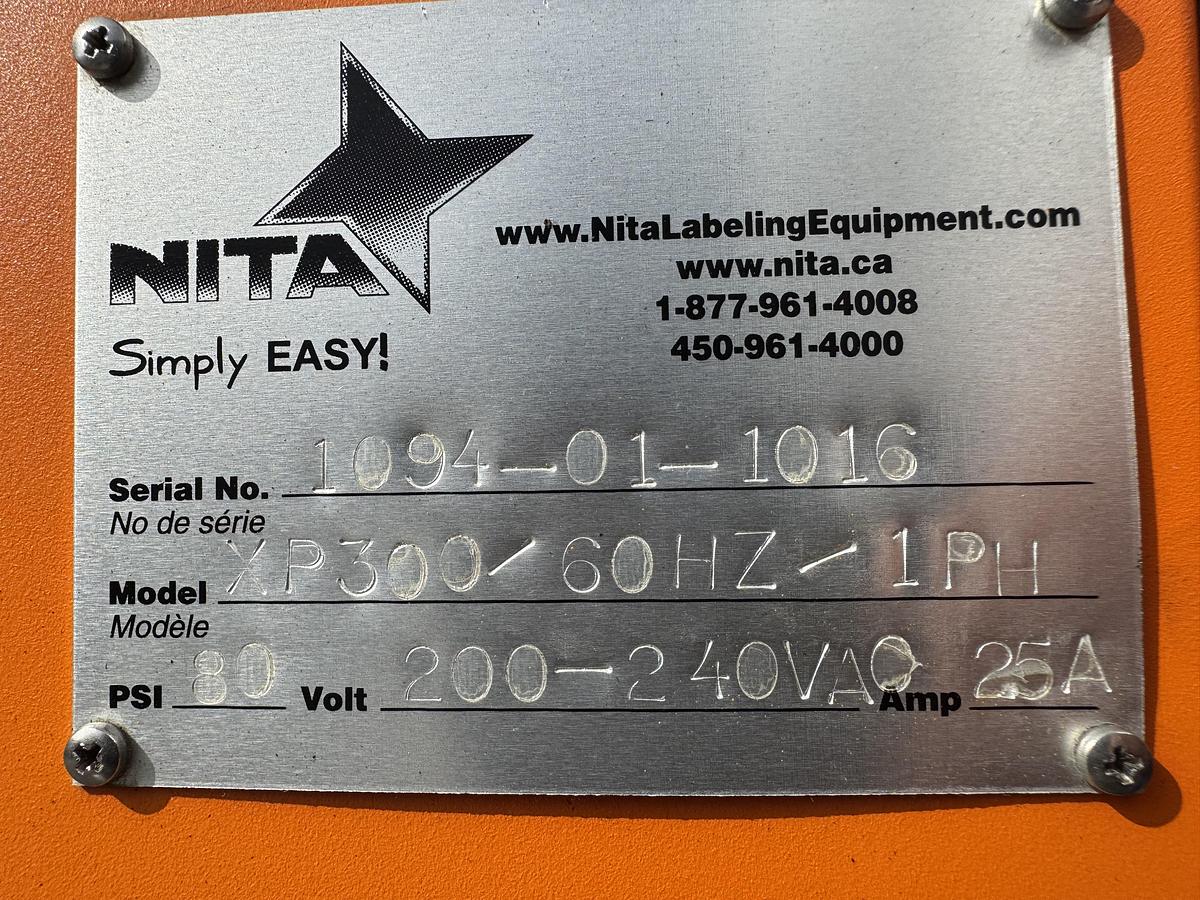

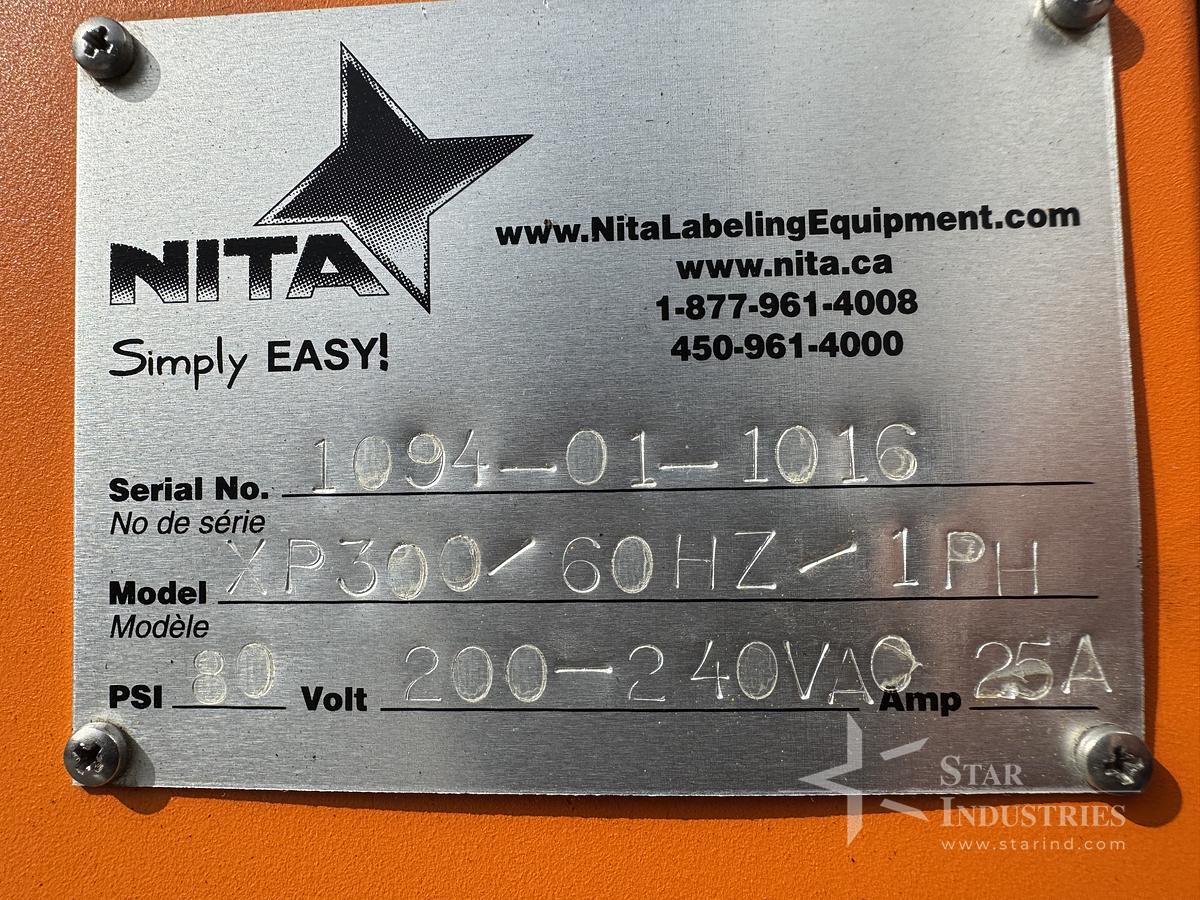

Model: XP300

Serial: 1094-01-1016

Power Voltage: 200-240VAC, 25amps

Based on Nita's standard equipment configuration and serial number formatting, here is the breakdown for your double-sided labeler:

Year of Manufacture

In Nita's serial numbering system, the final four digits typically represent the month and year of production.

 Serial suffix 1016 indicates your machine was manufactured in October 2016.

Container Size Capabilities (Model XP300)

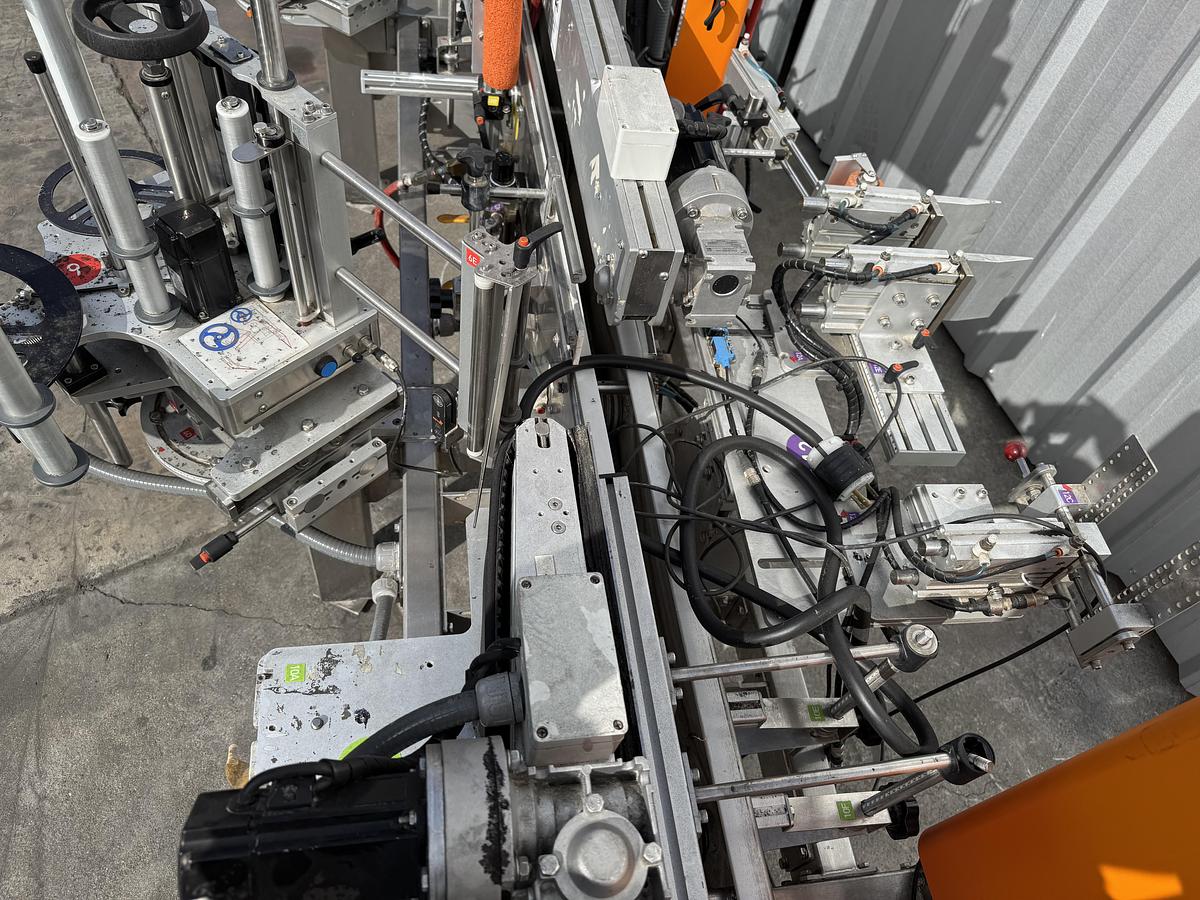

The XP300 is a highly versatile, fully servo-controlled front-and-back labeling system. While exact limits can vary slightly depending on whether the original owner specified custom-width conveyor plates or an extended top hold-down belt, the standard operational limits for the XP300 are:

Container Width / Diameter

 Minimum: 0.5 inches (approx. 12 mm)

 Maximum: 7 inches (approx. 178 mm)

Note: The standard conveyor width on these units is typically 4.5 inches, but the adjustable guide rails and self-centering top belt allow it to stabilize and run containers wider than the chain itself up to the 7-inch mark.

Container Height

 Minimum: 1.5 inches (approx. 38 mm)

 Maximum: 14 inches (approx. 355 mm)

Note: Minimum height is limited by the physical clearance required for the side peel plates to apply the label without hitting the conveyor, while maximum height is determined by the vertical travel limit of the top hold-down stabilizing conveyor

Key Considerations for Your Setup

 Label Height Limits: Standard dispensing heads on the XP300 typically handle web/label heights up to 6 inches (152 mm), though some upgraded heads can accommodate up to 9 inches (228 mm).

 Shape Flexibility: Because the XP300 uses synchronized servo-driven top belts and side-module alignment, it easily handles flat, oval, rectangular, and slightly tapered bottles. If you plan to run round bottles, ensure your unit has the optional wrap-around station or secondary wipe-down module installed.
