CVC Wrap- Around Labeler, Model 302C

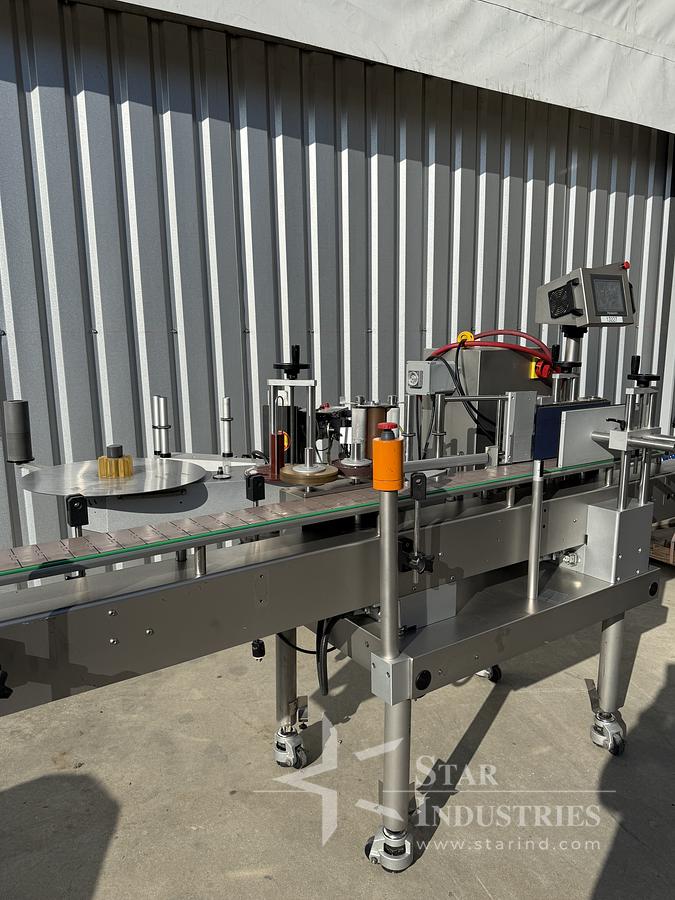

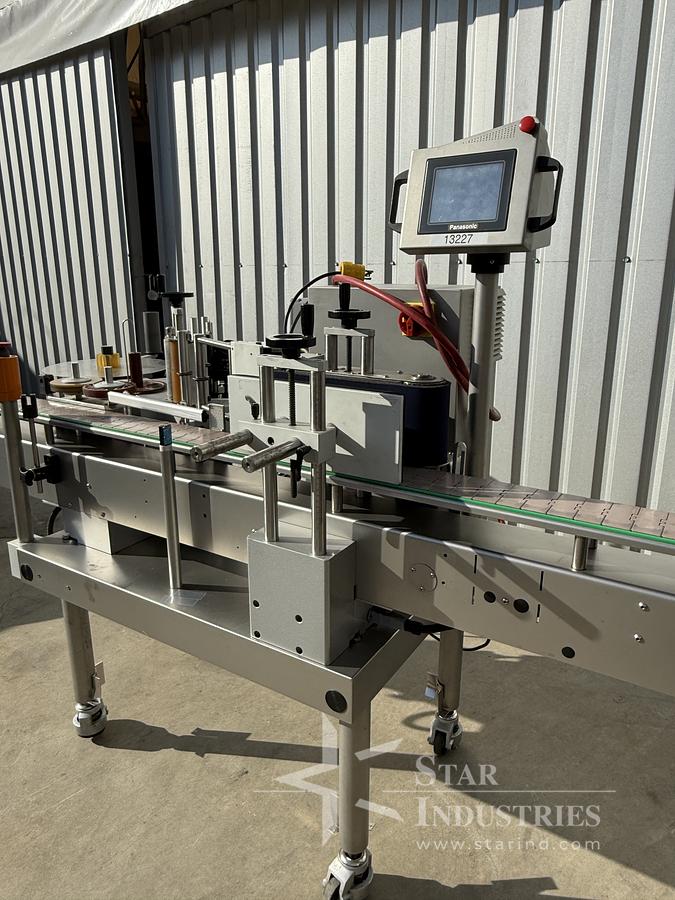

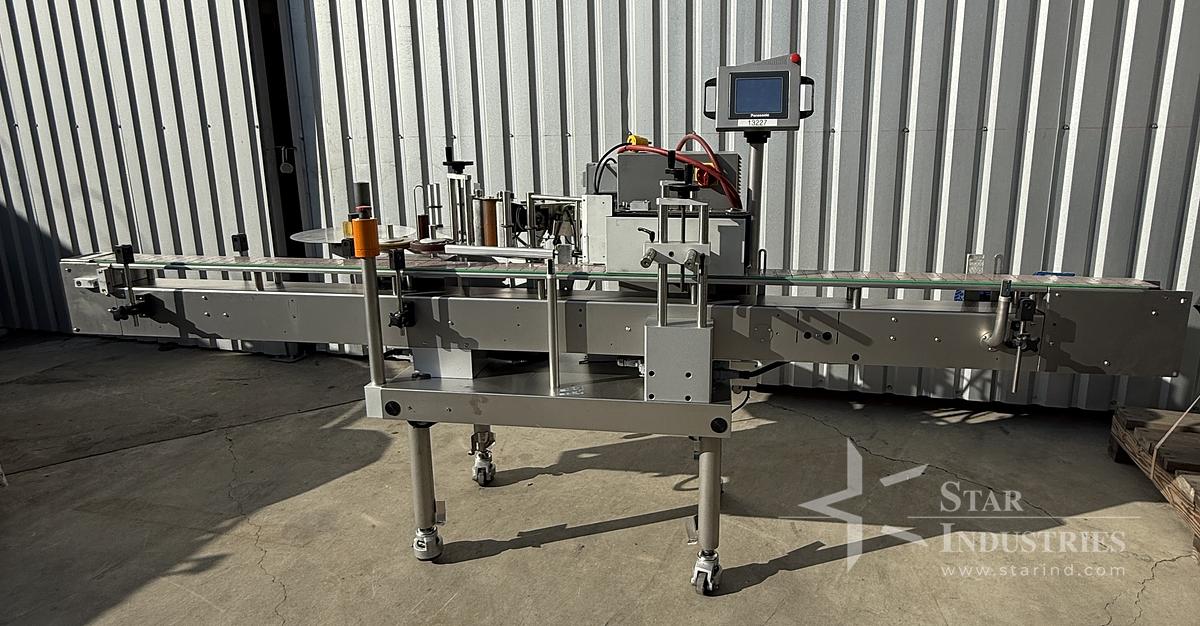

Used CVC Wrap- Around labeler, Model 302C

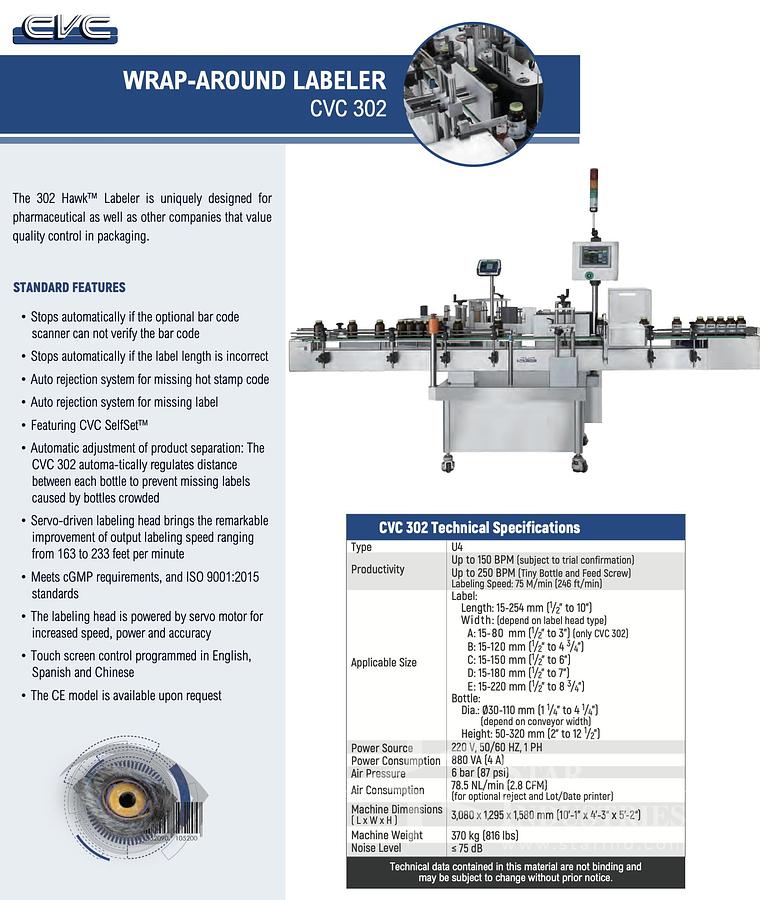

Standard Features :

• Stops automatically if the optional bar code scanner can not verify the bar code
• Stops automatically if the label length is incorrect
• Auto rejection system for missing hot stamp code
• Auto rejection system for missing label
• Featuring CVC SelfSet
• Automatic adjustment of product separation: The CVC 302 automatically regulates distance between each bottle to prevent missing labels caused by bottles crowded
• Servo-driven labeling head brings the remarkable improvement of output labeling speed ranging from 163 to 233 feet per minute

Productivity Up to 150 BPM (subject to trial confirmation)

Up to 250 BPM (Tiny Bottle and Feed Screw)

Labeling Speed: 75 M/min (246 ft/min)

Applicable Size Label: Length: 15-254 mm (1⁄2" to 10")

Width: (depend on label head type)

A: 15-80 mm (1⁄2" to 3") (only CVC 302)

B: 15-120 mm (1⁄2" to 4 3⁄4")

C: 15-150 mm (1⁄2" to 6")

D: 15-180 mm (1⁄2" to 7")

E: 15-220 mm (1⁄2" to 8 3⁄4")

Bottle: Dia.: Ø30-110 mm (1 1⁄4" to 4 1⁄4")(depend on conveyor width)

Height: 50-320 mm (2” to 12 1⁄2")
